Telescopic Oven Shelf (right-hand oven)

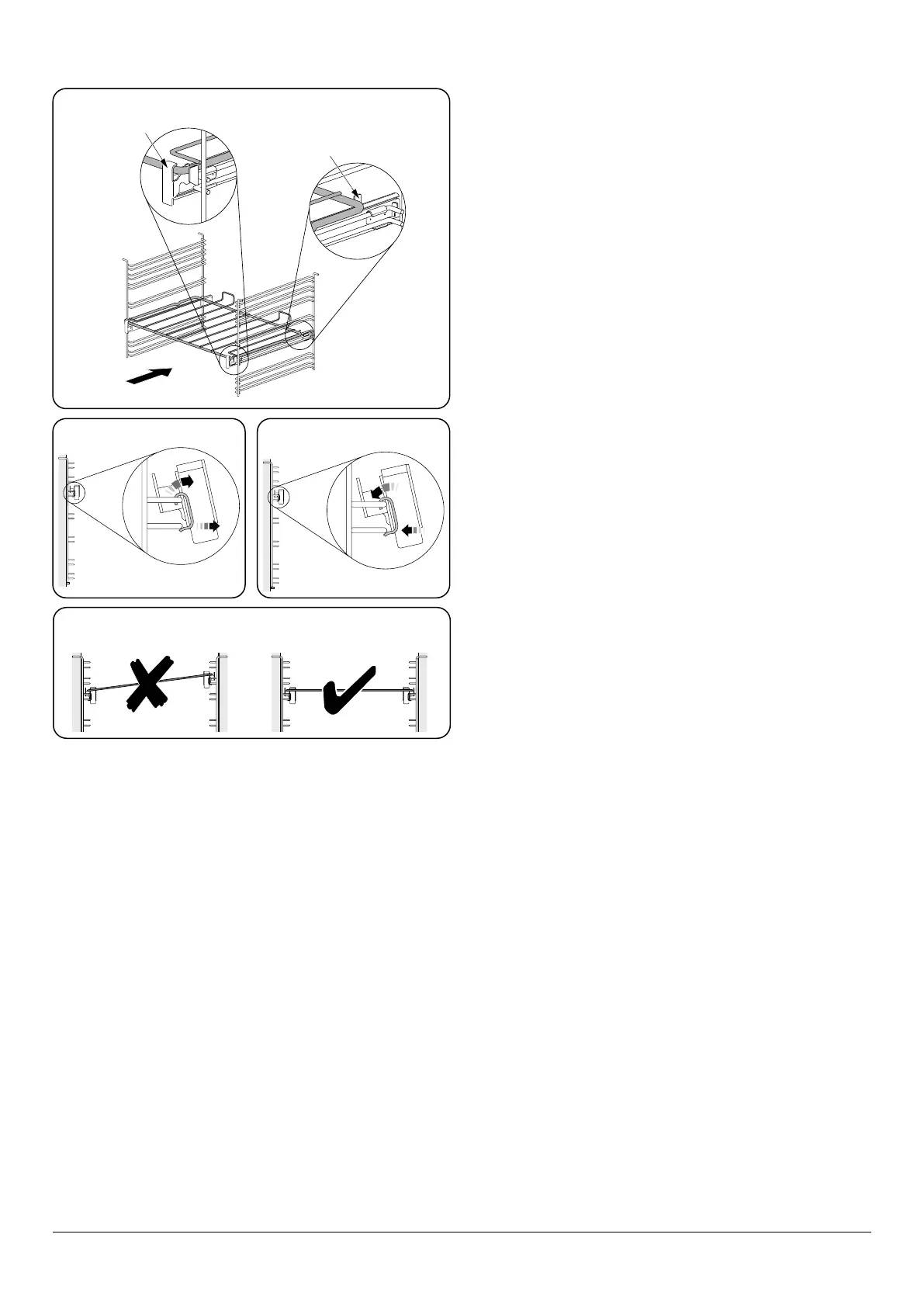

To t the glide-out shelf, hook the front of the shelf onto the
runners as shown (Fig. 2.28). The rear of the shelf should rest
on the runners, in front of the rear stop (Fig. 2.28).
The glide-out shelf and runners can be easily removed or
repositioned.
To remove the glide-out shelf
Raise the rear of the shelf, so that it clears the rear stops. Then
unhook from the front locating bracket.
To remove the glide-out runners
Twist to unclip the base of the runners from the shelf
supports. Then unhook the runner from the top rung of the
shelf support and remove (Fig. 2.29).
To refit the glide-out runners
Hook the rear of the runner over the top rung of a pair of shelf
supports. Then hook the front of the runner onto the same
rung. Push to clip under the bottom rung (Fig. 2.30).
Ensure that the shelf runners are tted in the same position
on each side (Fig. 2.31).
The front of the shelf runners can be identied by the bracket
(Fig. 2.28).
n
DO NOT put the glide-out shelf runners in a
dishwasher.
Fig. 2.28
Fig. 2.29
1
2
FRONT
Rear stop
Front
bracket
2
1
Fig. 2.30
Fig. 2.31
