Rangemaster ELS110DFF - Accessories; Telescopic Shelf Right-Hand Oven

16
4. Accessories
Fig. 4.1
Fig. 4.3 Fig. 4.2

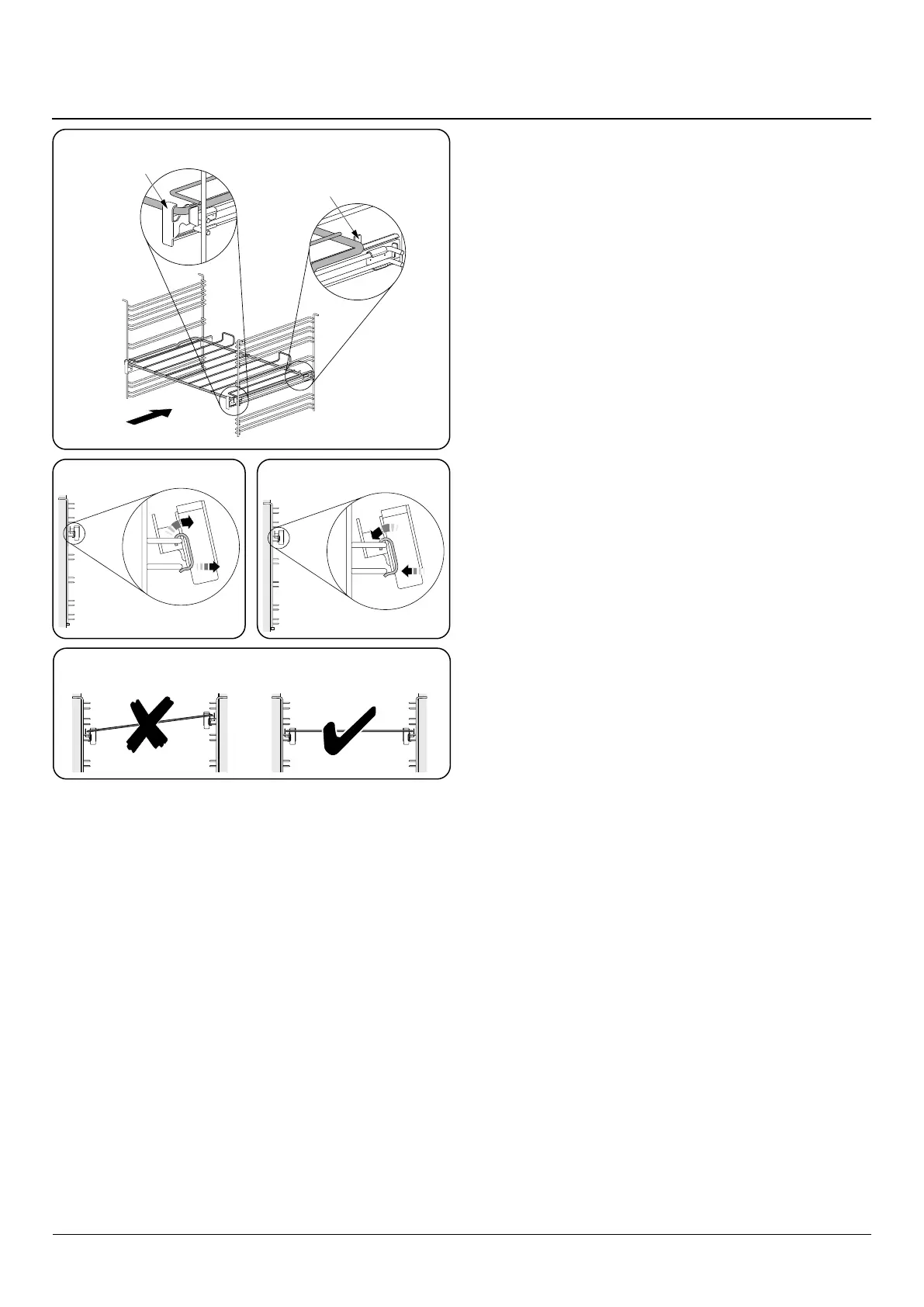

Telescopic Shelf right-hand Oven
The rungs on the shelf supports are in pairs. The glide-out
shelf runners can be tted to any pair except the top.
To t the glide-out shelf runners
Hook the rear of the runner over the top rung of a pair of shelf
supports. Then hook the front of the runner onto the same
rung. Push to clip under the bottom rung (Fig. 2.33).
The front of the shelf runners can be identied by the bracket
(Fig. 2.33).
Ensure that the shelf runners are tted in the same position
on each side (Fig. 2.32).
To t the glide-out shelf
Check the shelf runners are secure before tting the glide-out
shelf.
Hook the front of the glide-out oven shelf onto the runners
as shown (Fig. 2.33). The rear of the shelf should rest on the
runners, in front of the rear stop (Fig. 2.33).
Ensure that the shelf sits at once in position.
n
DO NOT put the glide-out shelf runners in a
dishwasher
1
2
FRONT
Rear stop
Front
bracket
2
1
Fig. 4.4
