DST-64T / DST642D Wheel Balancers 16 P/N 5900192 — Rev. F — March 2021
To attach the four Plugs with to the four three pin Connectors on the
bottom row
, match the color
code of the Plug to the same color code of the Connector and attach them.
Installing the Display Panel
The Display Panel shows information about, and lets you control, the balancing of a Wheel.
To install the Display Panel:
Locate the Display Panel and the Display Panel Mount Bar.
Remove the four Hex Bolt, Split Lock Washers, and standard Washers on the back of the
Balancer.
Find the seven Plugs on the end of the wires coming down from the Display Panel.
Put the Display Panel Base Plate next to the hole in the back of the Balancer and hold it there.

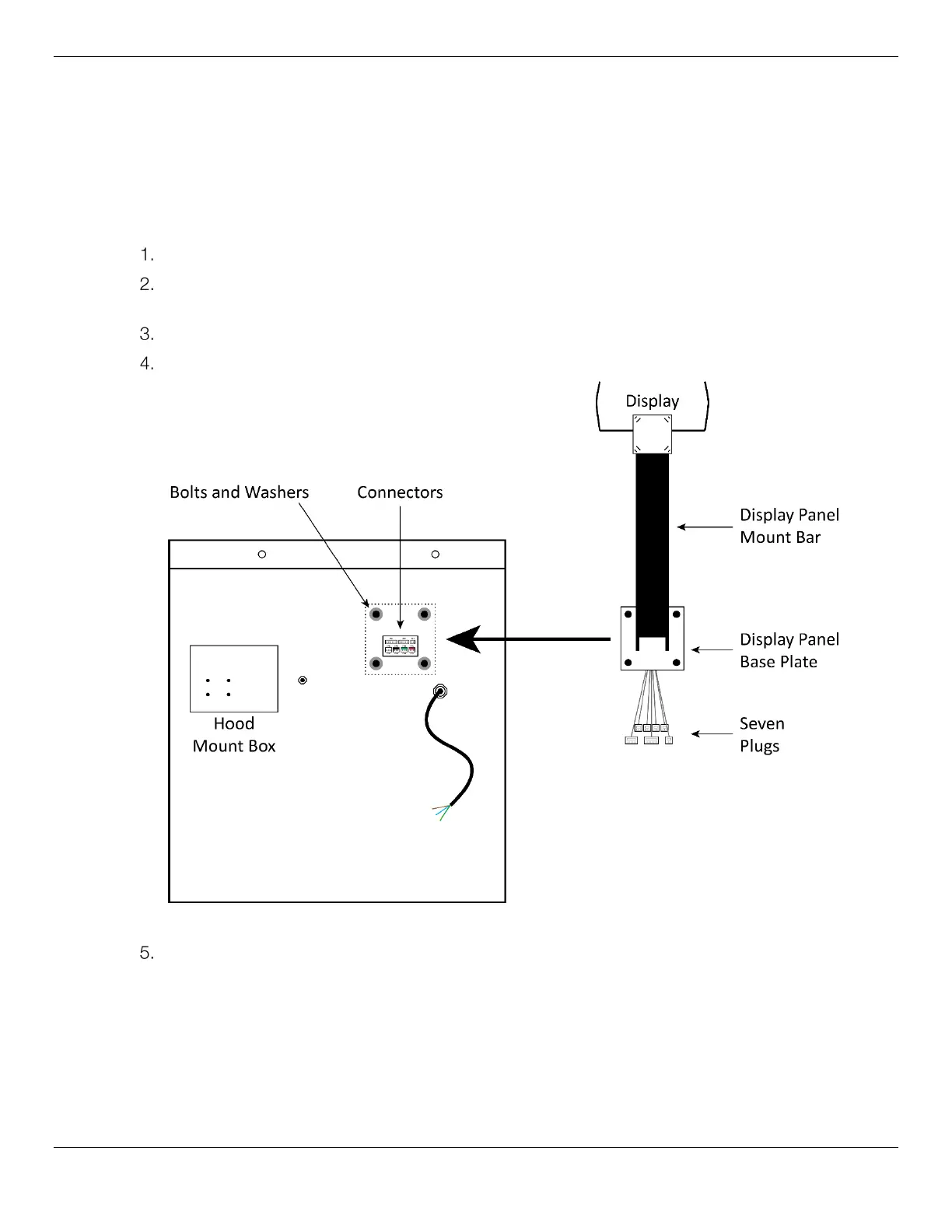

Not to scale. Not all components shown.
Match the seven Plugs with the correct Connectors and plug them in.
NOTE: All seven connectors have a locking tab that snaps into the mating plug. This prevents the
connector from working loose over time. Plugs are to be connected in one direction only. If the
plug can be easily removed from the connector, it is not installed correctly. Rotate the Plug 180
degrees and try to connect again.
See About Display Plugs and Connectors for additional information.
Verify
all seven Plugs and Connectors are correctly engaged. If they are easily removed then they
are not installed correctly.
To Next Page
