DST-64T / DST642D Wheel Balancers 15 P/N 5900192 — Rev. F — March 2021
About the Display Plugs and Connectors
There are seven Plugs that must be connected to seven Connectors on the back of the Balancer. The
Connectors are accessible through a hole on the back of the Balancer. The Plugs are on the ends of
wires that come down from the Display Panel. All seven connectors have a locking tab that snaps
into the mating plug to prevent it from working loose over time. Plugs are to be connected in one
direction only. If the plug can be easily removed from the connector, it is not installed correctly.
The seven Connectors are arranged in two rows, three Connectors on the top row, four Connectors
on the bottom row (see the diagram below).
The three Connectors on the top row all have a different number of pins, so to connect them you
match the number of opening in the Plugs to the number of pins on the Connectors and attach them
appropriately. The Connectors are, from left to right, CN6, CN2, and CN1. The Connectors on the top
row are not color coded, nor are the Plugs that attach to them.
The four Connectors on the bottom row all have three pins. They are labeled, from left to right, CN5,
CN4, CN8, and CN3. Note that they are labeled above and below.
⚠ WARNING The Balancer will not work correctly until all of the Plugs and Connectors are
attached correctly.

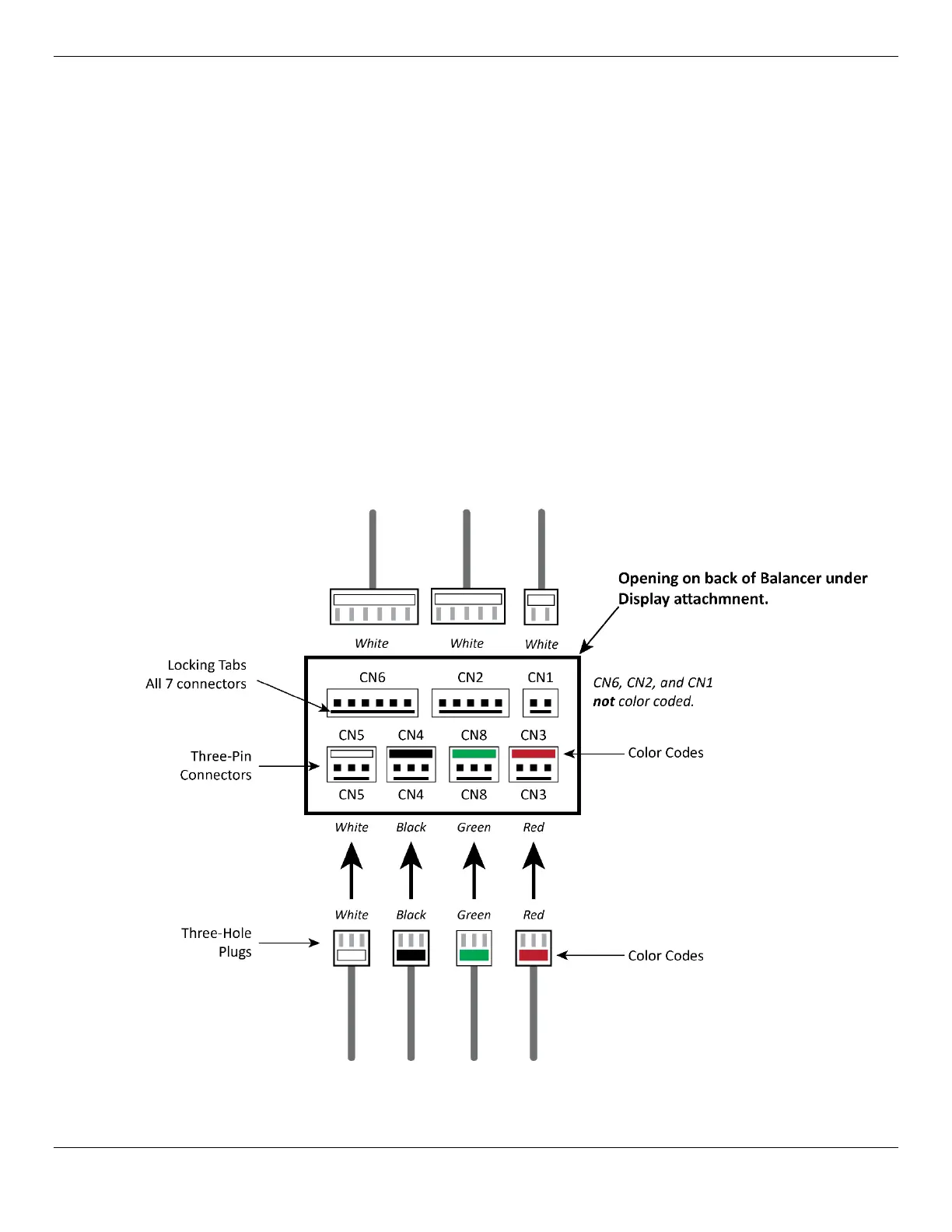

The following diagram details the Plugs and Connectors.
To attach the three Plugs to the three Connectors on the
top row
, match the number of holes in the
Plug to the same number of pins in the Connector and attach them.
