About Planes

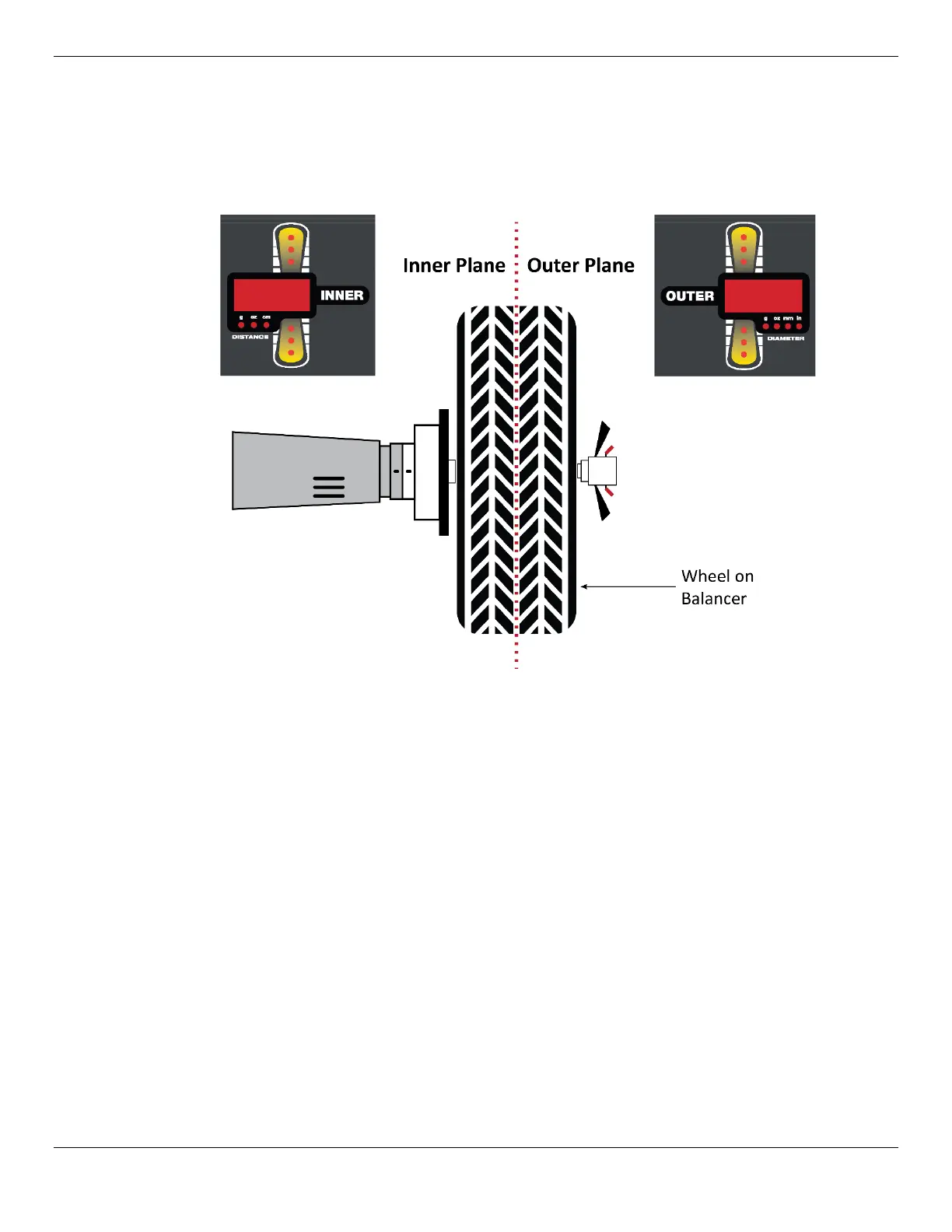

If you were to split a Wheel down the center (as shown below), it would be split into two “Planes”, an
Inner plane and an Outer plane.
Balancing a Wheel on
both planes at the same time is the most effective method. Of the Balancing
Modes supported by the Wheel Balancer, four of them balance on two planes at the same time.
The two Static Modes are included for thin, automobile Wheels and motorcycle Wheels, which are not
big enough to be balanced on both planes at the same time.
The Display Panel shows a two-plane view of the Wheel being balanced.
The Inner “Plane” is on the left and the Outer “Plane” is on the right.
The INNER Window shows how much weight to place on either the Inner Edge or the Inner Plane
weight locations.
The OUTER Window shows how much weight to place on either the Outer Edge or the Outer Plane
weight locations.
The Placement Indicators, six vertical LEDs per Plane, all light up when the best weight location is
reached.
