DST-64T / DST642D Wheel Balancers 30 P/N 5900192 — Rev. F — March 2021
Mounting a Wheel
When you want to balance a Wheel, the first step is to mount it on the Shaft.
Important: All Wheels should be mounted so that the inside (the side of the Wheel that goes
closest to the Vehicle) goes on the Shaft first.
There are three ways to mount a Wheel onto the Shaft:

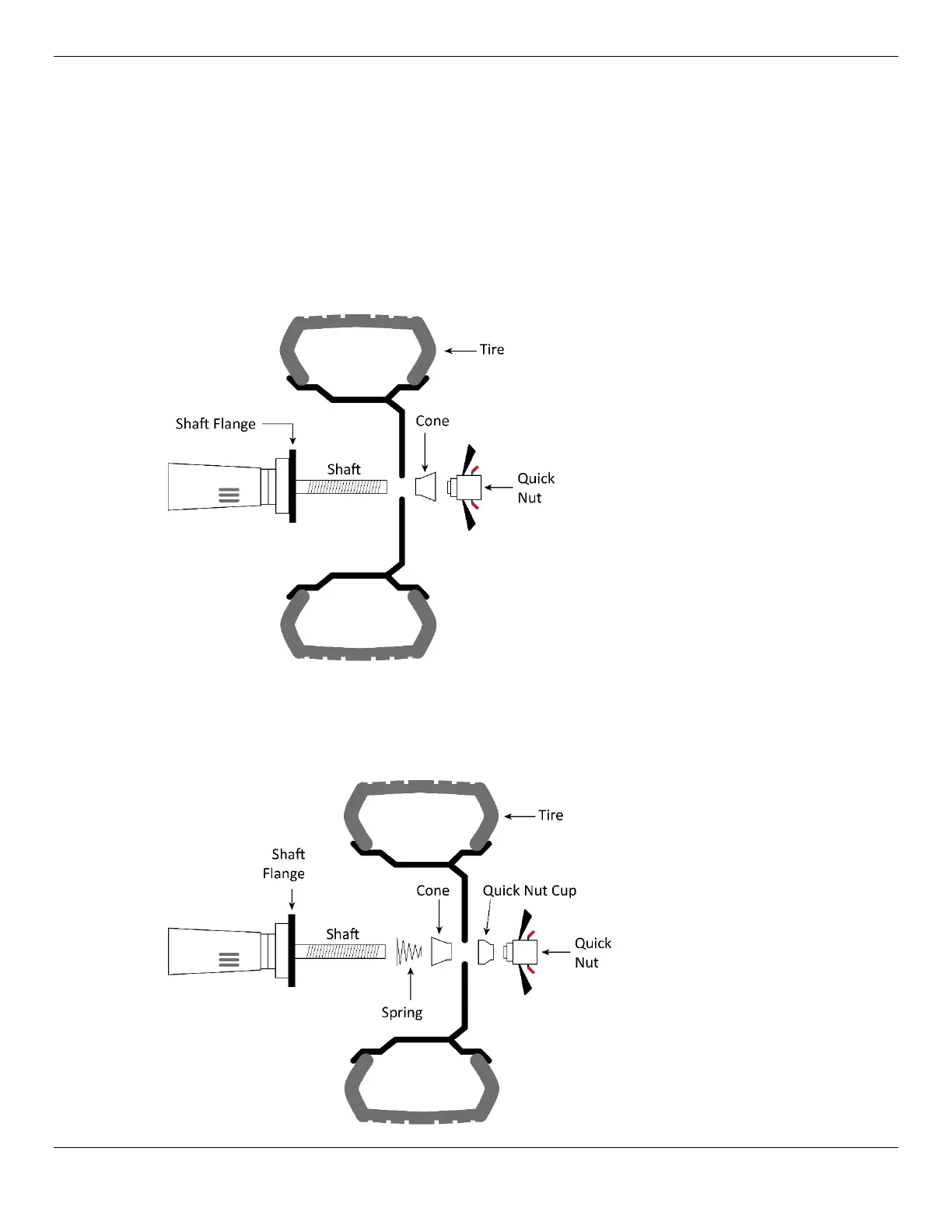

• Front-Cone Mounting. The preferred method, as it generally produces the most accurate
balancing results.
An appropriately sized Mounting Cone goes on after the Wheel, then the Quick Nut.
• Rear-Cone Mounting. Use this method if the Wheel you are balancing cannot be mounted with
Front-Cone Mounting.
The Spring goes on first, then an appropriately sized Cone, the Wheel, the Quick Nut Cap, and
finally the Quick Nut.
