Installing the Shaft
The Shaft holds the Wheels you are balancing.
Tip BendPak Ranger recommends having
rags nearby
; the Shaft comes greased to
protect it during transport. It’s not ‘if’ you are going to get grease on you, but ‘when’.
To install the Shaft:
1. Locate the Shaft Assembly and the Mounting Bolt from the parts supplied with the Balancer.
The Shaft Assembly ships with the Mounting Bolt inside the Threaded Shaft.
2. Clean the Shaft Assembly by removing the shipping grease and any dirt that has accumulated.
3. Put the Shaft Assembly into place next to the Shaft Housing and hold it there.
Note: We recommend aligning the Alignment Marks
before
putting the Shaft Assembly into
place.
4. Put the Mounting Bolt into the end of the Threaded Shaft and begin tightening it.

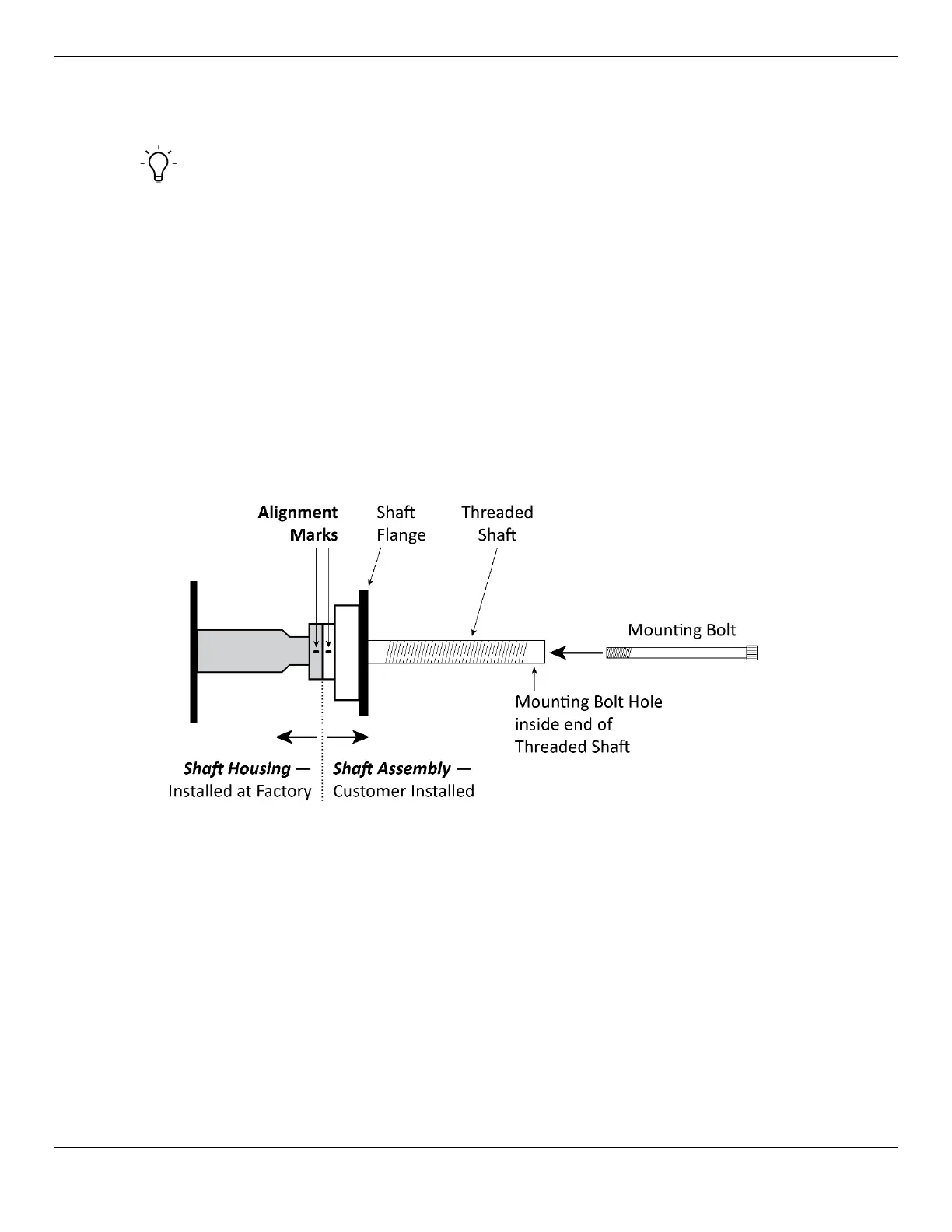

5. Before fully tightening the Mounting Bolt, make sure the Alignment Marks are aligned (see drawing
below).
Not necessarily to scale. Not all components shown.
6. Securely tighten the Mounting Bolt into place.
To Next Page
