DST30P Wheel Balancer 43 P/N 5900163 — Rev. C1 — March 2020
Wiring Information
The Balancer comes with a Power Cord with three exposed wires. The three exposed wires need to
be hard-wired to the facility’s power system
or
connected to a 220 VAC or 110 VAC Plug, which is
then connected to an appropriate power outlet.
⚠ DANGER All electrical work, such as hard-wiring the Balancer to the facility’s power system
or attaching a Plug to a Power Cord,
must be done by a licensed, certified
Electrician
in accordance with all applicable local electrical codes. Damage to the
unit caused by improper electrical installation voids your warranty.
The Balancer comes with a Power Cord but
not
a Plug; you or your Electrician must supply one.

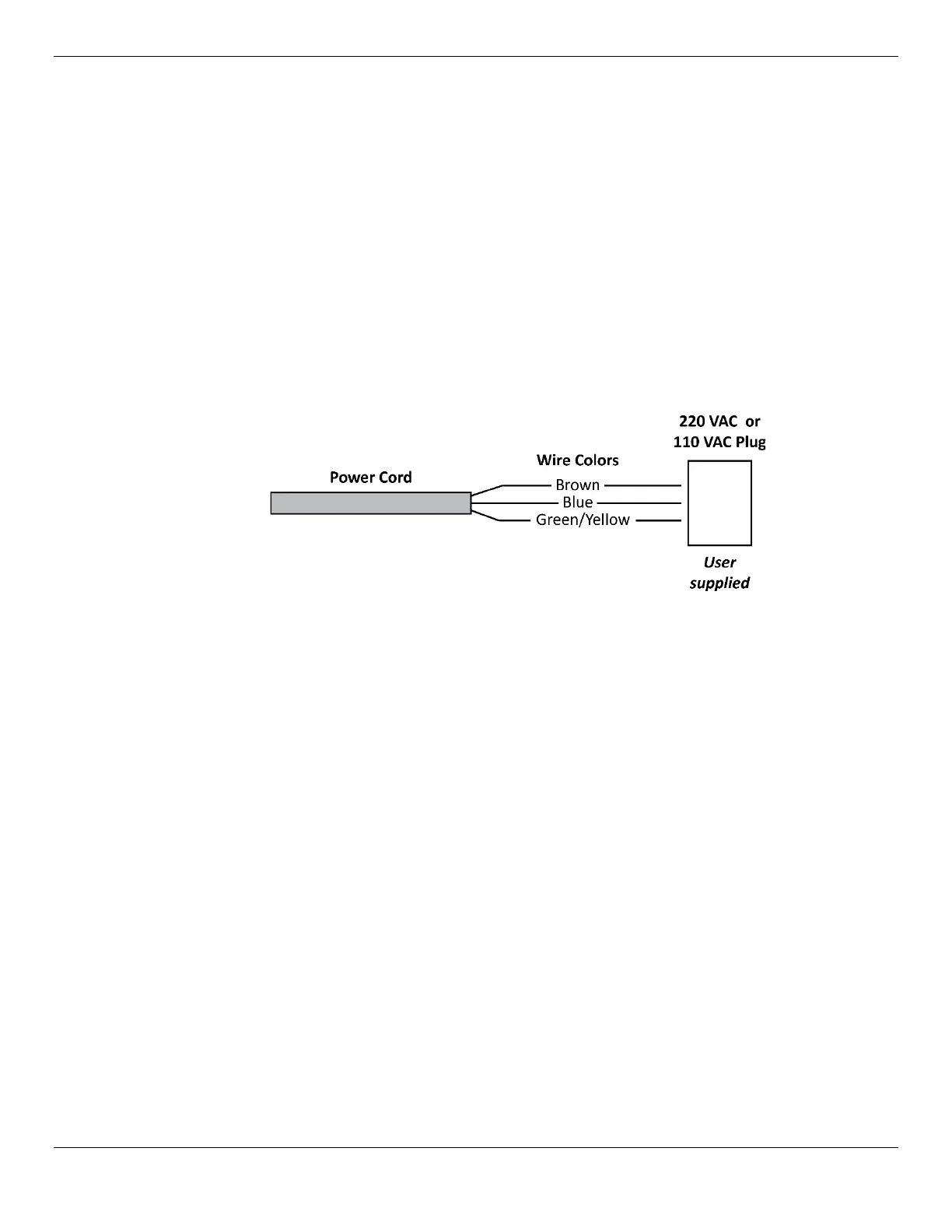

The colors of the three exposed wires coming out of the Back of the Balancer are Brown, Blue, and
Green/Yellow, the European color code. Note that the Green/Yellow wire can sometimes appear
almost all Green, with very little yellow.
Important: To connect the three exposed wires to an appropriate Plug or to hard wire them to the
facility’s power system, have your Electrician follow all local electrical codes and the
electrical codes for the country you are in.
If you are using the unit in the United States, the color codes on the wiring that comes with the
Balancer correspond to:
• Brown: Live
• Blue: Live
• Green/Yellow: Ground
If you were using the unit in a European country, the color codes on the wiring that comes with the
Balancer correspond to:
• Brown: Live
• Blue: Neutral
• Green/Yellow: Ground
Information about color code conventions in other regions and countries is available online. Make sure
your Electrician installs the Plug or hard wires the Balancer in accordance with all applicable local
electrical codes.
