DST30P Wheel Balancer 6 P/N 5900163 — Rev. C1 — March 2020

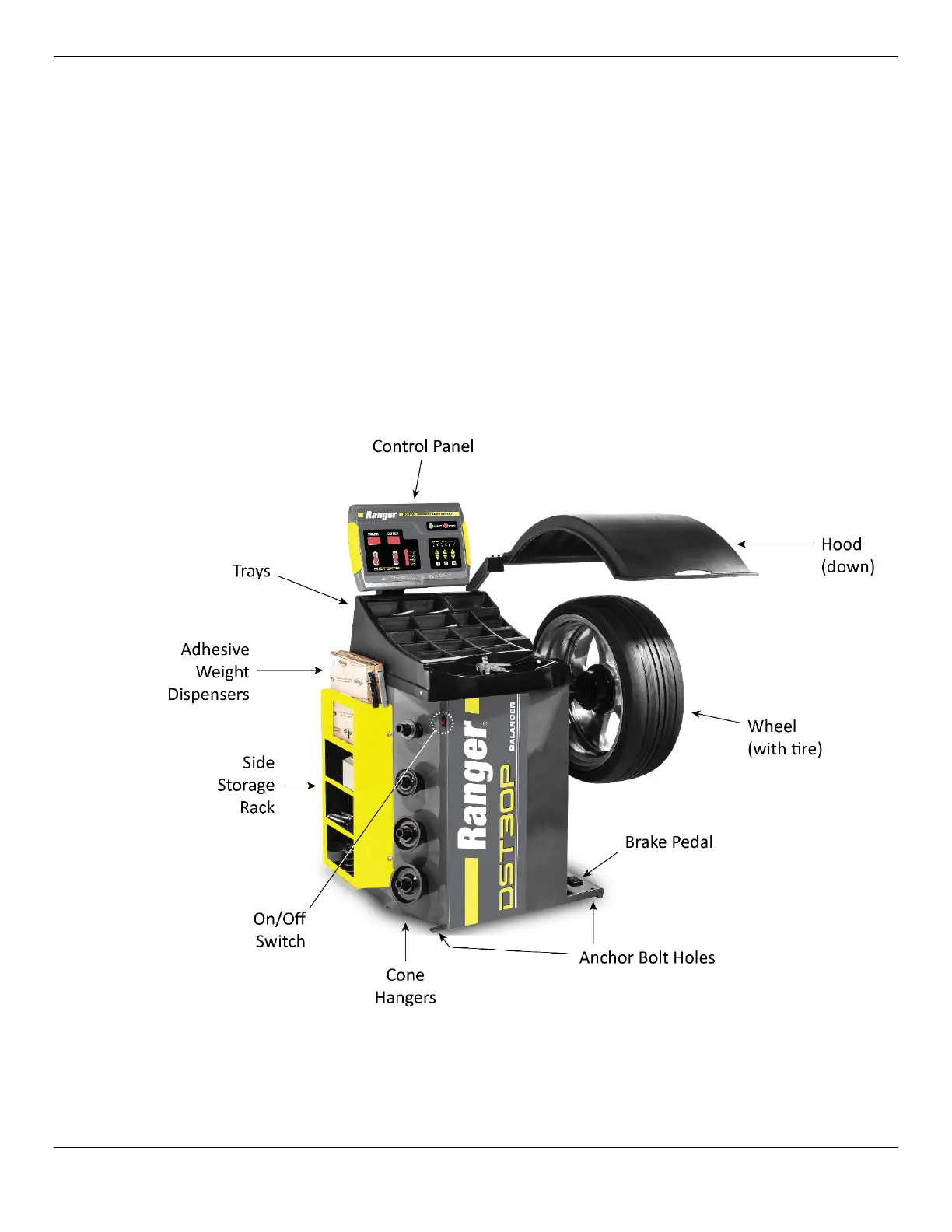

Components
Balancer components include:
• Control Panel. Controls the Balancer and displays information.
• Hood. Covers the Wheel while it spins. Lowering the Hood starts the Wheel spinning.
• Inner Arm / Distance Ruler. Pulls out to measure the distance from the side of the Balancer
to the Inner Edge of the Wheel. Includes a ruler that shows distance in Centimeters.
• On/Off Switch. Turns the Balancer on and off.
• Trays. Storage for Clip-On Weights and other items you want to have handy.
• Adhesive Weight Dispensers. Dispenses your Adhesive Weights.
• Side Storage Rack. Holds more items you want to have handy.
• Cone Hangers. Hold your Mounting Cones when not in use.
• Anchor Bolt Holes. Used to anchor the Balancer to the ground.
• Brake Pedal. Step on to hold the Wheel in place.
The Inner Arm/Distance Ruler is not visible in this view.
