Part No. Description
3 25101 Base
4 25102 Base Plug
5 25103 Base O-Ring
6 25104 Base mounting plug
8 F081 Bowl Bolt 1/4"-20 x 2 S/S Hex head
9 RNI Nylon Shoulder Washer
10 1226B Nut, 1/4"-20 S/S (8)
12 1208W Retractable handle
13 1236E Bowl Elbow
14 CH43P Hose Clamp (2)
15 CH42 Hose (¾" I.D.)
19 F408 Screw: 1/4-20 x 5/8
20 1200CW Pump Housing
21 1214W Piston Shaft Seal Cartridge Assy (1214,
1214A, 1214B)
23 1214A Cartridge Shaft seal
24 1214B Cartridge O-ring
25 1203BW Intake Valve Body w/"O" Rings,
(Includes 1203B, 1203B1, 1203B2, 1203B3)
29 1204B Intake Valve Cap
30 1202 Intake and Discharge Valve Gasket (2)
31 1209BW Valve Handle
32 1124 1/4"- 20 x 1/2" R.H. Machine Screw

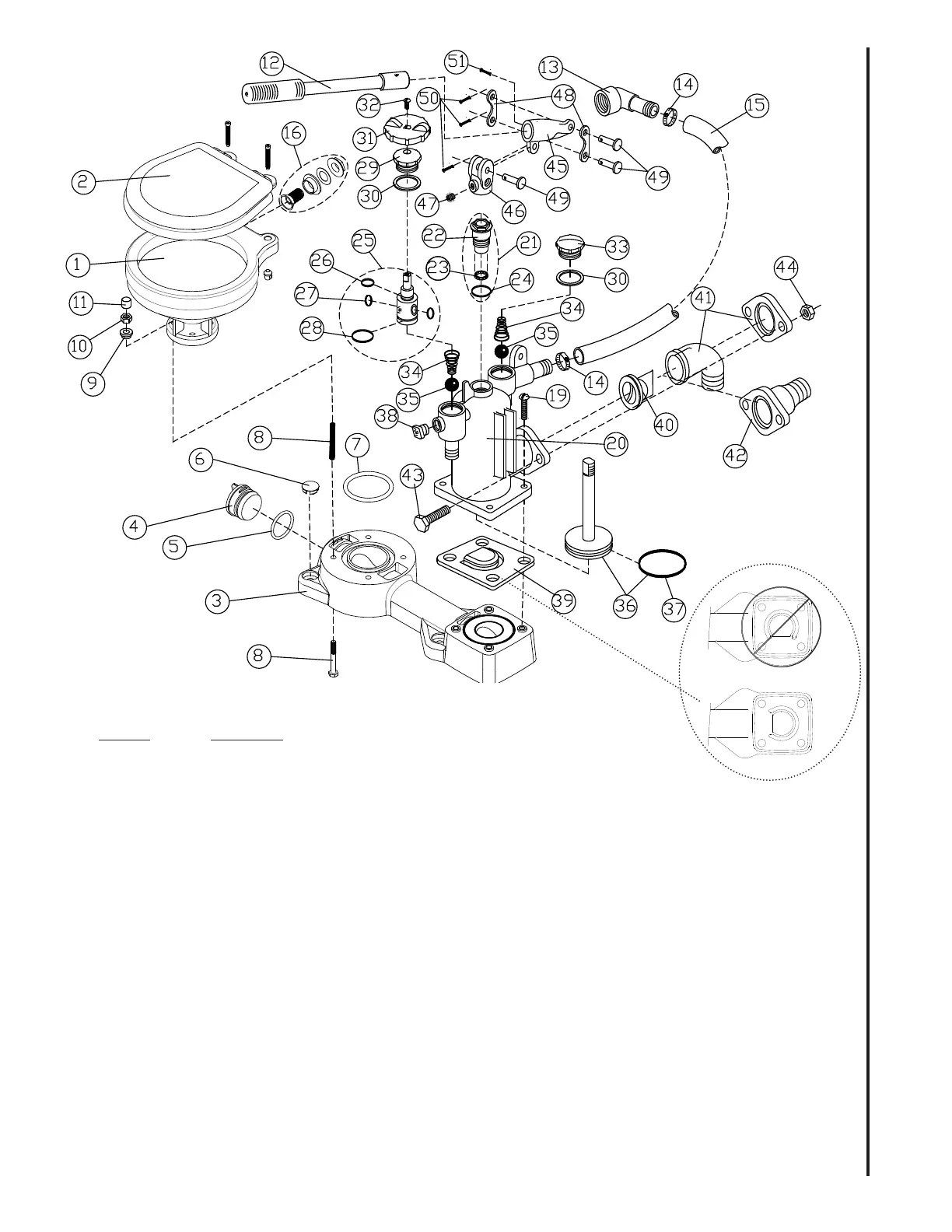

PARTS LIST
33 1217 Discharge Valve Cap
34 LWS Intake and Discharge Valve Spring (2)
35 1201 Intake and Discharge Valve Ball (2)
36 1212W Piston Rod Assembly w/"O" Ring
(1232MS)
37 1232MS Piston "O" Ring
38 1203W Air Valve Assembly
39 1228CA Flapper valve with embedded weight
40 C253 Joker Valve
41 1222AW 90° Discharge w/Flange (Std.)
42 1222B Straight Discharge (Opt.)
43 1115 3/8"-16 x 1 1/2" Hex Head S/S Bolt(2)
44 1223B Flange Nut 3/8"-16 S/S (2)
45 1210 Handle Socket
46 1211PL Piston Rod Yoke
47 F005 1/4" - 20 x 5/16" S/S set screw
48 1218 Fulcrum Link (2)
49 1216 Clevis Pin (3)
50 1210A Cotter Pin
SEE PAGE 6 for additional parts listing
PARTS FOR RARITAN PH SUPERFLUSH
L563 0316kgs
Correct Orientation of
Flapper Valves
WRONG!
