Rath Command Center User Manual

Items Needed
Included
• Command Center Phone (will be mounted in a cabinet
or include a desk mount stand for desk mount)
• Distribution Module
• System wiring (pigtail cables, power cord, phone
line cord, and Ethernet cable)
• 1/8” Hex Allen Wrench (cabinet mount only)
Page 3
Not Included
• Network Switch (POE+ recommended)
• Router
• Windows laptop
• Minimum 22 or 24 AWG twisted, shielded cable for
wiring Command Center to Distribution Module
(unless ordered as an IP Command Center Phone)
• 120vac power
• Multimeter
• Analog phone (recommended for troubleshooting)
• Analog or digital phone line (only if the system needs
call out abilities)
• Small Phillips screwdriver
• Mounting hardware
• Power supply with battery backup (sold separately,
RATH® model RP7700104 or RP7701500)
• 2100 Series IP Emergency Phones (sold separately)

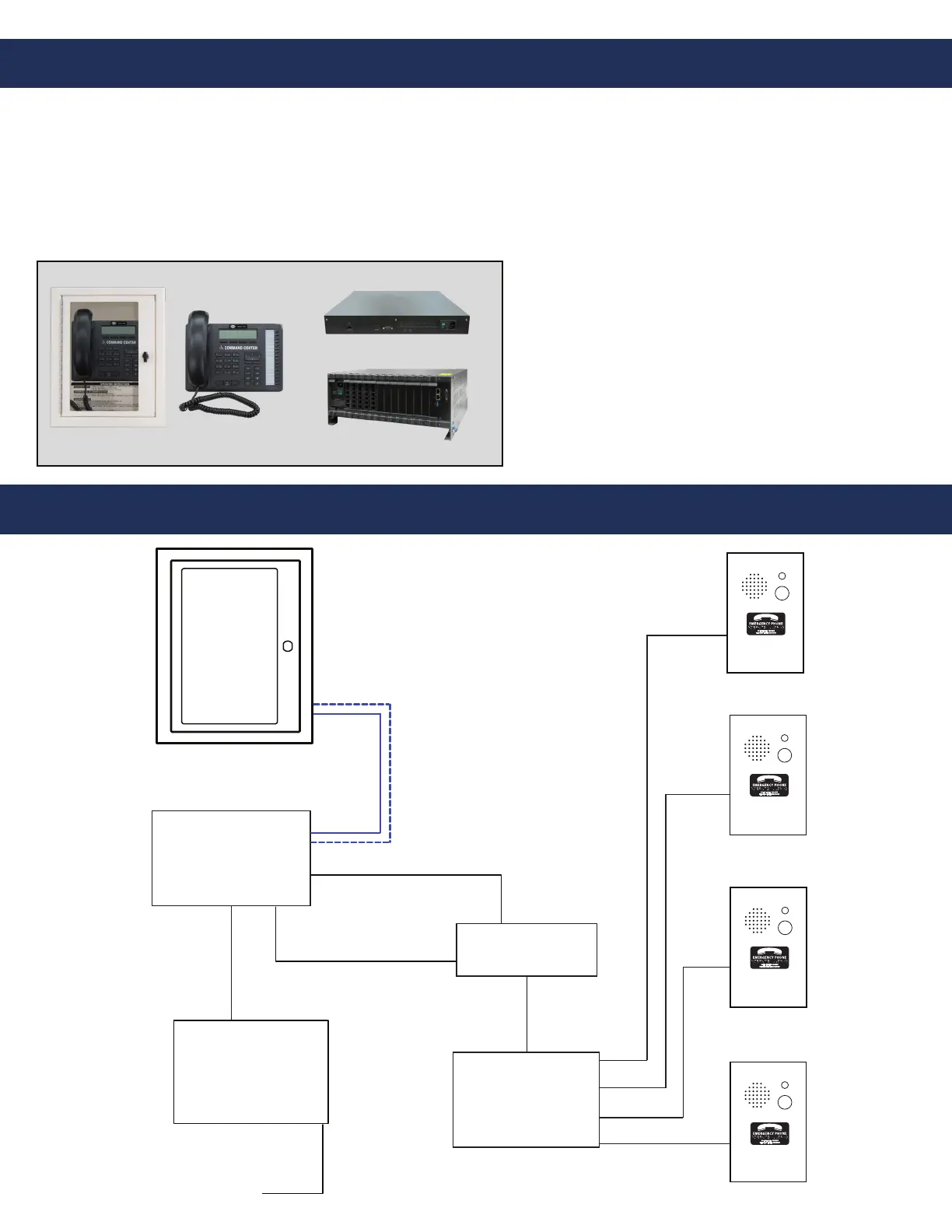

Cabinet Mount Desk Mount
Command Center Options: Distribution Module Options:
10-48 Zone Systems
64-128 Zone Systems
Typical System Layout
Command
Center
Distribution
Module
Power Supply
with UPS
120 Volt Power Connection to
Incoming 120 Volt Power
Router
Connection from
WAN Port on
VoIP Card to
Router
Ethernet from CPU
Card to Router
POE Switch
Each Phone Plugged
into POE port
IP Command Center
Typical System Layout
N56W24720 N. Corporate Circle • Sussex, WI 53089
800-451-1460 • www.RATHCommunications.com
10/19
