Rational CMP 101E User Manual

- 25 - V-09 05/2014
Option

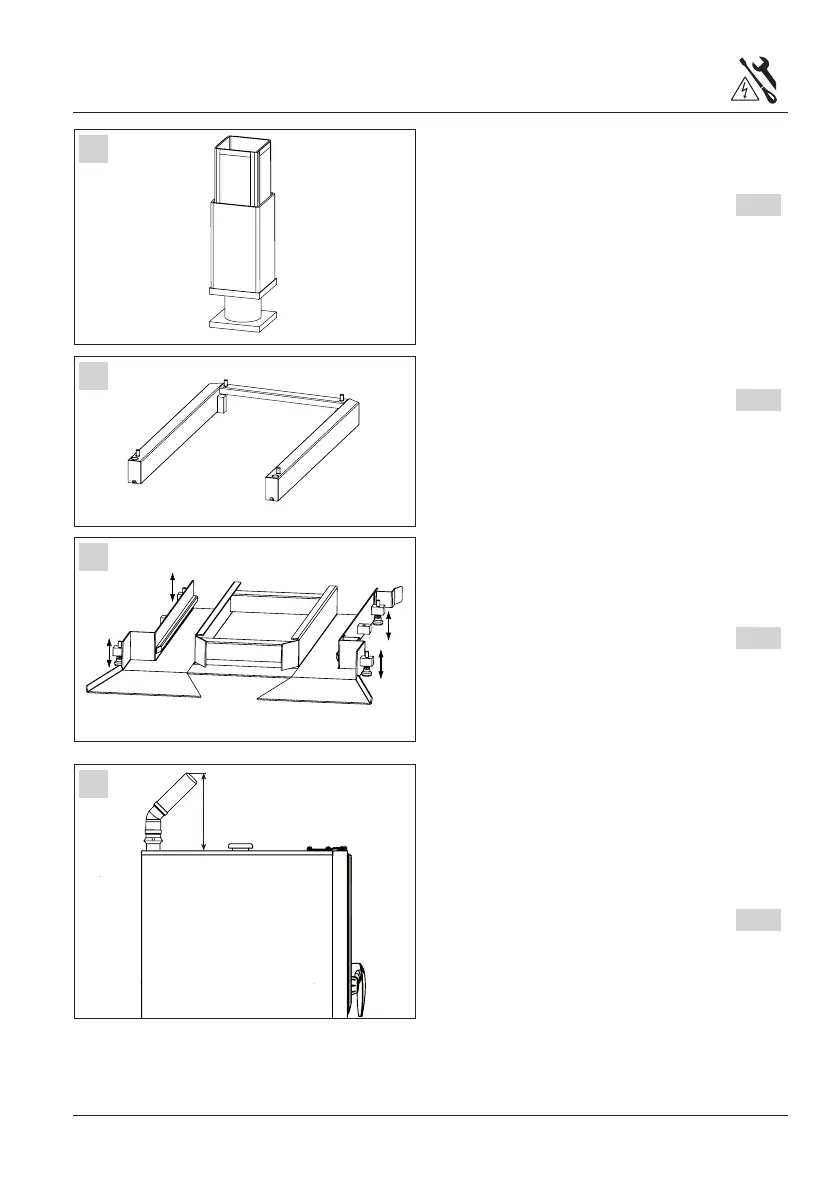

Foot extension for floor units
Should the distance be too low between floor and
bottom of floor units , foot exten sions for floor units
can be used pic 1
Attention: In this case the height of the upper rail
exceeds 63” (1600 mm).
Art.-No.: 60.21.179
When using these foot extensions a height compen-
sation of the mobile oven rack must be carried
out by adding an additional frame. pic. 2
Unit size:
20x1/1 GN Art.-No.: 60.21.184
20x2/1 GN Art.-No.: 60.22.184
Ramp for mobile oven rack floor models
If the floor underneath the unit is not level the
mobile oven rack ramp can level out this
unevenness.
The adjustment range of the legs is between
+/- 1” (10 mm) pic. 3
Unit size:
20x1/1 GN Art.-No.: 60.21.080
20x2/1 GN Art.-No.: 60.22.181
Condensation breaker
Attention:
Extending the unit's vent pipe without using a con-
densation breaker can cause malfunction.
By installing the condensation breaker together with
the enclosed pipes it is possible to guide the steam
to an uncritical area or to the suction area
of a suction system (e.g.vent ceiling) pic 4
The kits contain the following:
Condensation breaker (depends on unit size)
Elbow DN75 with 45° angle (stainless steel)
Pipe DN75, 250 mm long (stainless steel)
Unit size: Art. Number
61, 101, 062: 60.72.591
102: 60.72.592
201, 202: 60.72.593
1
2
3
460mm
(18”)
4
