Water connection
• The unit conforms to the relevant regulations
(DVGW, SVGW, KIWA,WRC)
• The unit can be connected to cold water and to soft water

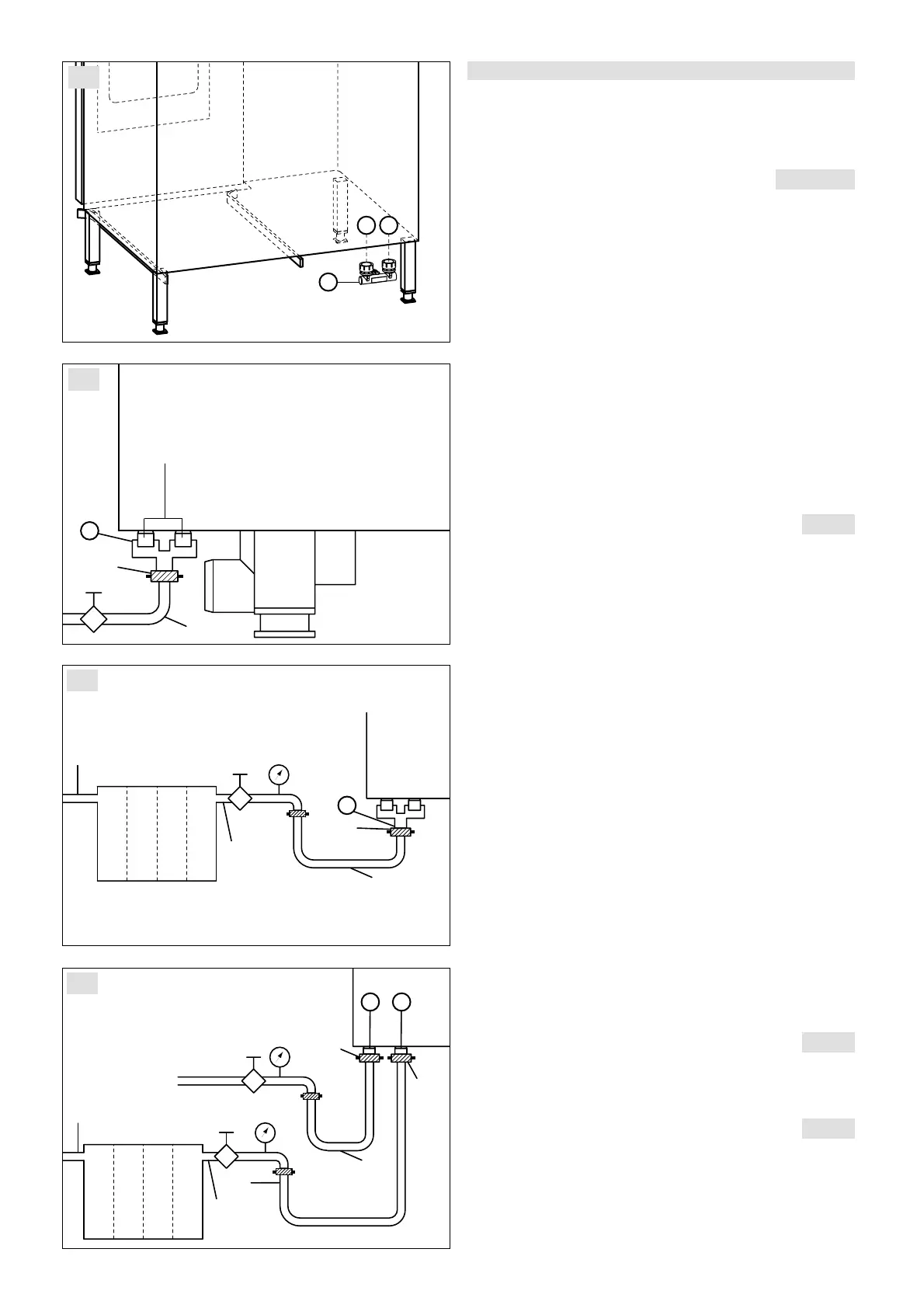

of drinking-water quality. pic. 1,2,3,4
• Rinse the water line before connecting the water supply to
the unit!
• On units fitted with CleanJet
®
, the dynamic water pressure
must be min. 200 kPa or minimum flow volume 12l/min.
• On units not fitted with CleanJet
®
, water pressure
150 kPa - 600 kPa,recommended 300 kPa
• Water cock stop for each appliance (fitted by customer)
• Water conductivity: 50 – 2000 µS/cm.Lower conductivity
on request.
• Maximum chloride concentration (Cl
-
): less than 150
mg/litre
• Chlorine concentration (Cl
2
): less than 0.2 mg/litre (
=
^ppm)
• For the water supply connection we recommend using
hoses with internal Ø 13 mm (Spare part no.: 2067.0709).
Optional soft water connection: pic. 4
Please note that the units have already been prepared at the
factory for connection to a soft water supply. One connection
for steam generator, hand shower and moistener, one
connection for quenching and CleanJet
®
.After removing the
T distributor, connect soft/hot water up to a max. 60 °C to
connection "3”.
Connect normal / cold water supply to connection "2”.
In most cases it is not necessary to install a filter or water
treatment appliance into the water supply line.
The unit's steam generator is equipped with SC-Automatic.
Depending on how much the unit is used, the SC-Automatic
regularly rinses the steam generator out and refills it with
fresh water.This means that the generator does not need to
be descaled so often.
Under extreme water conditions, filters and/or water
treatment appliances should be installed in order to ensure
that the unit functions reliably in the long term and to avoid
corrosion. Depending on the results of the water quality
analysis, the filters can be installed individually or one behind
the other.
A)Particle filter pic. 3,4
When the water contains sand,iron particles or suspended
matter, we recommend you install a 5-15 µm particle filter:
B)Active carbon filter pic. 3,4
When the level of chlorine (Cl
2
) in the water exceeds
0.2 mg/l (= ppm) (information available from the water
company), an active carbon filter must be installed.
R 3/4"
1/2"
1
6x1/1 GN, 10x1/1 GN: 20 l/min.
10x2/1 GN, 20x1/1 GN, 20x2/1 GN: 25 l/min.
R3/4"
1/2"
2 3
150-600kpa
A B C D
R 3/4"
1/2"
max. 60°C
150-600kpa
3/4"
3/4"
CleanJet 200-600kpa
21
R 3/4"
1/2"
150-600kpa
A B C D
1
3/4"
3/4"
CleanJet 200-600kpa
20
2
3
1
19
18
