V-09 05/2014 - 8 -
Transport of units
Transport of units

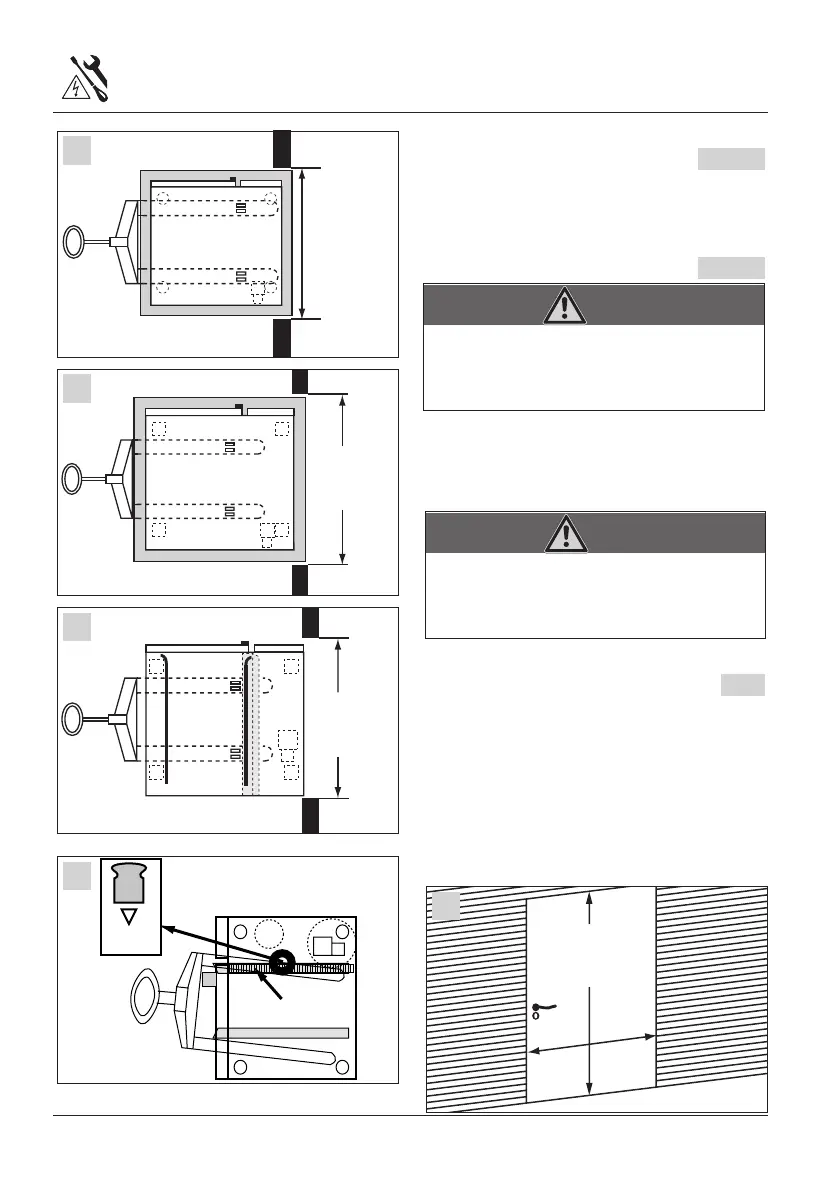

Transport of units using a pallet pic. 1,2
Transport of units without a pallet, 20x1/1 GN and
20x2/1 GN units only. Put a piece of wood between
pallet jack and left guide rail of the trolley
pic. 3,4
Remove all containers/mobile oven racks from the
cabinet. For floor model, remove corner mountings
from the pallet. Carefully take unit off the pallet (do
not twist unit frame).
Weight see technical data on page 23
Observe door height pic. 5
X= Required door width when transporting units
without pallet:
6x1/1GN 33 1/8” (840 mm)
6x2/1GN 41” (1040 mm)
10x1/1GN 33 1/8” 840 mm)
10x2/1GN 41” (1040 mm)
20x1/1GN 36 1/4” (920 mm)
20x2/1GN 45“ (1140 mm)
6x1/1 GN:
920mm/36 1/4"
6x2/1 GN:
1120mm/44 1/8"
10x1/1 GN:
920mm/36 1/4"
10x2/1 GN:
1120mm/44 1/8"
1
20x1/1 GN:
950mm/37 1/2"
20x2/1 GN:
1150mm/45 1/4"
2
20x1/1 GN:
920mm/36 1/4"
20x2/1 GN:
1140mm/45"
3
20x1/1 GN /
20x2/1 GN:
1900mm/75"
X (6x1/1 - 20x2/1GN)
5
2x2", 50x50mm
D
o
o
r
F
r
o
n
t
Center
of Gravity
4
CAUTION
Unit can tilt
Danger of injury
Make sure that the unit is secured against tilting,
when transporting it.
CAUTION
Observe the weight of the units.
Danger of injury
Use carrying aid to avoid injuries.
Wear safety boots.
