RAV TD8060TWS - RAV TD8060TWSR
RAV TD8080TWS - RAV TD8080TWSR
Code M0230 - rev.1.1
(01/2014)
RAVAGLIOLI S.p.A. – 40044 Pontecchio Marconi (BO) Via I Maggio, 3
Tel. (+39) 051/ 67.81.511 – Fax (+39) 051/ 84.64.67
e-mail: rav@ravaglioli.com /http www.ravaglioli.com

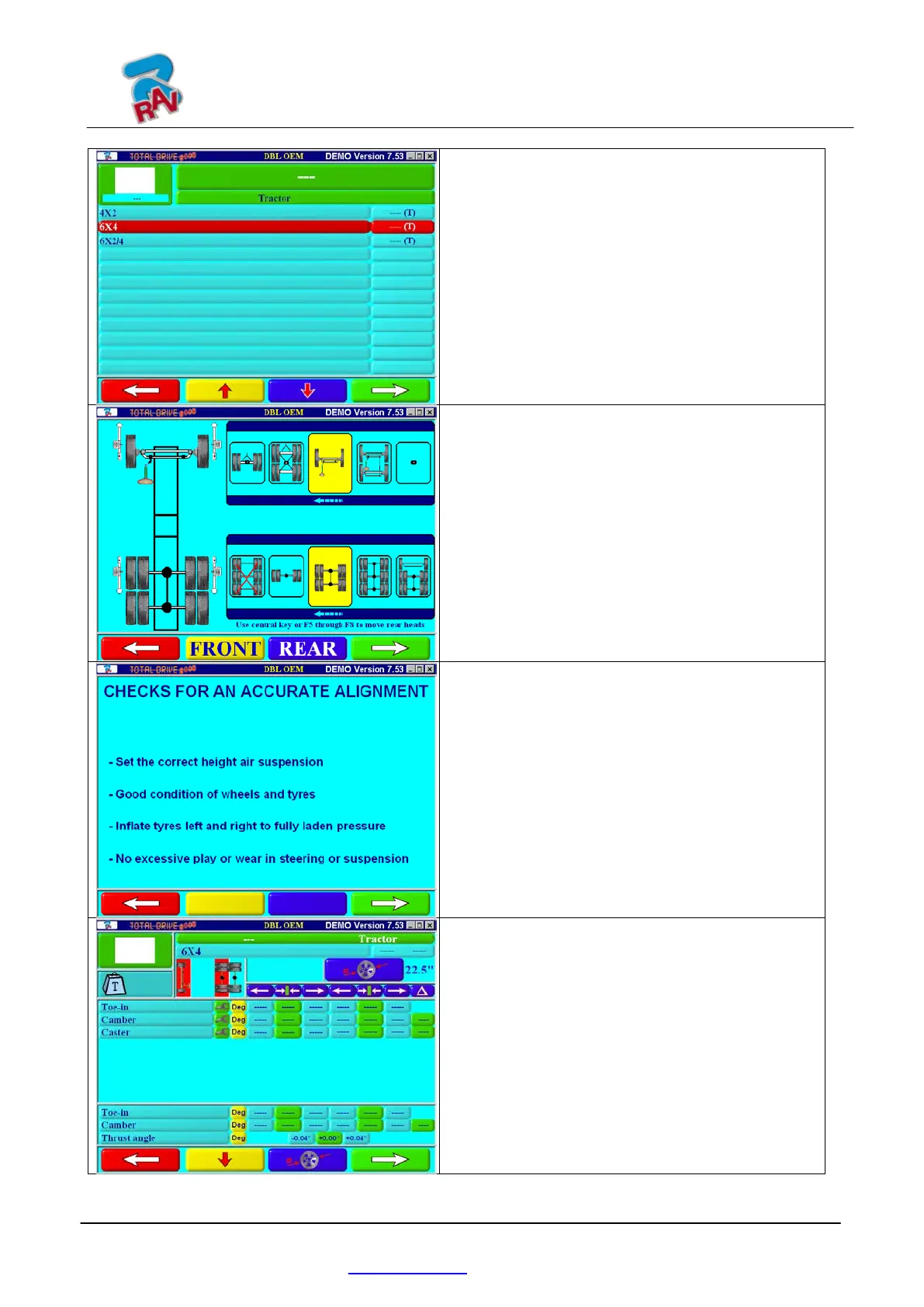

Select e.g. a Tractor 6x4
(6 wheels - 4 wheels engine)
Press F4 to proceed
Confirm with F4 the 3 axle tractor selected.
It is possible to change the rear axle (2
nd
or 3
rd
)
where to start, in order to take it as 2
nd
axle of
basic vehicle.
Press a key from F5 to F8 to change it.
Note: It is also possible to change the type of
tractor now, changing the number of axles by F3
Display of instruction page, wait until
automatically appear the next page or press F4
to skip it
Display of technical data of selected vehicle.
The data displayed are of the 1
st
rear axle, move
the rear axle selected by F2
