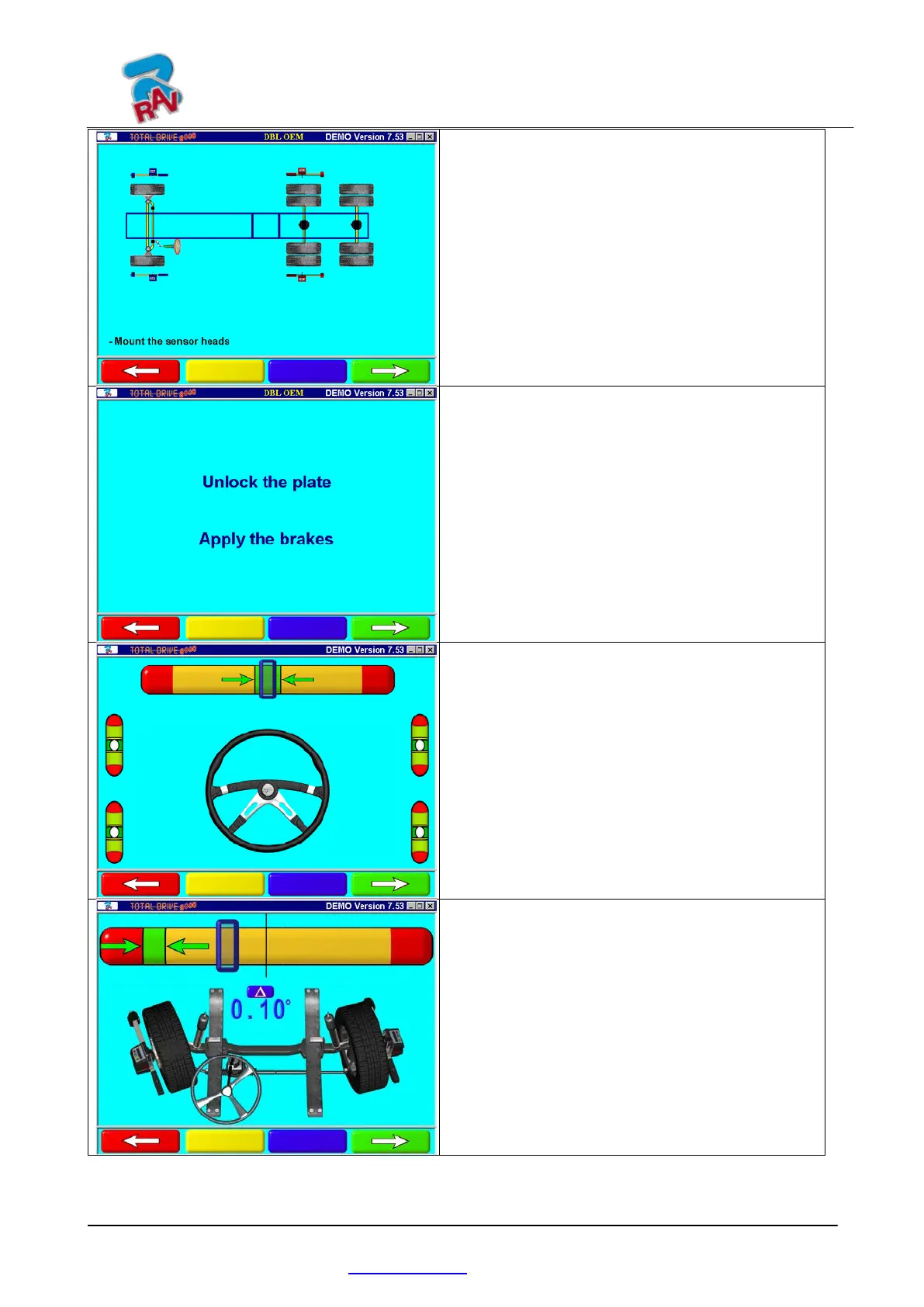

Mount the Front sensor heads in the front axle
Mount the Rear sensor heads in the 1
st
rear axle
(conventionally the Front Sensor are displayed
BLUE and the Rear are RED)
Press F4 to proceed
Note: On next step should be executed the Run
Out. It will be possible anyway to hide it (set in
the configuration parameters).
Unlock the turntables and lock the brake
pedal using the tool provided.
Wait until automatically appear the next page or
press F4 to proceed.
Turn the steering until the wheels are aligned,
meaning until the display unit level is perfectly at
centre.
Regulate the 4 sensors until they are
levelled and
brake them by means of the knobs provided.
Wait until automatically appear the next page
Perform the steering procedure following the
display unit level on the screen, first left then right
then at centre.
The steering procedure can also
be jumped by
F4; the Caster data measurements will not
appear.
