SERVICE MANUAL
RAVAGLIOLI S.p.A.
RAVTD5040WD / 5060WD / 5080WD
RAVTD5080WS - RAVTD1760WS/1780WS
RAVTD1850WS - RAVTD2200WS
Code R0184 - rev.1.2
(01/2011)
Ravaglioli S.p.A. - Via I° Maggio, n° 3 (Frazione di Pontecchio Marconi)
Page 13/22
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 e-mail: rav@ravaglioli.com
2.3 R.M.S. device connection
The R.M.S. (REMOTE MEASURING SYSTEM) device can be fitted to all RAV wheel
aligner models on PC serial port.
If the PC isn’t provided of serial ports, it is possible to use standard RS232 to USB
adaptors.
The number of serial port used have to be entered in the "System
Configuration” settings.
To make the connection, see the installation manual R0075.
2.4 Electronic Turntables STDA43K connection
These turntables communicates with the console through the front Bluetooth
measuring
heads series “WS”. The connector of the electronic turntable (see Figure 21) must be
fitted in the socket on the measuring head.
The option "Electronic Turntables" must be entered in the “equipment configuration”
setting of the "System Configuration" menu.

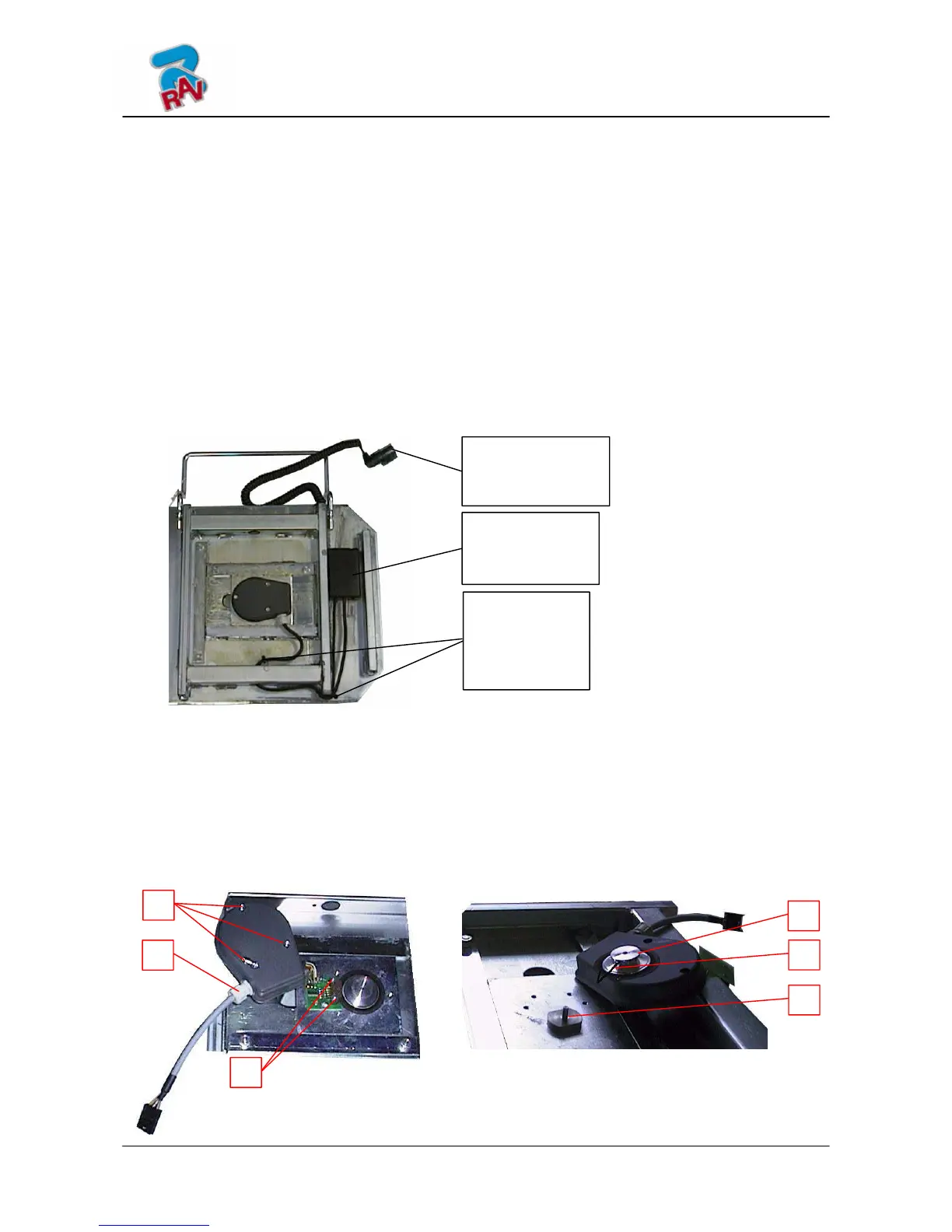

Figure 21
Removing the encoder
: If the turntable with encoder has to be opened, for instance to replace
the plate balls, the encoder device will have to be removed:
Perform the following operations:
- Loosen cable gland “A”
- Remove the 3 screws “B” that secure the cover
- Remove the 2 screws “C” that secure the board with the angular reader
- Remove disc “D” , handling this carefully and trying not to touch its surface; use a 0.9 mm or
0.035 inch socket-head wrench.
- The plate can be opened by removing pin “F”, using a 19 mm wrench
Figure 22
Protect the
connection in
the box provided
Fasten the
cable
harnesses with
plastic clamps
Connector to be
fitted on the
measuring head
A
B
C
D
E
F
