SERVICE MANUAL
RAVAGLIOLI S.p.A.
RAVTD5040WD / 5060WD / 5080WD
RAVTD5080WS - RAVTD1760WS/1780WS
RAVTD1850WS - RAVTD2200WS
Code R0184 - rev.1.2
(01/2011)
Page 20/22
Ravaglioli S.p.A. - Via I° Maggio, n° 3 (Frazione di Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 e-mail: rav@ravaglioli.com
4 TEST PROCEDURES
By means of the TEST procedure program it is possible to verify the correct working of all the
devices present in the wheel aligner system.
It is necessary select the TEST procedure menu as follows:
In the initial logo page press simultaneously the key CTRL - F2, will appear the display page
of Figure 35.

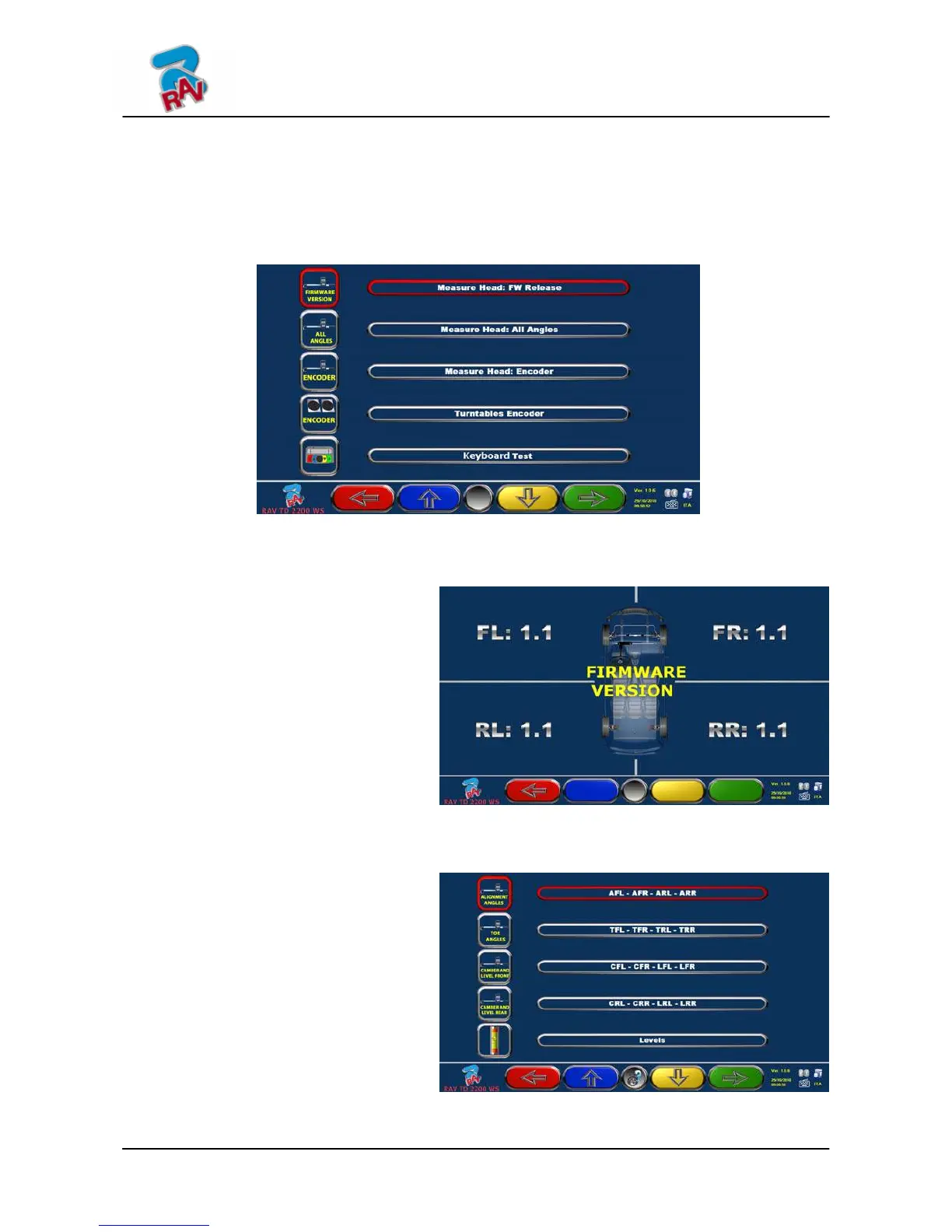

Figure 35
4.1 Reading FW release (test for
communication)
On the screen are displayed all the FW
version from measuring heads;
It is possible by this test verify the
correct working of the communication
between rear to front sensors and from
front sensors to console
Press the key F1 to exit
Figure 36
4.2 Reading all angles
horizontal/vertical
This test consist of display all the angle
angles readings from the measuring
heads; they are divided into 5 groups as
follows:
1- Alignment angles (see Figure 38);
2- Toe-in angles;
3- Level and camber of front heads
4- Level and camber of rear heads
5- All levels with tolerance indicators
Figure 37
