Raven SmarTrax Supplement Installation Manual

Manual # 016-0190-074 Rev B 06/07
15
C HAPTER
S TEERING P OSITION S ENSOR & W IRING
H ARNESS I NSTALLATION
Mounting the
SPS

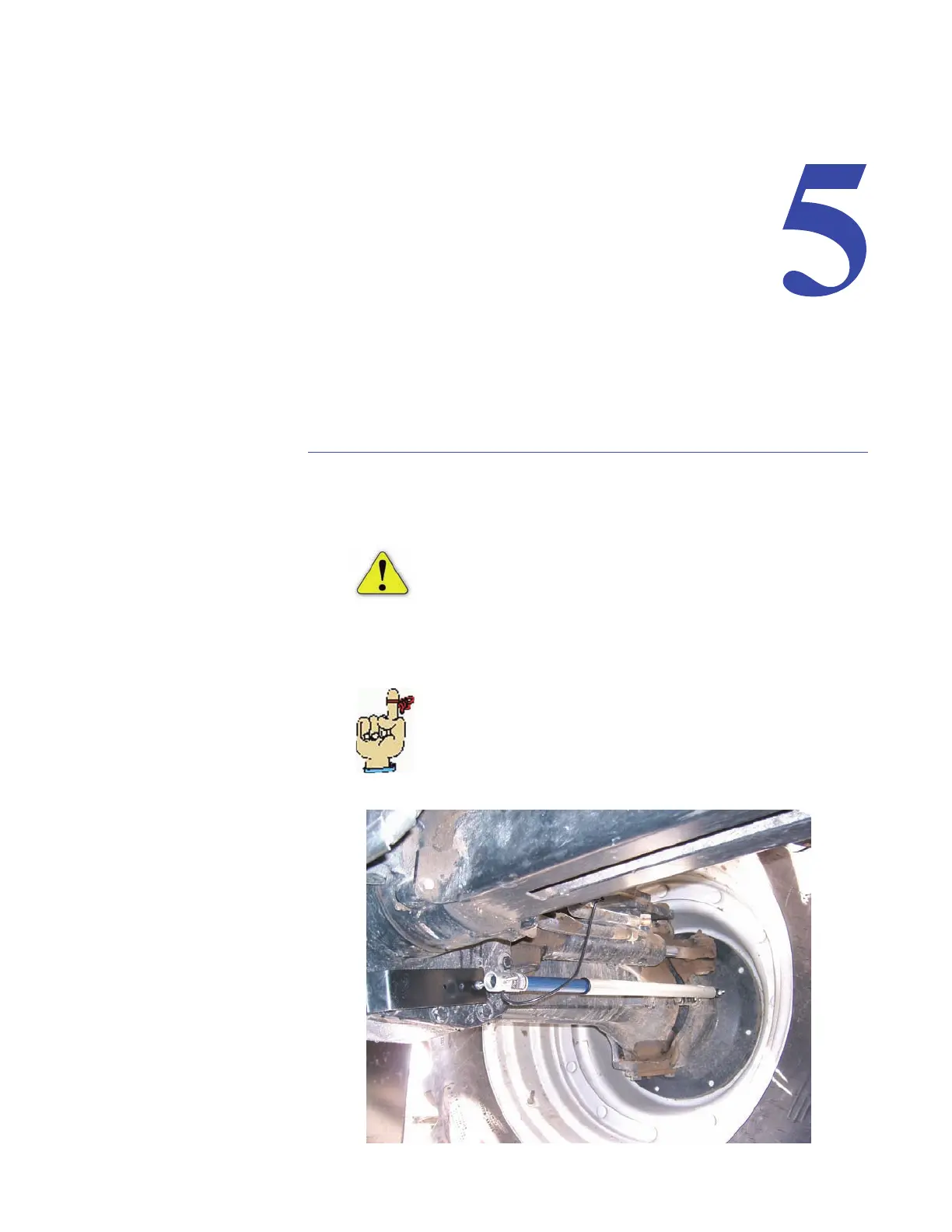

1. Attach the steering position sensor using the supplied brackets as
shown in the pictures below.
Important: Be sure not to over extend or over compress the
steering position sensor when turning the wheels.
Helpful Hint: A hole will have to be drilled in the supplied
bracket in order to mount it using a differential housing bolt.
