Autoboom UltraGlide Calibration Guide
2

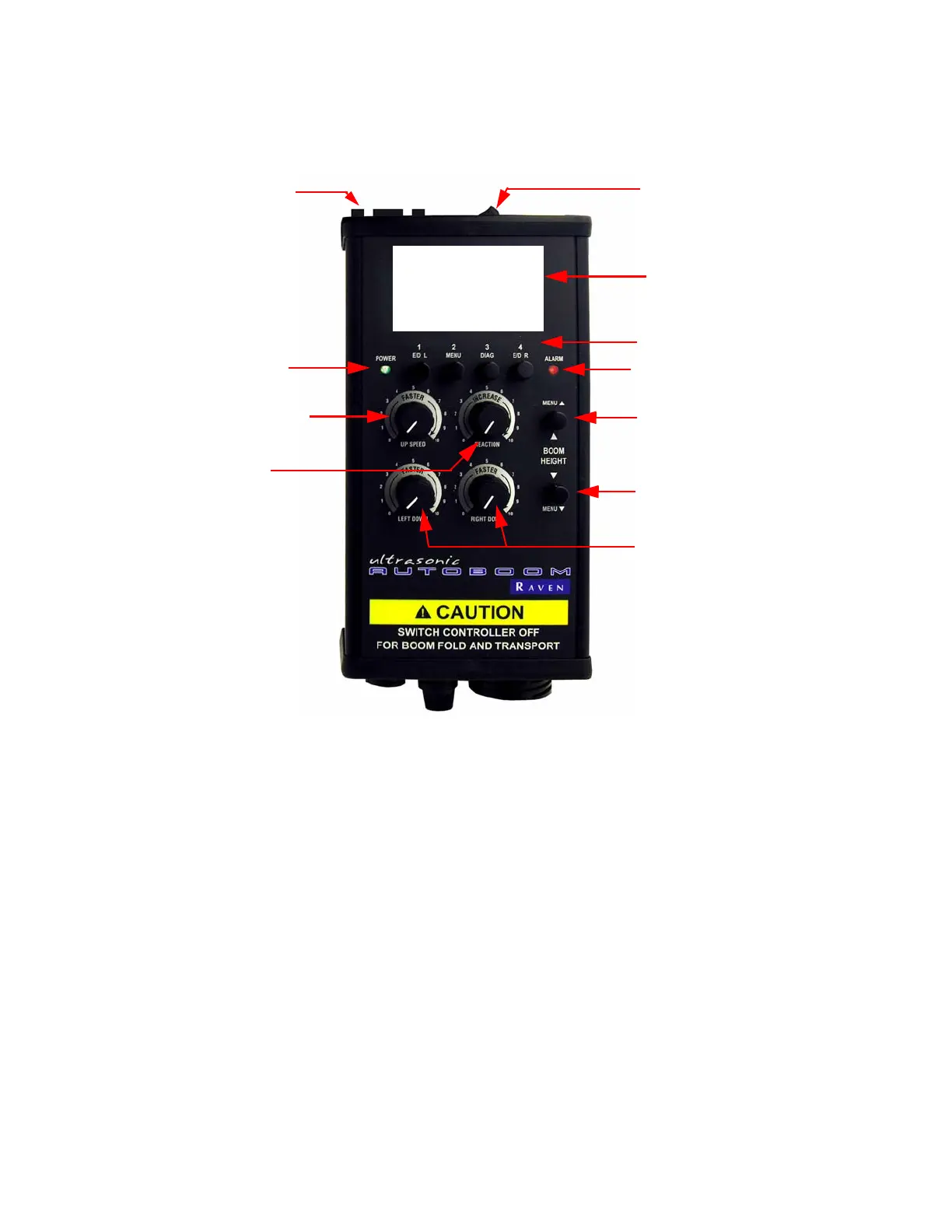

Controller
Description
• A. Main Power Switch - Turns power on and off
• B. Information Screen - Displays system information
• C. Function Keys 1-4 - Press Key 2 for the system menu
• D. Alarm Light - Lights and sounds to indicate pressure and ultrasonic alarm
conditions.
• E. Menu Back Button and raise boom height - Used to scroll back in the
menu or raise boom height.
• F. Menu Forward Button and lower boom height - Used to scroll forward in
the menu or lower boom height.
• G. Left and Right Down Speed Adjustment dials - Used to adjust the down
speed for the left and right booms (in PowerGlide Plus mode only).
• H. Sensitivity - Used to set how responsive the system is to height changes (in
UltraGlide mode only).
• I. Speed Dial - Used to adjust the overall speed of the system (in the UltraGlide
mode only).
• J. Power ‘On’ Light - Lights up when power is on.
• K. Serial Update Port - RS232 serial port for system updates.
K. Serial Update Port
A. Main Power Switch
B. Information Screen
C. Function Keys (1-4)
D. Alarm Light
E. Menu Back Button and
F. Menu Forward Button
raise boom height
and lower boom height
G. Left and Right
Down Speed
H. Sensitivity Dial
I. Speed Dial
J. Power “On” Light
Adjustment
UltraGlide
AUTOBOOM
Raven Industries
Screen shot should say “UltraGlide” Autoboom.
