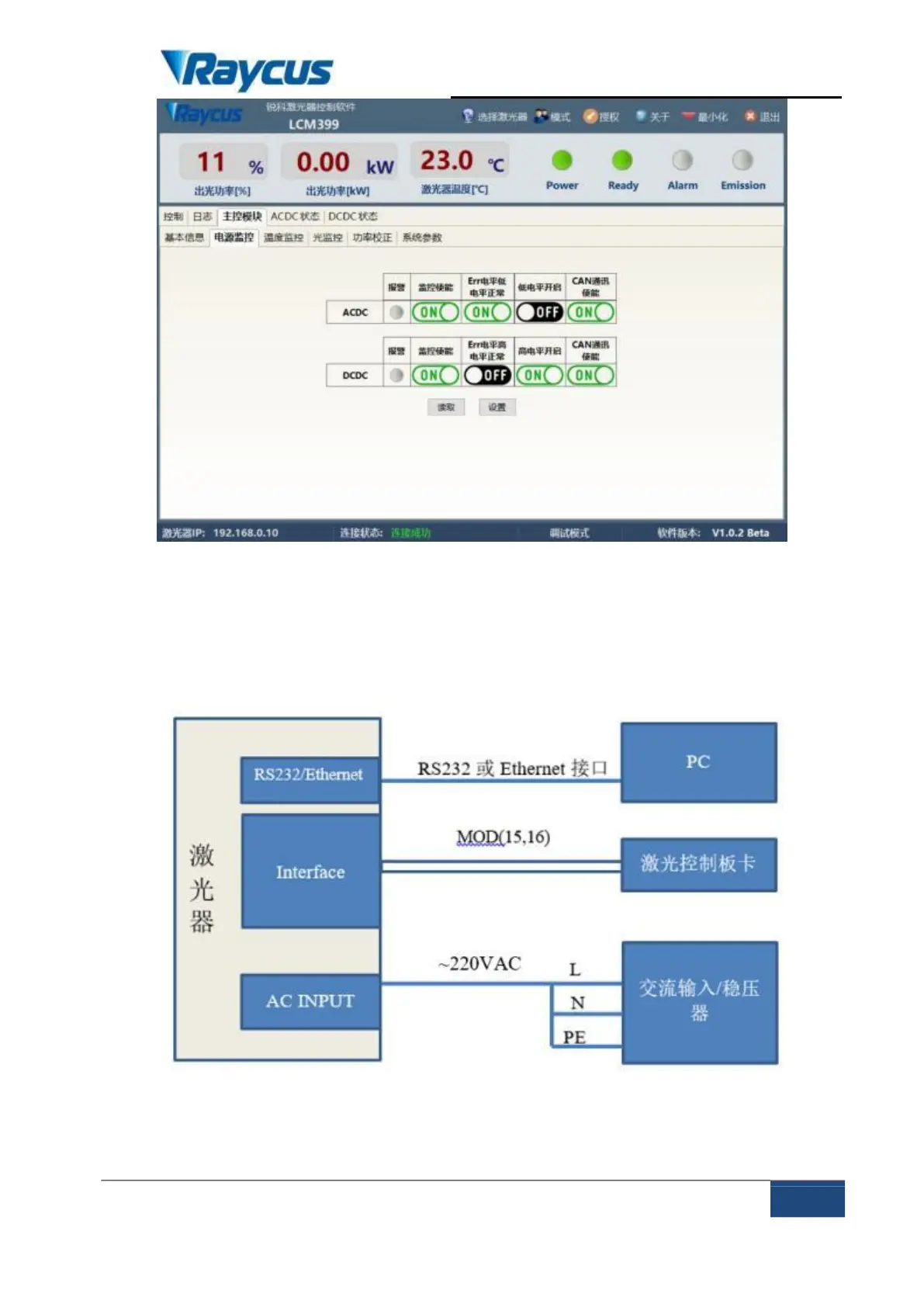

Figure 17 Slave control module status information interface
4.8 Control mode selection
4.8.1 Control mode wiring diagram
Figure 18 Wiring diagram in RS-232 mode
