RAYLASE AXIALSCAN - Digital interface

Functional description Chapter 4
MN025 / v2.1.0 3-Axis Subsystems for Laser Beam Deflection 35
For subsystems with digital interface only

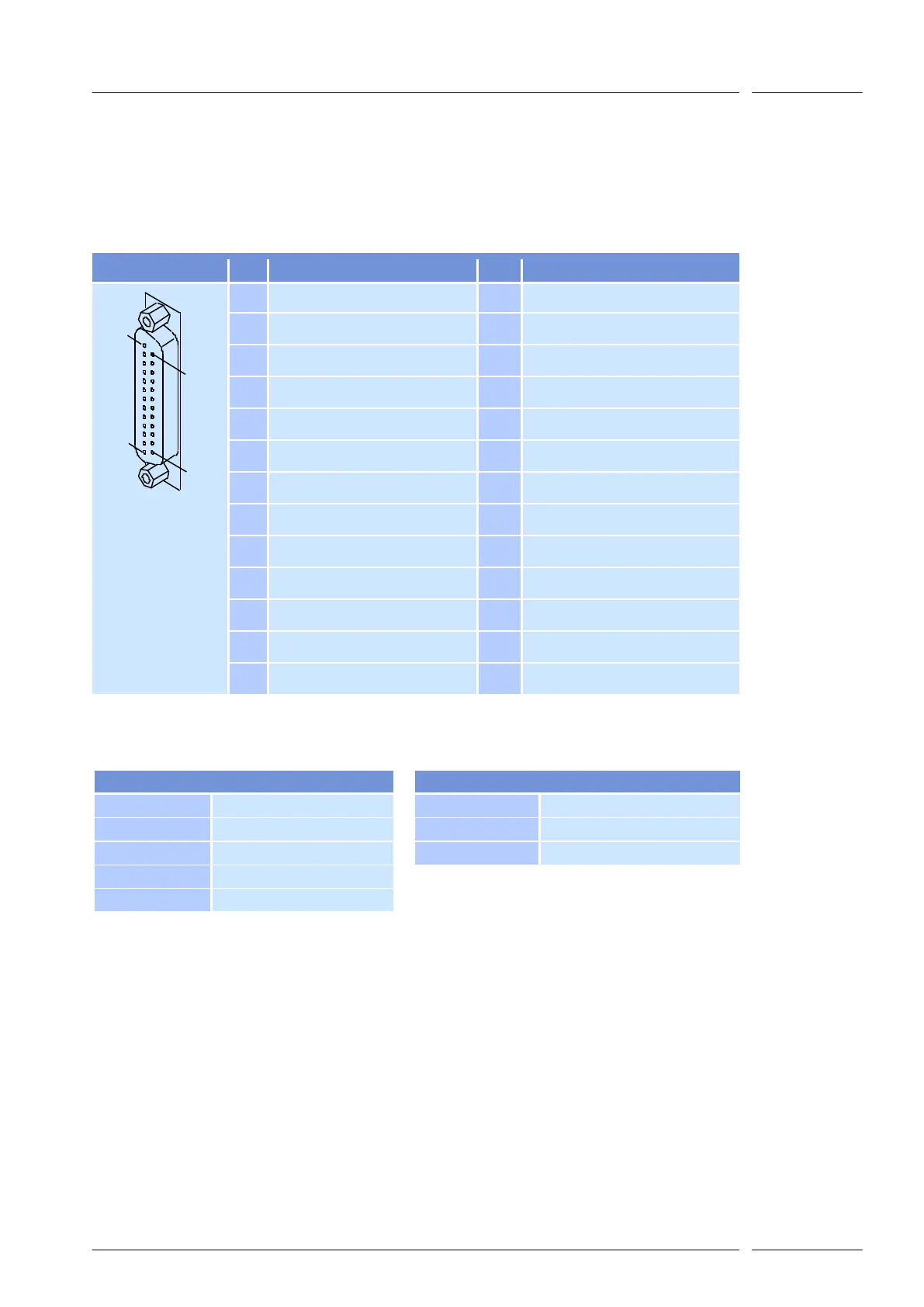

4.7.3 Digital interface
The deflection unit uses the 25-pin D-SUB female connector to receive signals and its power
supply from the linear translator module. All signals are compatible with RAYLASE's extended
function XY2-100 standard. Refer to the following connection table:
PIN
Signal
PIN
Signal
1
13
25
14
25 PIN D-SUB
1
I
-SENDCLOCK
14
I
+SENDCLOCK
2
I
-SYNC
15
I
+SYNC
3
I
-X-DAC CHANNEL
16
I
+X-DAC CHANNEL
4
I
-Y-DAC CHANNEL
17
I
+Y-DAC CHANNEL
5
nc
18
nc
6
O
-HEAD-STATUS
19
O
+HEAD-STATUS
7
I
-P-DAC CHANNEL
20
I
+P-DAC CHANNEL
8
nc
21
nc
9
+VSS
22
+VSS
10
+VSS
23
GND
11
GND
24
GND
12
-VSS
25
-VSS
13
-VSS
---
---
I= Diff. Input, nc = not connected, O = Diff. Output
Specifications
Diff. input-, Diff. input+
-
Diff. output-, Diff. output+
Input voltage
5V
Output low
max. 0.6V
max. 40mA
Input threshold
200mV
Output high
min. 2V @ 50Ω
max. 40mA
Hysteresis
typ. 45mV
ESD protection
±10kV
Input impedance
120Ω
ESD protection
±15kV
