5.5 Checking the beam coupling: AXIALSCAN (water
cooled)
5.5.1 Preparation
In order to be able to check the beam coupling, all components located in the beam path must
be removed and the deflection unit dismantled. The process for doing this is as follows:
o Remove the following components in turn:
- Connection cable between linear translator module and deflection unit.
- Hose connections for water cooling.
Important information:
Make sure that no coolant gets into the subsystem. The units are not waterproof and
liquids can damage both the optical system and the electronics.
- Linear translator module cover (1).
o Remove the following components in turn:
- Focusing lens (3).
- Deflection unit (5);
in sub systems with spacer: Only dismantle the deflection unit, not the spacer (4) and
the mounting plate for the deflection unit.
- Linear translator (2).
o Protect the focusing lens, deflection unit and linear translator against dust.

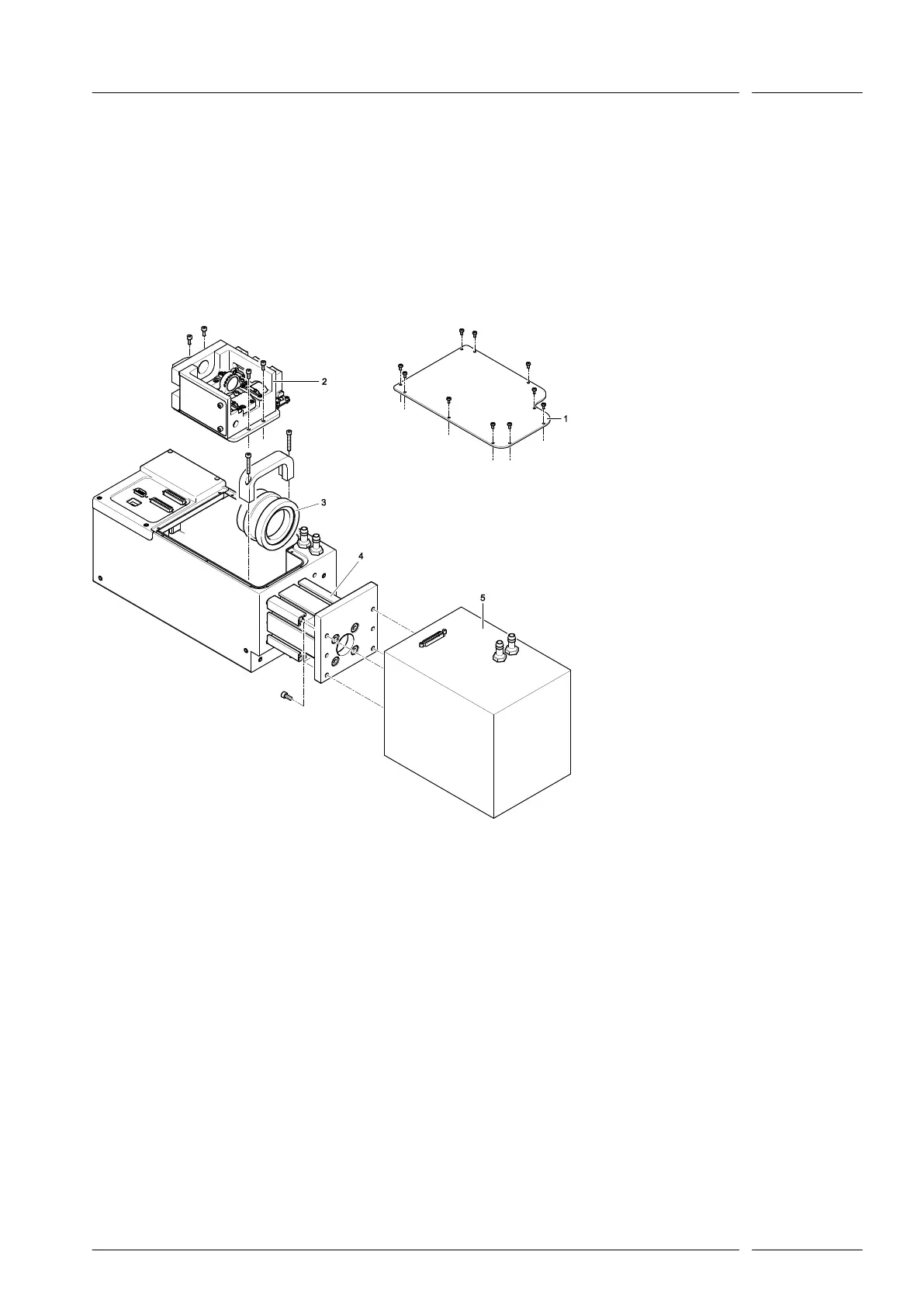

Fig. 19
Preparing the
beam coupling
AXIALSCAN
(water cooled)
