Raymarine Axiom 9+ RV User Manual

2.4P
artssupplied-Axiom™7+
Thepartslistedaresuppliedwiththefollowingproductnumbers:E70634andE70635.

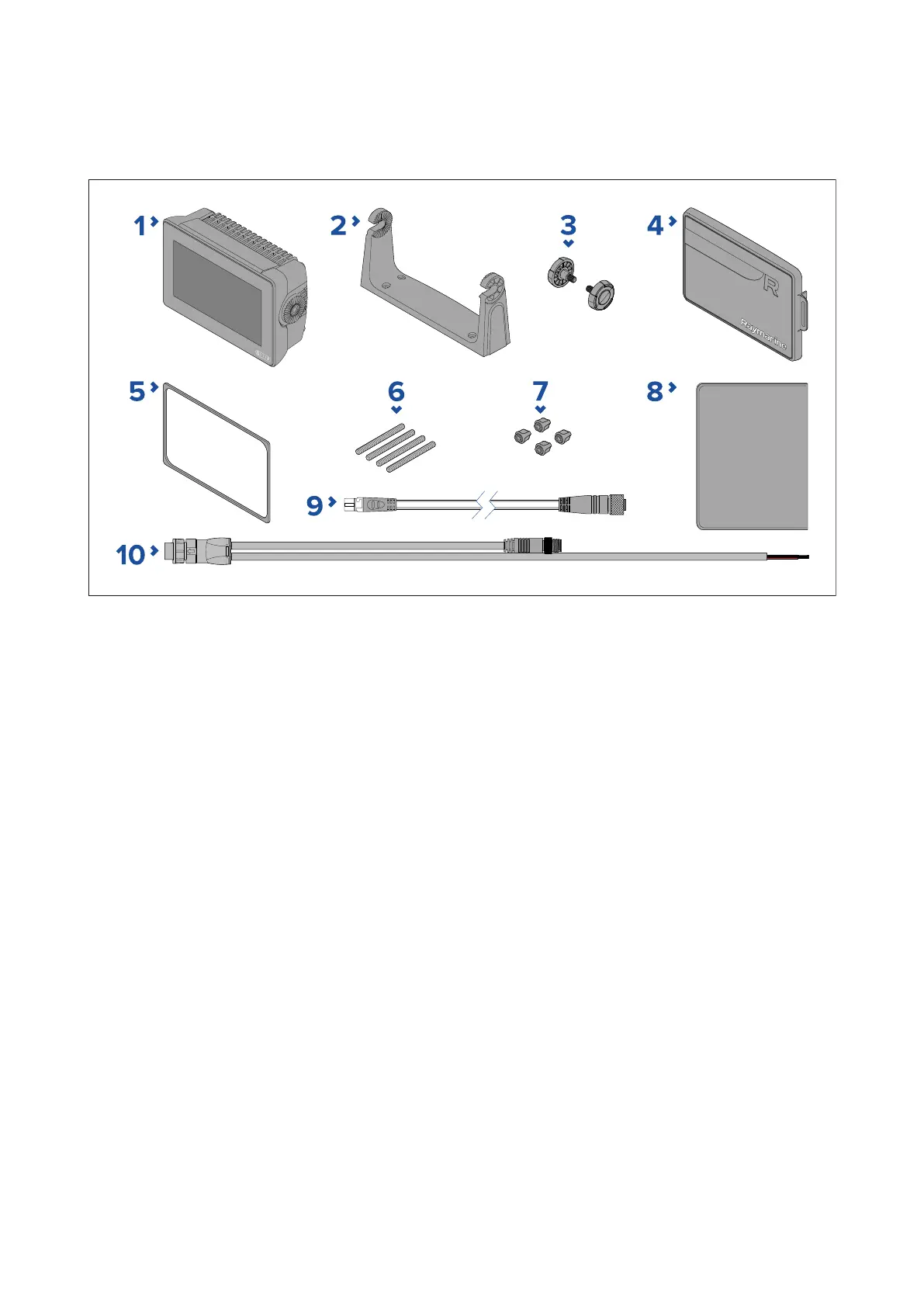

Unpackyourproductcarefullytopreventdamageorlossofparts.Checktheboxcontentsagainst
thelistbelow.Retainthepackaginganddocumentationforfuturereference.
1.MFD(suppliedwithT runnionadaptorfitted)
2.Trunnionbracket
3.Trunnionknobsx2
4.Suncover—Trunnionmount
5.Panelmountgasketforsurface/flushmounting
6.M5x58Threadedstudsx4
7.M5Thumbnutsx4
8.Documentationpack
9.DeviceNettoSeaTalkng®adaptorcable120mm(4.7in)
10.Power/NMEA2000cable(with1.5m(4.92ft)powerleadand0.5m(1.64ft)NMEA2000lead).
E70635–03isalsosuppliedwithaRealVision™3DRV-100transducerandassociatedfittings.
2.5PartsSupplied-Axiom™7+(DISP)
Thepartslistedaresuppliedwiththefollowingproductnumbers:E70634–DISPandE70635–DISP.
Unpackyourproductcarefullytopreventdamageorlossofparts.Checktheboxcontentsagainst
thelistbelow.Retainthepackaginganddocumentationforfuturereference.
Documentandproductinformation
19

Raymarine Axiom 9+ RV Specifications

General

Brand	Raymarine
Model	Axiom 9+ RV
Category	Monitor
Language	English
