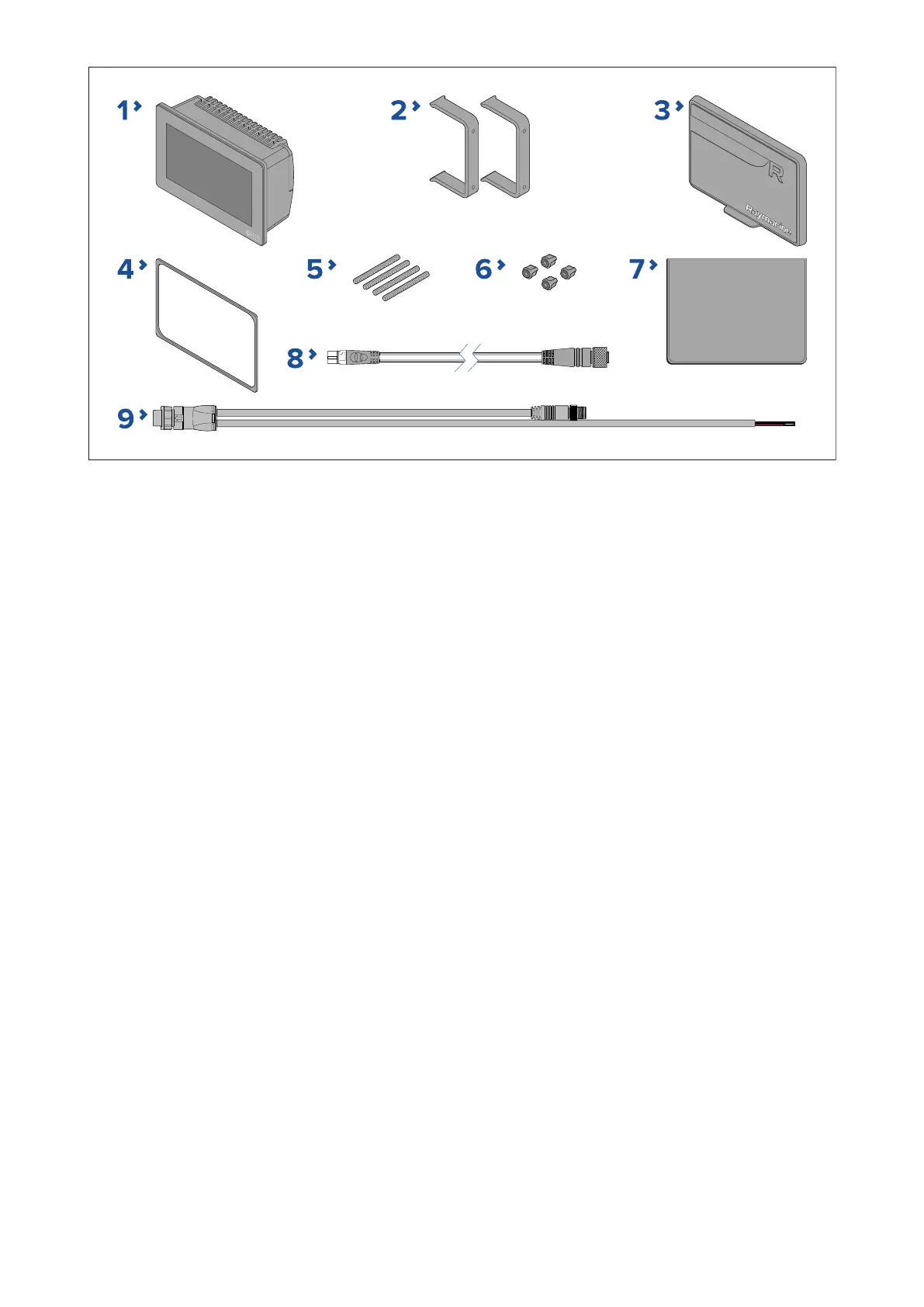

1.MFD
2.R earmountbracketsx2
3.Suncover—Surfacemount
4.Panelmountgasketforsurface/flushmounting
5.M5x58Threadedstudsx4
6.M5Thumbnutsx4
7.Documentationpack
8.DeviceNettoSea Talkng®adaptorcable120mm(4.7in)
9.Power/NMEA2000cable(with1.5m(4.92ft)powerleadand0.5m(1.64ft)NMEA2000lead).
2.6Partssupplied-Axiom™9+andAxiom™12+
Thepartslistedaresuppliedwiththefollowingproductnumbers:E70636,E70637,E70638and
E70639.
Unpackyourproductcarefullytopreventdamageorlossofparts.Checktheboxcontentsagainst
thelistbelow.Retainthepackaginganddocumentationforfuturereference.
20
