ST30 Compass Installation and Operation Handbook
14

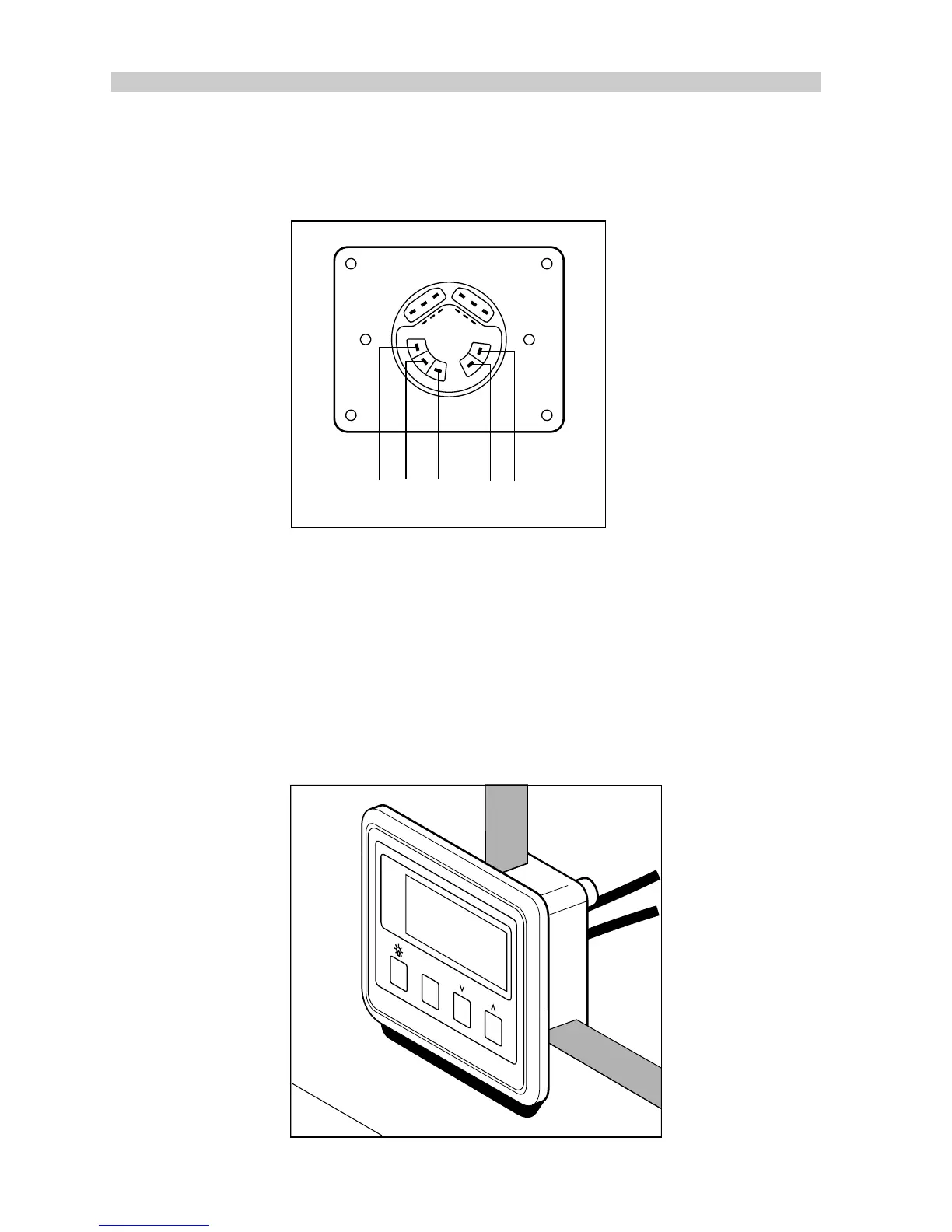

6. Connect the fluxgate compass cables, colour for colour, to the
display head (1) compass terminals (the black core goes to the grey
terminal).
+
+
+
+
SEATALK
D1807-1
1
2
3
4
5
Fluxgate compass to display head connections: 1 Red cable 2 Black cable 3 Blue
4 Green 5 Yellow
7. Attach the display head to the bulkhead using the fixing studs (2) and
thumb nuts (3).
2.4 Flush Mounting the Display Head
The ST30 Compass display head can be flush mounted to provide a “low
profile” installation. Full installation procedures are supplied with the flush
mounting kit (part number D217).
D1792-1
LOCK
COMPASS
LOCK
HEADING
AVERAGE
