ST30 Compass Installation and Operation Handbook
10
❏ as a repeater for an autopilot compass. Power and data is received
via SeaTalk.
LOCK
COMPASS
LOCK
HEADING
AVERAGE
N
D1806-1
1
2
3
4

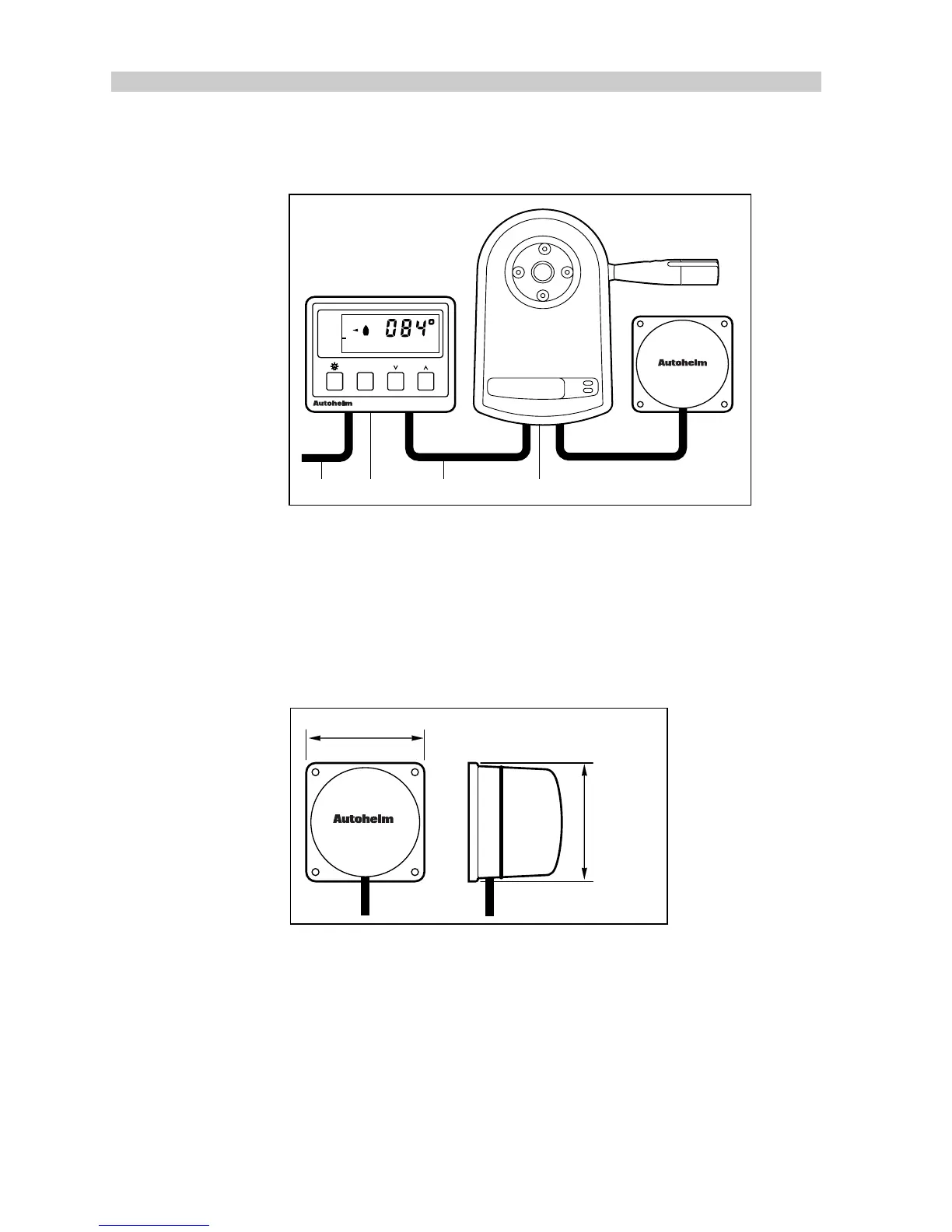

ST30 Compass & autopilot: 1 SeaTalk cable 2 Repeater instrument 3 SeaTalk cable
4 SeaTalk autopilot
Important note...
When the ST30 Compass is used with a SportPilot the fluxgate compass
must be connected to the SportPilot and not the display head.
2.1 Installing the Fluxgate Compass
76mm (3in)
76mm (3in)
D729-2
TM
The fluxgate compass should, ideally, be sited on a forward facing
bulkhead with the Autohelm logo facing forwards. The compass should
also be as close to the pitch and roll centre of the vessel as possible and
sited (at least 0.8m) away from iron masses that cause deviation.
