Technical Update Issue Number: TU 228
Page 2 of 2

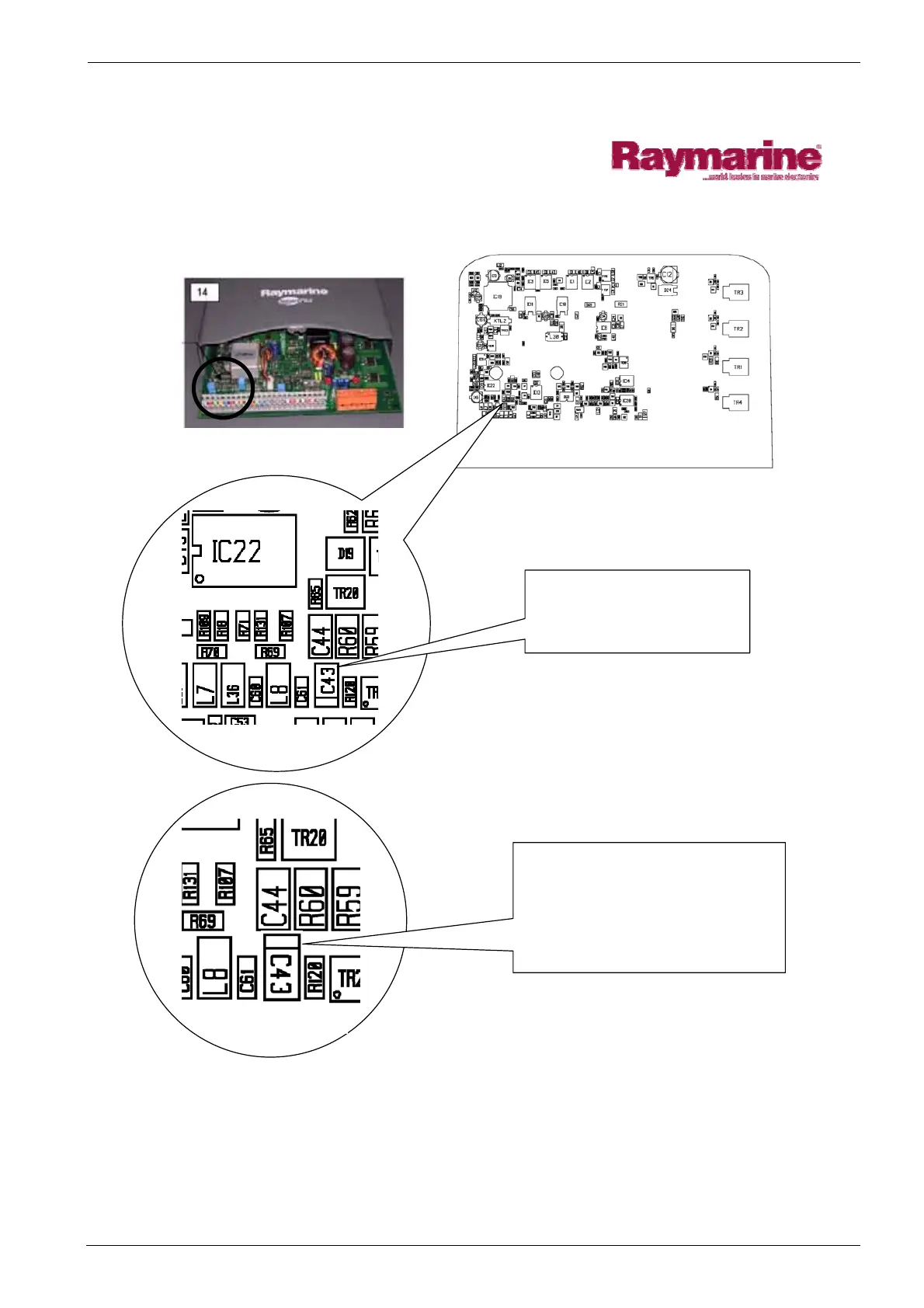

Service Details and Procedures
C43 Polarised Capacitor 2.2uF 6.3v
Wrongly Placed on PCB!
Service Procedure:
x Remove PCB from plastic casing
x Locate C43 Capacitor
x
Unsolder & Remove from PCB
x Replace & re-solder in reverse
Correctl
y
Placed C43
