S1000 Autopilot Installation Guide 17
4. Fitting the course computer
D7338-1

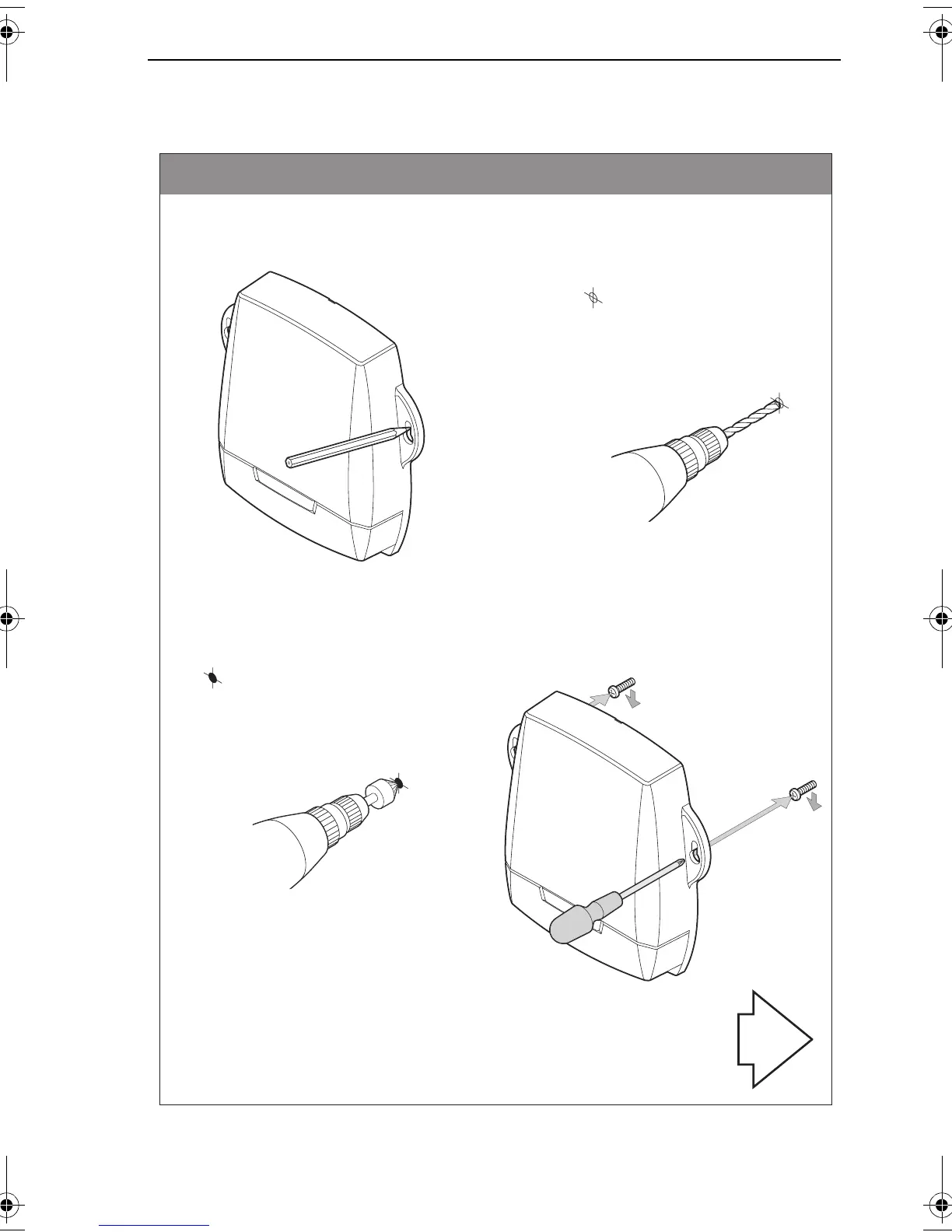

Securing course computer
1.
2.
4.
3.
Mark holes for fixing screws.
Drill two 1/8" (3.4 mm) pilot holes
for fixing screws.
Partially screw in the screws provided,
then slot the course computer onto the
screws, and tighten screws.
Countersink the pilot holes to prevent
damage to the mounting surface.
The course computer is now secure.
