15
WARNING: Indoor heaters require a drafthood that must be connected to a vent pipe and properly vented to
the outside. Failure to follow this procedure can cause fire or fatal carbon monoxide poisoning.
INDOOR HEATER INSTALLATION
The heater is also design-certified for indoor installation when equipped with the approved drafthood.
For Canada, indoor installation is restricted to an enclosure that is not occupied and does not directly commu-
n
icate with an occupied area. Refer to the latest edition of CAN/CSA-B149 for specific requirements. Locate
heater as close as is practical to a chimney or gas vent. Heater must always be vented to the outside. See Vent
Piping section (pg. 17-18) for details. Minimum allowable space is shown on the nameplate.

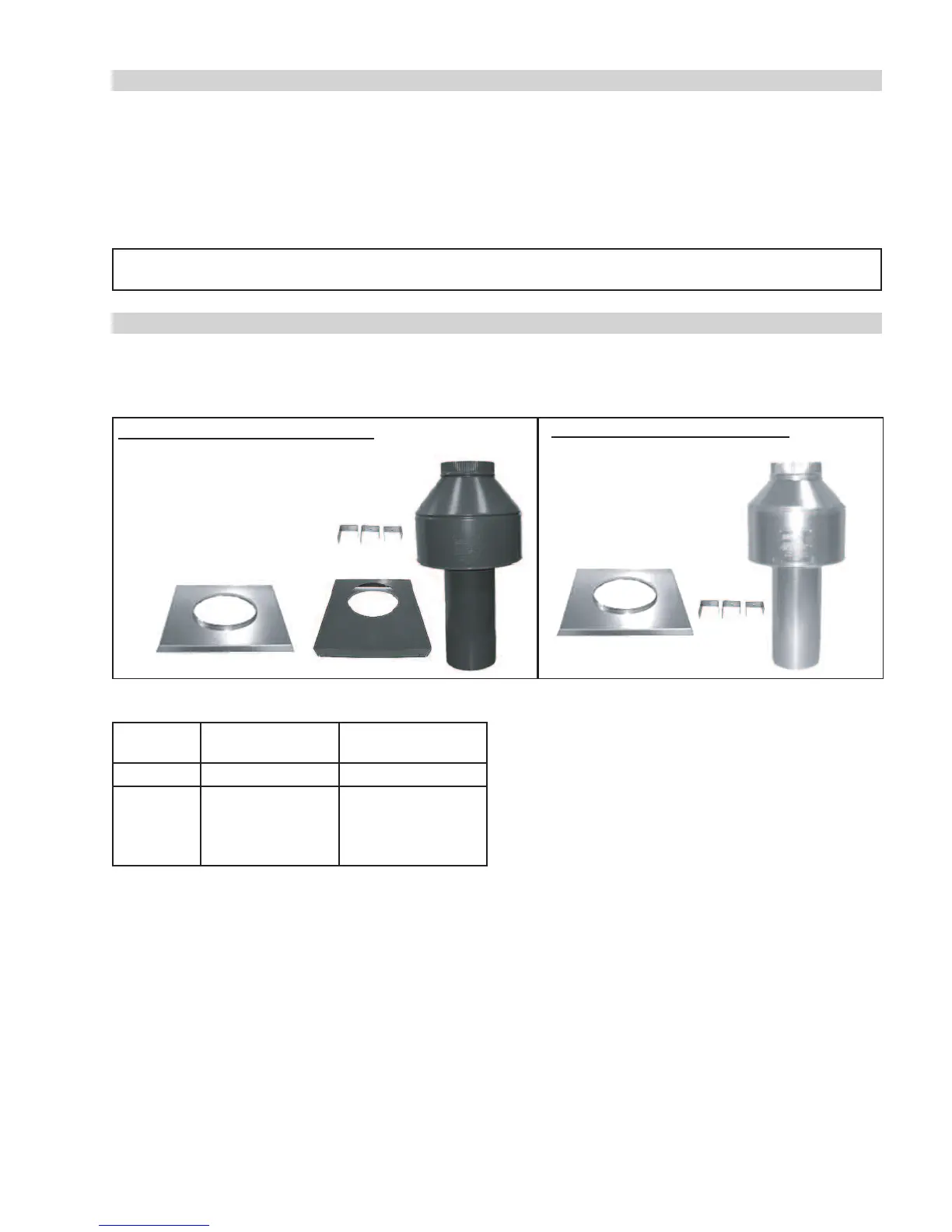

OUTDOOR STACK / INDOOR STACK
NOTE: The outdoor and indoor stacks are optional equipment and do not come standard with the heater.
OUTDOOR STACK KIT INCLUDES:
(1) Drafthood, painted
(1) Adapter plate
(3) Mounting brackets (clips)
(1) Top panel cover
(2) 1-foot sections of metal tape
(3) Screws
(1) Instructions
Clips
INDOOR STACK KIT INCLUDES:
(1) Drafthood, unpainted
(1) Adapter plate
(3) Mounting brackets (clips)
(3) Screws
(1) Instructions
Clips
** REFER TO INSTALLATION INSTRUCTIONS
INSIDE BOX FOR INSTRUCTIONS ON HOW TO
INSTALL OUTDOOR/INDOOR STACK.
OUTDOOR
STACK
INDOOR STACK
Model Part No. Part No.
206A/207A
266A/267A
336A/337A
406A/407A
009834
009835
009836
009837
009838
009839
009840
009841
