Resets board to factory default
settings.
Resets faults in the History File.
Change from Fahrenheit to
Celsius.
SPA setpoint maximum
adjustment.
POOL setpoint maximum
adjustment.
Set Factory Defaults
Refer to step one above to access the program
screen. Set Factory Defaults should appear on the
screen. If it does not, press the Mode button until Set
Factory Defaults appears on the digital display.
Press and hold both UP and DOWN buttons for 5-7
seconds until Defaults Set appears. This operation
resets the operating program to its factory default val-
u
es. Both the POOL and SPA setpoints will revert to
65°F (18.5°C) and both POOL and SPA maximum
temperature settings will be 104°F (40.0°C).
Program Button
1) To access the program screen, press the Mode
button until the display reads OFF. Remove the
four screws holding the control cover on. Swing
control panel down so the back side of the board
is visible (see page 31). Locate the Program Mode
button as shown in the figure on page 37. Press
the program button (5-7 seconds) until Set
Factory Defaults appears on the digital display.
Release the program button.
2) Press the Mode button sequentially until the
desired program event is reached. There are 5 dif-
ferent events that can be programmed. They
appear in the sequence listed below:
Clear Faults
Refer to step one above to access the program
screen. Press the Mode button until Clear Faults
appears on the digital display. Press and hold both UP
and DOWN buttons for 5-7 seconds until Faults
Cleared appears. This operation resets the Fault
History file to “0” and clears all the stored faults.
Fahrenheit or Celsius
Refer to step one above to access the program
screen. Press the Mode button until Fahrenheit or
Celsius appears on the digital display. The digital dis-
play is capable of displaying Celsius as well as
Fahrenheit temperatures. The UP or DOWN buttons
will select Fahrenheit or Celsius on the temperature
display. Choose the desired temperature scale.
Spa Max Temp – Spa Set Point Maximum
Adjustment
Refer to step one above to access the program
screen. Press the Mode button until Spa Max Temp
appears on the digital display. Using the UP and
DOWN buttons will change the Maximum Temperature
Setting to your desired value. The control can be set
for a maximum of 107°F.
Pool Max Temp – Pool Set Point Maximum
Adjustment
Refer to step one above access into the program
screen. Press the Mode button until Pool Max Temp
appears on the digital display. Using the UP and
DOWN buttons will change the Maximum Temperature
Setting to your desired value. The control can be set
for a maximum of 107°F.

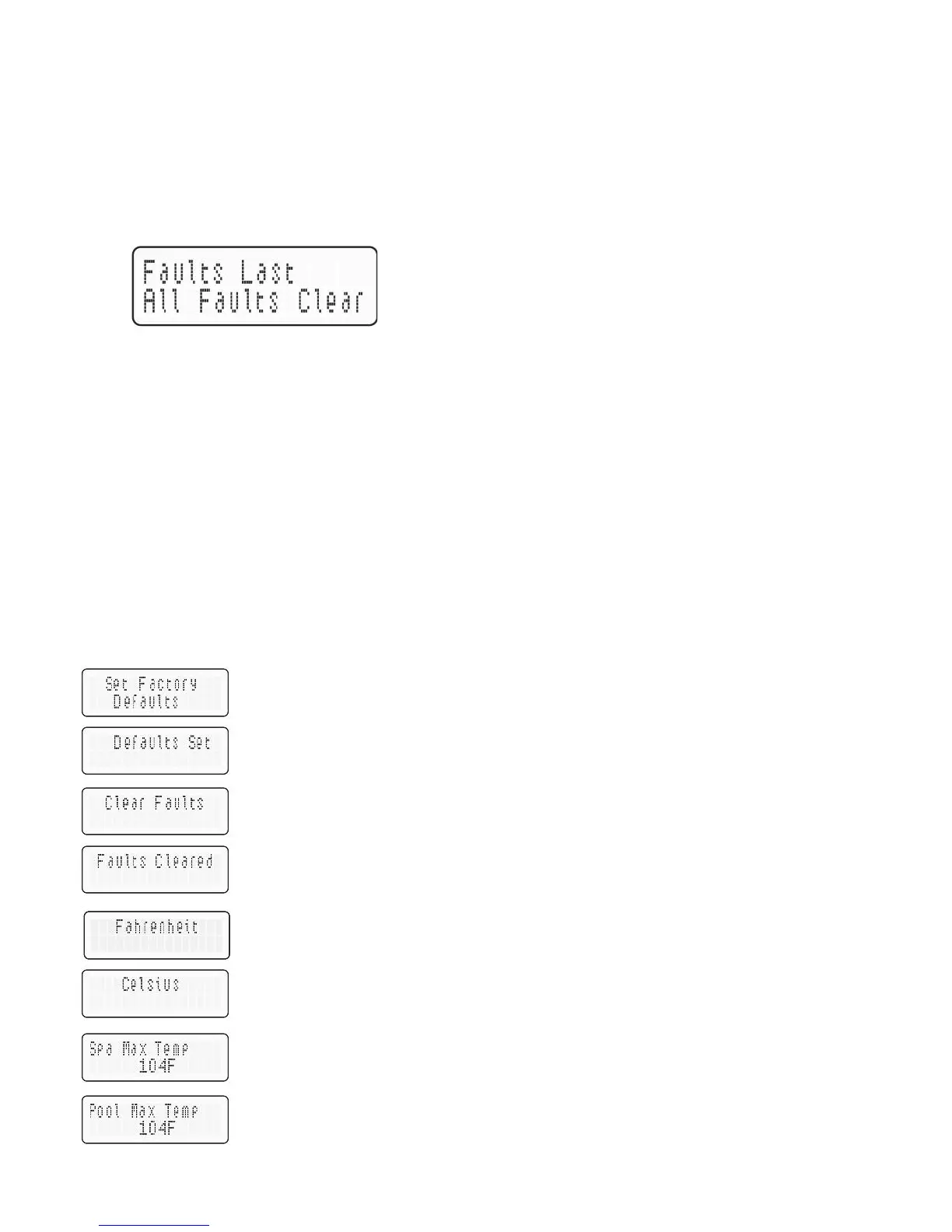

FAULT HISTORY
P
ress the DOWN arrow button. The Fault History can
display up to ten faults in memory. The order of the
faults begins with “Fault Last,” which is the most recent
fault, and then proceeds to the second through tenth
m
ost recent messages in chronological order. The
second line of the display shows the fault message. If
there are no faults in the history buffer, the second line
reads “All Faults Clear.”
