Thermalert GP Series Operator’s Manual 25
2.4.10 Thermocouple Output
Thermocouple output is factory preset as inactive. To adjust and set the type
of thermocouple output, complete the following steps:
1. Press and hold the button, and press the button, then release
them both. The Peak Hold display appears (as shown in Figure 15).
2. Press the button several times until the thermocouple output indica-
tor displays as shown in Figure 20.
O
N
L
C
F
Thermalert GP

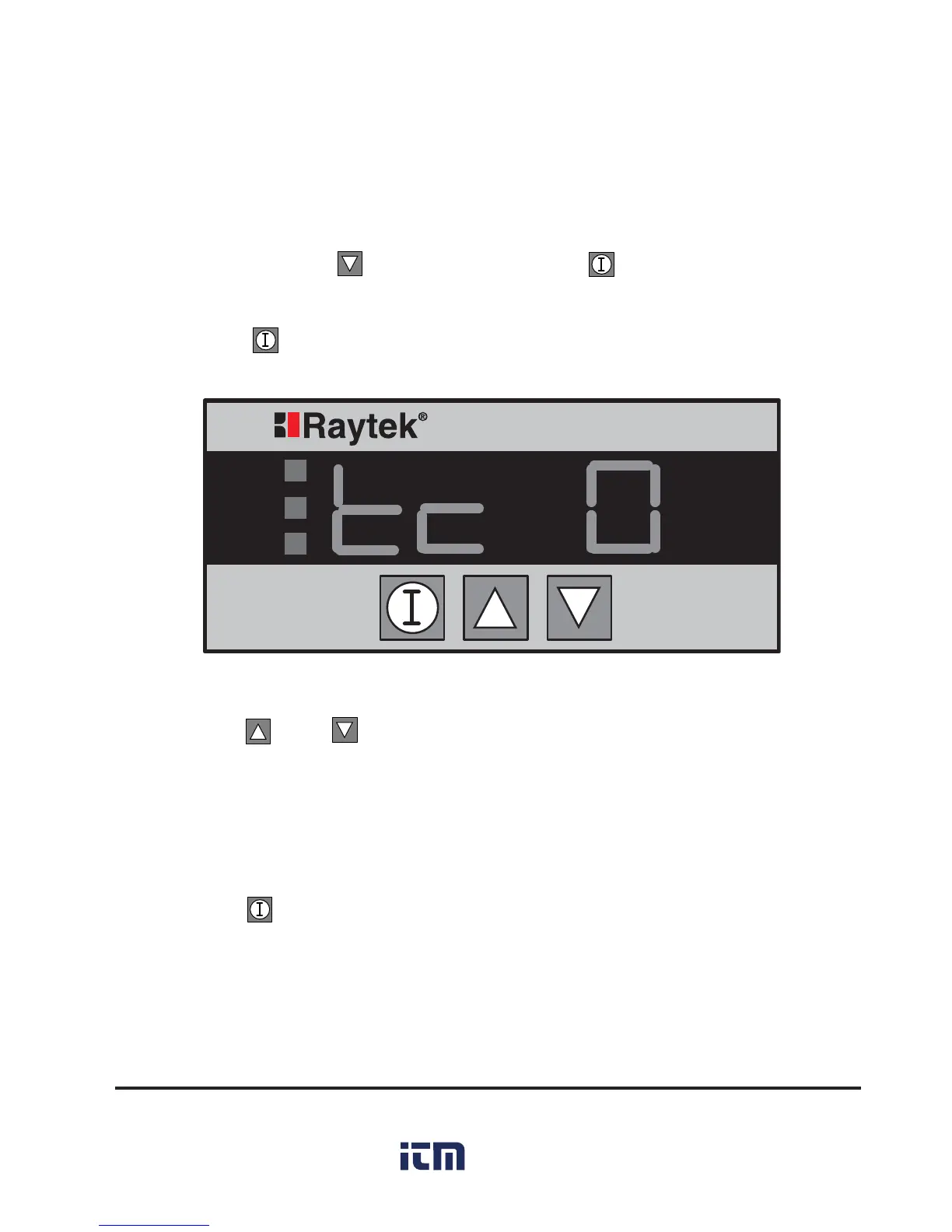

Figure 20: Thermocouple Output
3. Press the and buttons to change the number on the display to the
appropriate thermocouple output type. Use the following as a guide:
4. Press the button until the temperature/value mode displays.
Notes: Thermocouple output is available for H004 and H005 inputs only if either °C
or °F is activated.
The 4-20mA analog output is disabled when the thermocouple output is
active.
• TC1 = J-type thermocouple output
• TC2 = K-type thermocouple output
• TC3 = E-type thermocouple output
• TC4 = N-type thermocouple output
• TC5 = R-type thermocouple output
• TC6 = S-type thermocouple output
• TC7 = T-type thermocouple output
