38 Thermalert GP Series Operator’s Manual
WARNING
Avoid exposure to laser light. Eye damage can result. Use
extreme caution when operating. Never point at a person.
CAUTION
CAUTION
SENSOR
Laser Switching Box
Laser On/Off Switch
LASER LIGHT
DO NOT STARE INTO BEAM
LASER CLASS II
<1Mw / 630-670nm
IEC 825/93
LASER RADIATION - DO NOT
STARE INTO BEAM
OUTPUT < 1mW
WAVELENGTH 630 - 670 nm
CLASS II LASER PRODUCT
AVOID EXPOSURE - LASER RADIATION
IS EMITTED FROM THIS APERATURE
COMPLIES
WITH CFR
1040.10

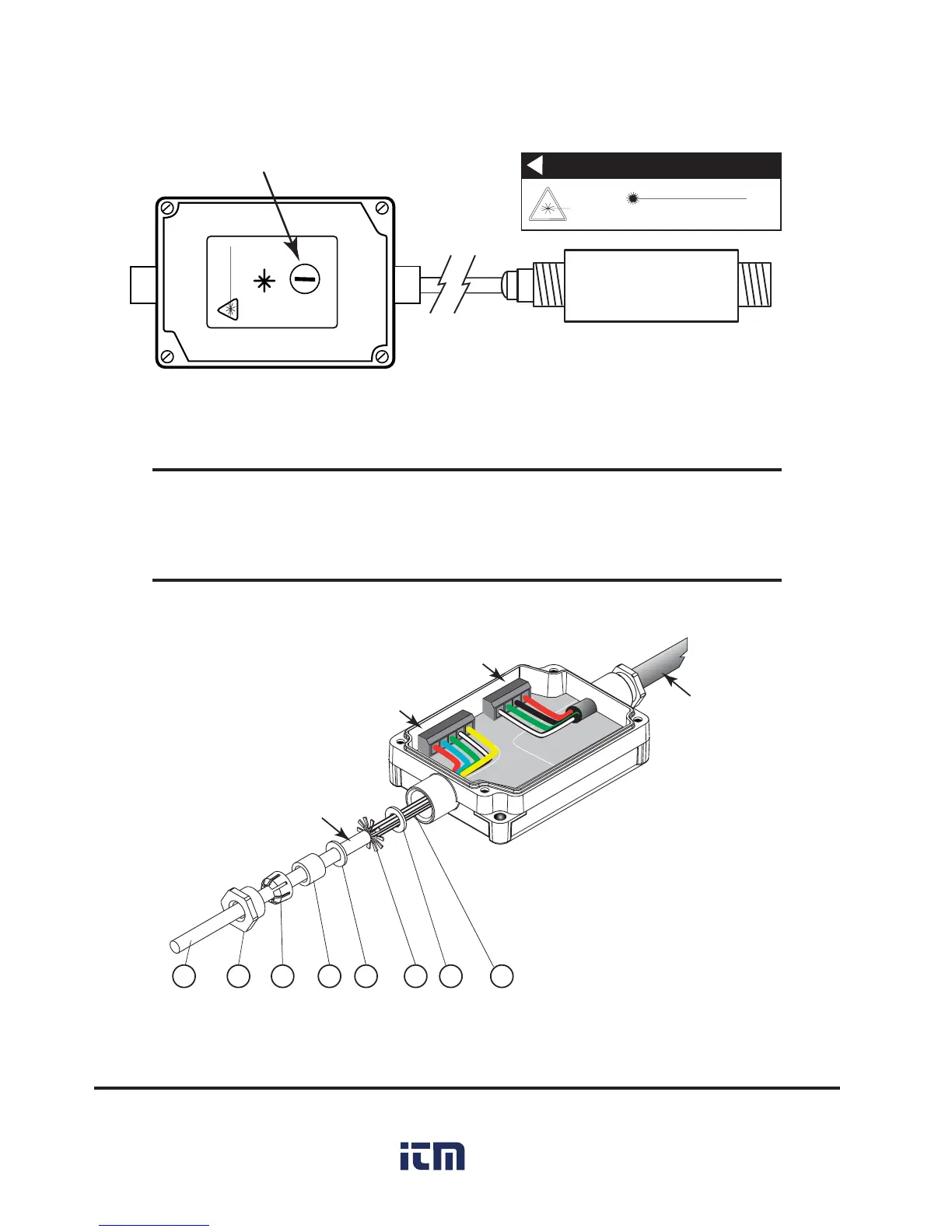

Figure B-3: Laser Sighting Head and Switching Box
461
2
43
57
1. Cap
2. Plastic compression fitting
3. Rubber washer
4. Metal washer
5. Cable shield
6. Wires
7. Sensor head cable
Monitor cable
(8m/26ft length)
Sensor head cable
(4m/13ft length)
Sensor head wires (left to right):
red, blue, green, white, yellow
Monitor wires (left to right):
white, green, black, red
Figure B-4: Laser Switching Box Wiring Diagram
