70 Thermalert GP Series Operator’s Manual
3. Tighten the fixing clamp screws on each fixing clamp. Make sure the tabs
are snug against the bracket frame (Figure D-2). Do not overtighten.

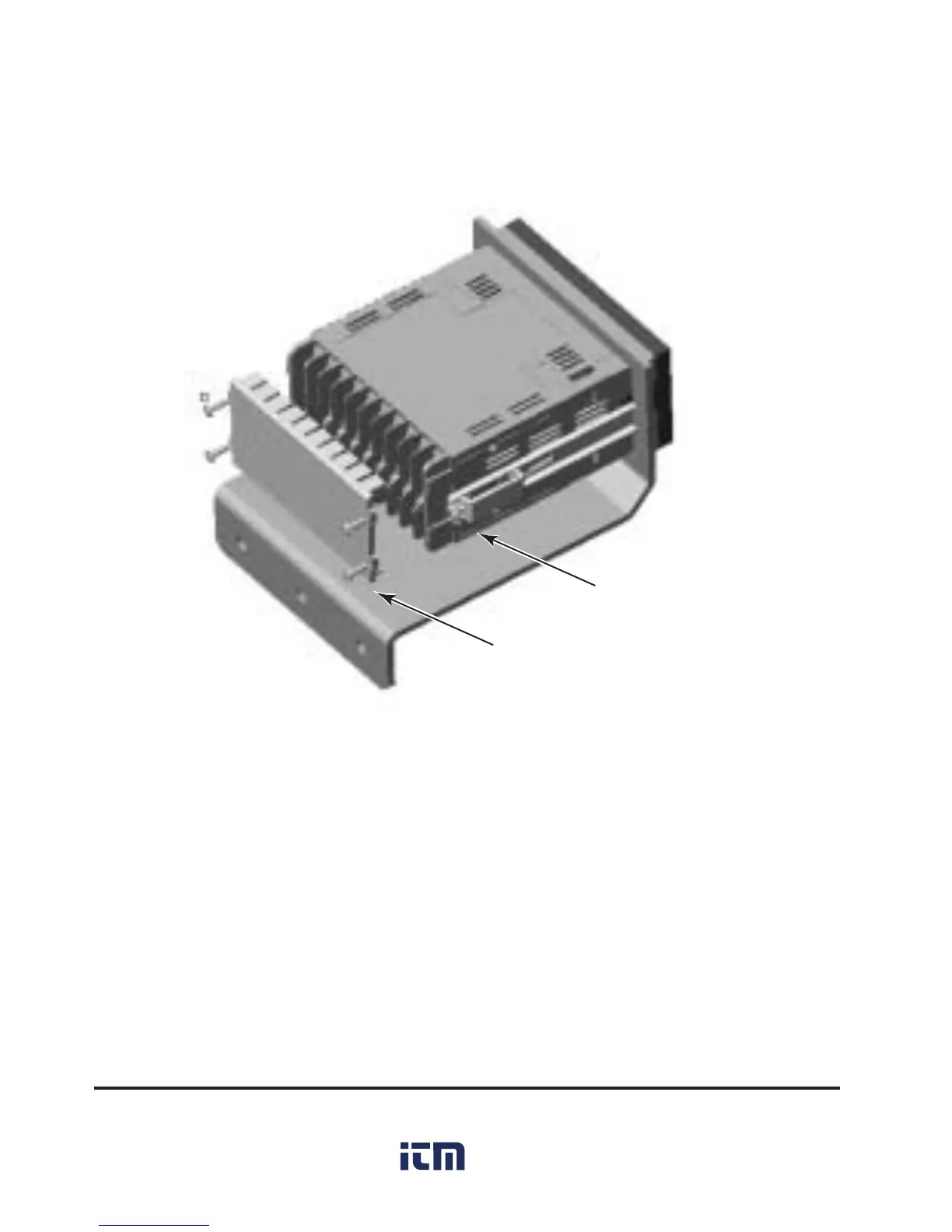

Figure D-2: Completing the Installation
4. You will need to attach wires to the monitor’s terminals and attach the
rear cover before mounting the bracket onto a surface. (Refer to the manu-
al for wiring instructions for your particular device.
5. Use 3 appropriately sized screws or bolts to fasten the bracket onto your
work surface.
This completes the monitor bracket accessory installation.
