Raytheon Anschütz Standard 22 NX User Manual

Gyro Compass Standard 22 NX
1 Description
10000000015 6 Edition:001

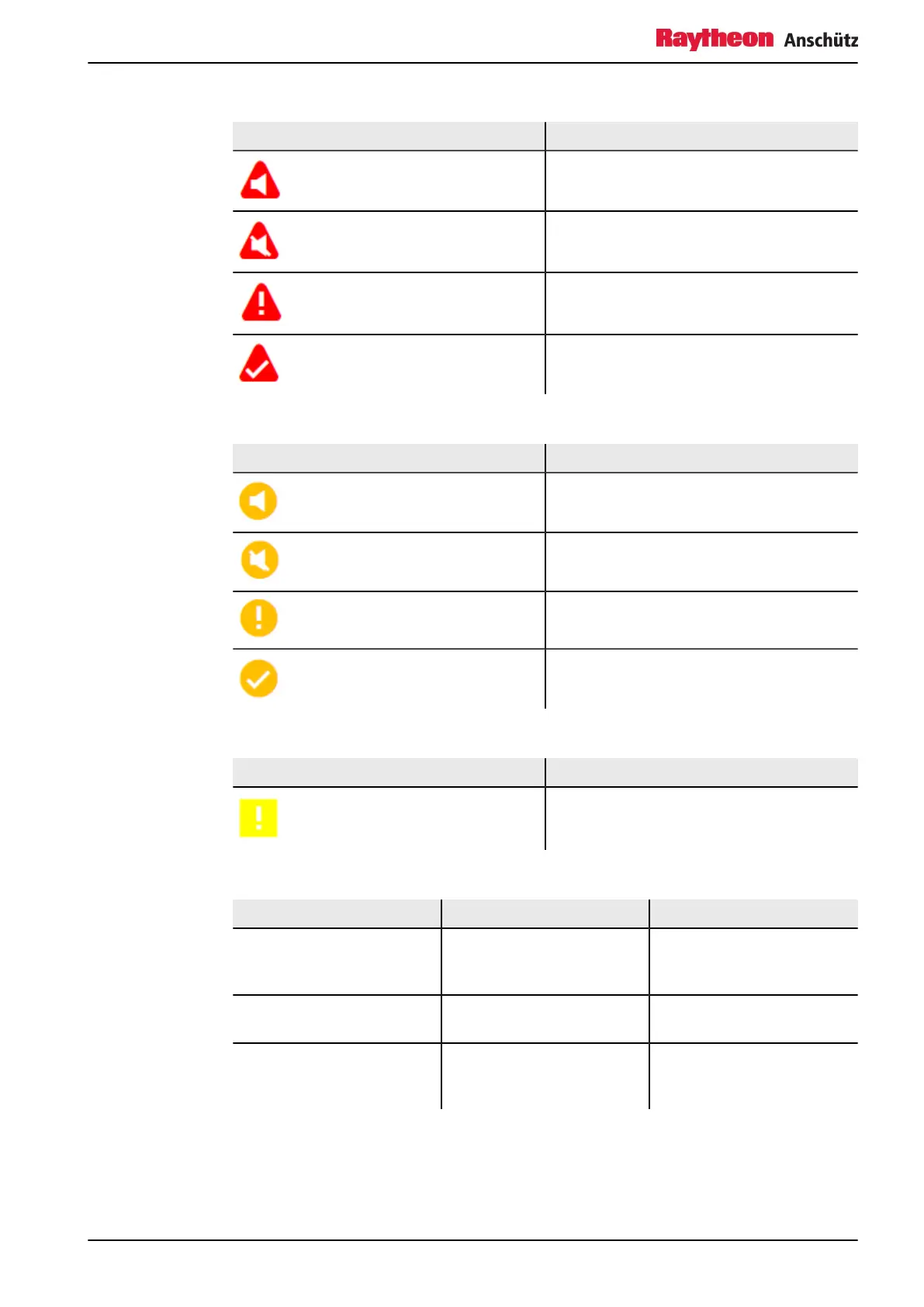

Tab. 1: Alert List, Alarm Symbols
Symbol Description
Active – unacknowledged alarm (flashing)
Active – silenced alarm (flashing)
Active – acknowledged alarm
Rectified – unacknowledged alarm (flash-
ing)
Tab. 2: Alert List, Warning Symbols
Symbol Description
Active – unacknowledged warning (flash-
ing)
Active – silenced warning (flashing)
Active – acknowledged warning
Rectified – unacknowledged warning (flash-
ing)
Tab. 3: Alert List, Caution Symbols
Symbol Description
Caution
Tab. 4: Alert Signaling
Color Meaning – Visual Acoustic Signals
Red (alarm) flashing
Alarms (faults and / or dan-
gerous situations)
3 short signals (pulse) every
7 seconds. Continues until
acknowledgment
Yellowish orange (warning)
flashing
Warnings
2 short signals (pulse) after
the event without repetition
Yellow (caution)
Status messages informa-
tion
There is no acoustic signal
for status and global mes-
sages
