4

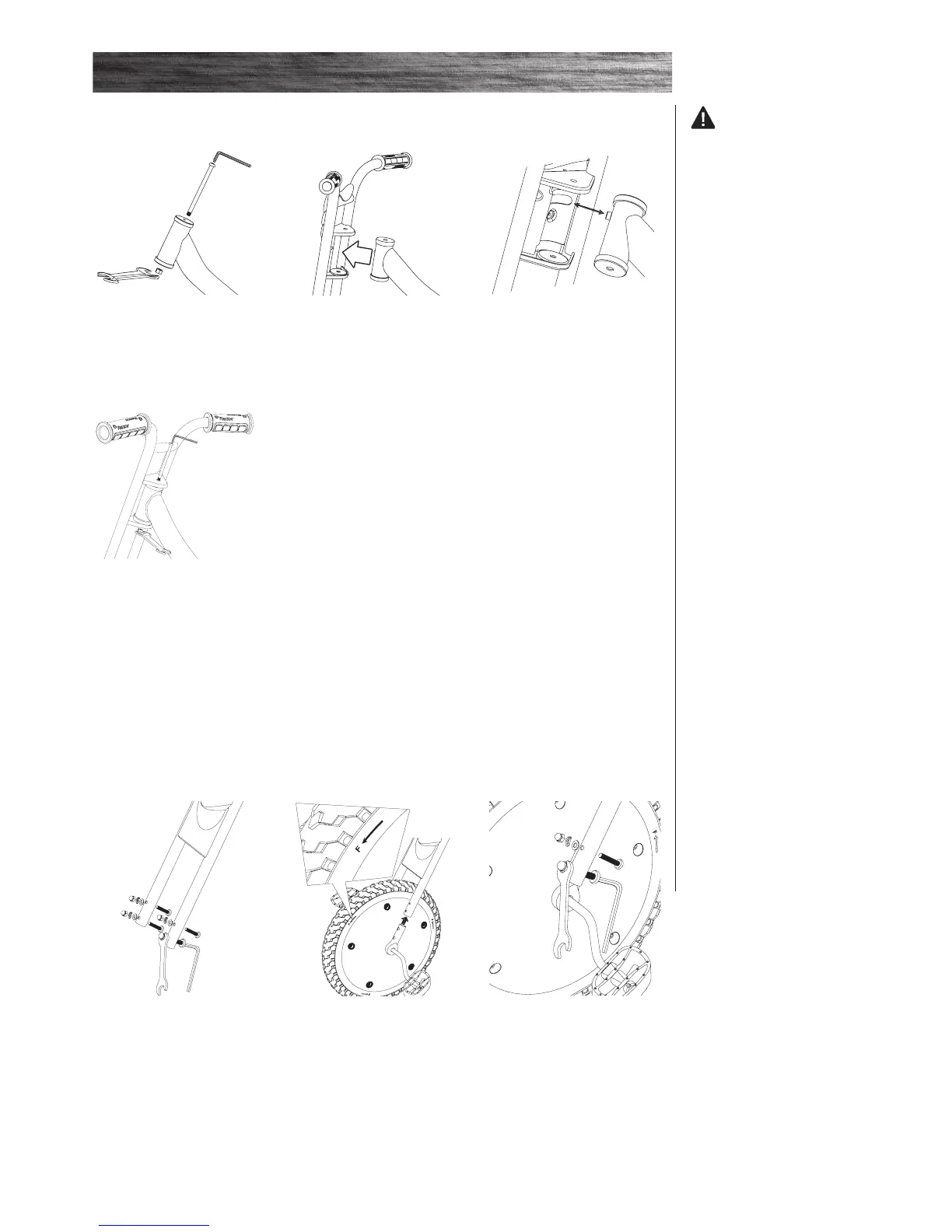

1 Remove the steering bolt and
locknut from the frame assembly
with a 13mm wrench and 5mm
Allen wrench.
2 Insert the front fork into the
frame assembly.
q Attaching the Front Fork
Required Tools: 13mm wrench and 5mm Allen wrench
4 Re-insert the steering bolt and
secure with locknut using a 13mm
wrench and 5mm Allen wrench.
3 Be sure to properly align
slot on headtube with pin on
front fork as shown.
ASSEMBLY AND SET-UP
1 Remove the (4) coupling bolts
from the front fork with a 5mm Allen
wrench and 10mm wrench.
2 Insert the wheel assembly into
the front fork assembly and align
holes. When installing the wheel,
make sure the letter “F” and
arrow (located on the side of the
wheel) are facing the direction as
shown above.
q Attaching the Front Wheel
Required Tools: 5mm Allen wrench and 10mm wrench
WARNING: Failing to
properly tighten the steering bolt
that attaches the front fork assembly
to the frame assembly can cause you
to lose control and fall.
3 Re-insert the coupling bolts
through the front fork and
tighten securely.
To Next Page
