q Attaching the Spark Bar
Required Tools: 10mm wrench and 5mm Allen wrench
Need Help? Visit our website for replacement parts, product support and a list of authorized service centers
at www.razor.com or call toll free 866-467-2967 Monday - Friday 8AM - 5PM Pacific Time. Please have the
product I.D. code (located on the bottom of the frame) available for better assistance.

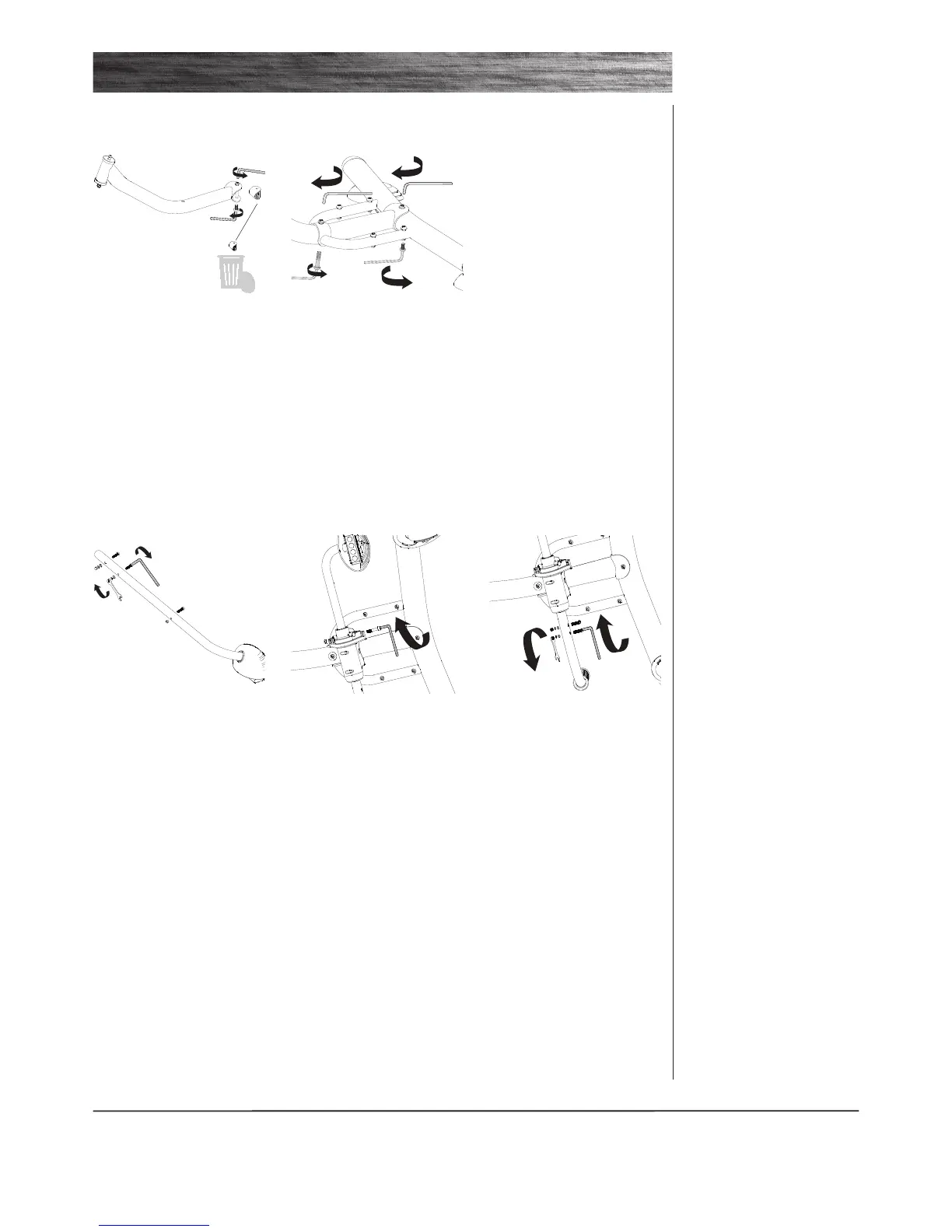

ASSEMBLY AND SET-UP
1 Using (2) 5mm Allen wrenches,
remove coupling bolt and discard
plastic insert.
1 Using a 10mm wrench and a
5mm Allen wrench, remove the
coupling bolts from the Spark
Handle.
2 Insert the rear frame to the
frame assembly and using (2) 5mm
Allen wrenches, securely tighten
coupling bolts.
2 Insert the Spark Handle (right
side) and the Spark Bar (left side)
into the spring mechanism. Align
the holes on the Spark Bar with the
hole on the spring mechanism and
tighten coupling bolt with 10mm
wrench and 5mm Allen wrench..
2 Align the holes on the Spark
Handle with the holes on the
Spark Bar and tighten coupling
bolts with 10mm wrench and
5mm Allen wrench.
q Attaching the Frame
Required Tools: (2) 5mm Allen wrenches
To Next Page
