REPAIR AND MAINTENANCE
2 If brake is too tight or has too
much slack, use a 10 mm wrench to
loosen the brake cable and adjust
accordingly.
3 Inspect the brake pads (A) for
proper alignment against the wheel
or excess wear. To realign the brake
pads, loosen the fixing nut (B) and
adjust the pad to contact the rim.
Re-tighten and readjust as needed.
Verify proper brake function prior to
riding the scooter.
1 To adjust the brake cable play,
thread the brake lever adjuster in or
out 1/4 to 1/2 turn until the desired
brake adjustment is attained. Most
adjustments are complete at this
step. If brake still needs further
adjustment, proceed to step 2.

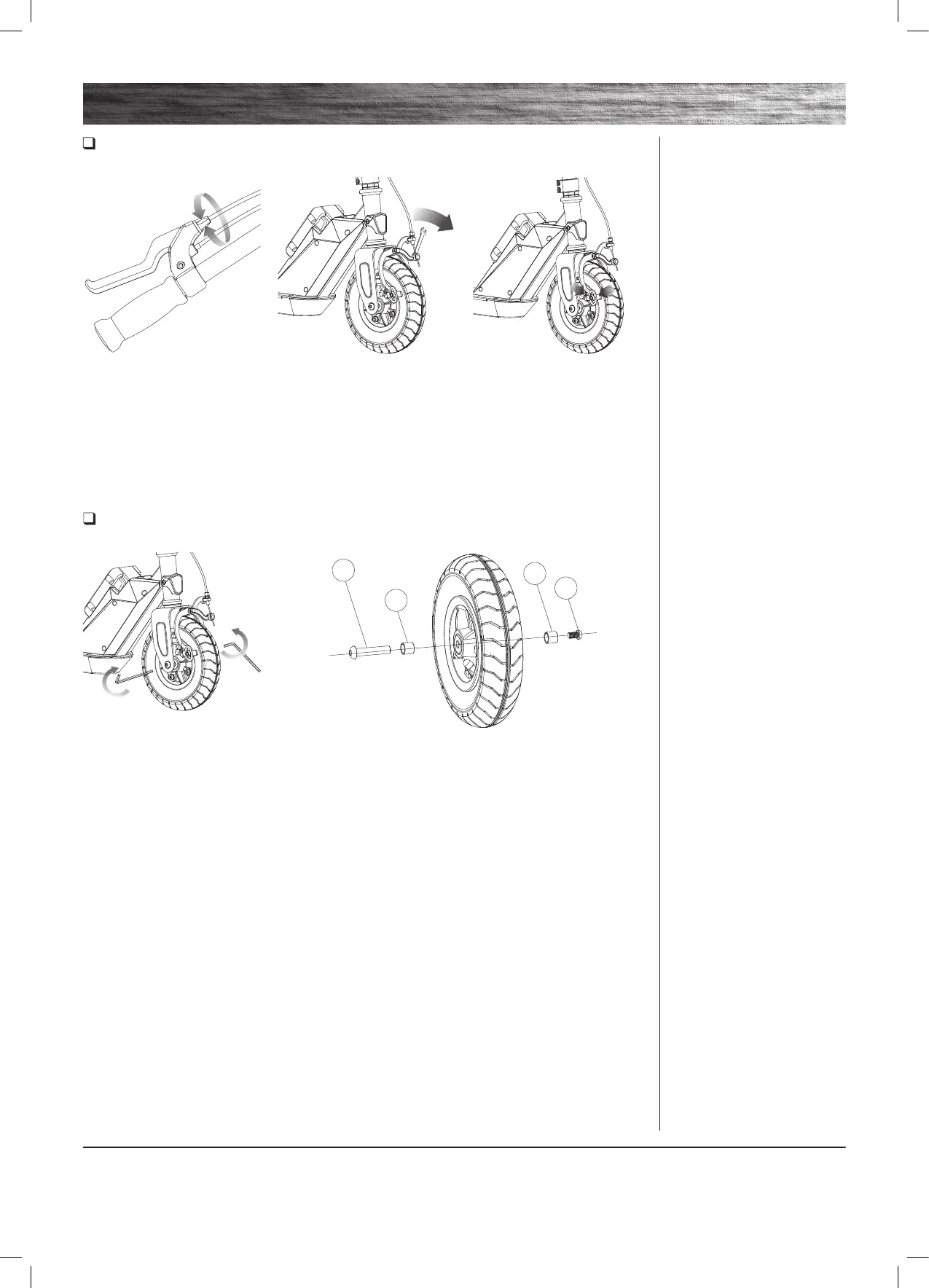

Adjusting the Brake
Required Tool: 10 mm Wrench (not included)
A
B
Front Tire Replacement
Required Tools: Two (2) 5 mm Allen Wrenches (not included)
Right Side (Throttle)
10-1 Coupling Bolt
10-2 Spacer
Left Side (Brake)
10-3 Spacer
10-4 Hex Bolt
Note: Front wheel
hardware sequence.
1 Using two (2) 5 mm Allen
wrenches, loosen the axle
bolt. Remove wheel and install
replacement wheel. (Note the
sequence of the hardware)
