1010
REPAIR AND MAINTENANCE

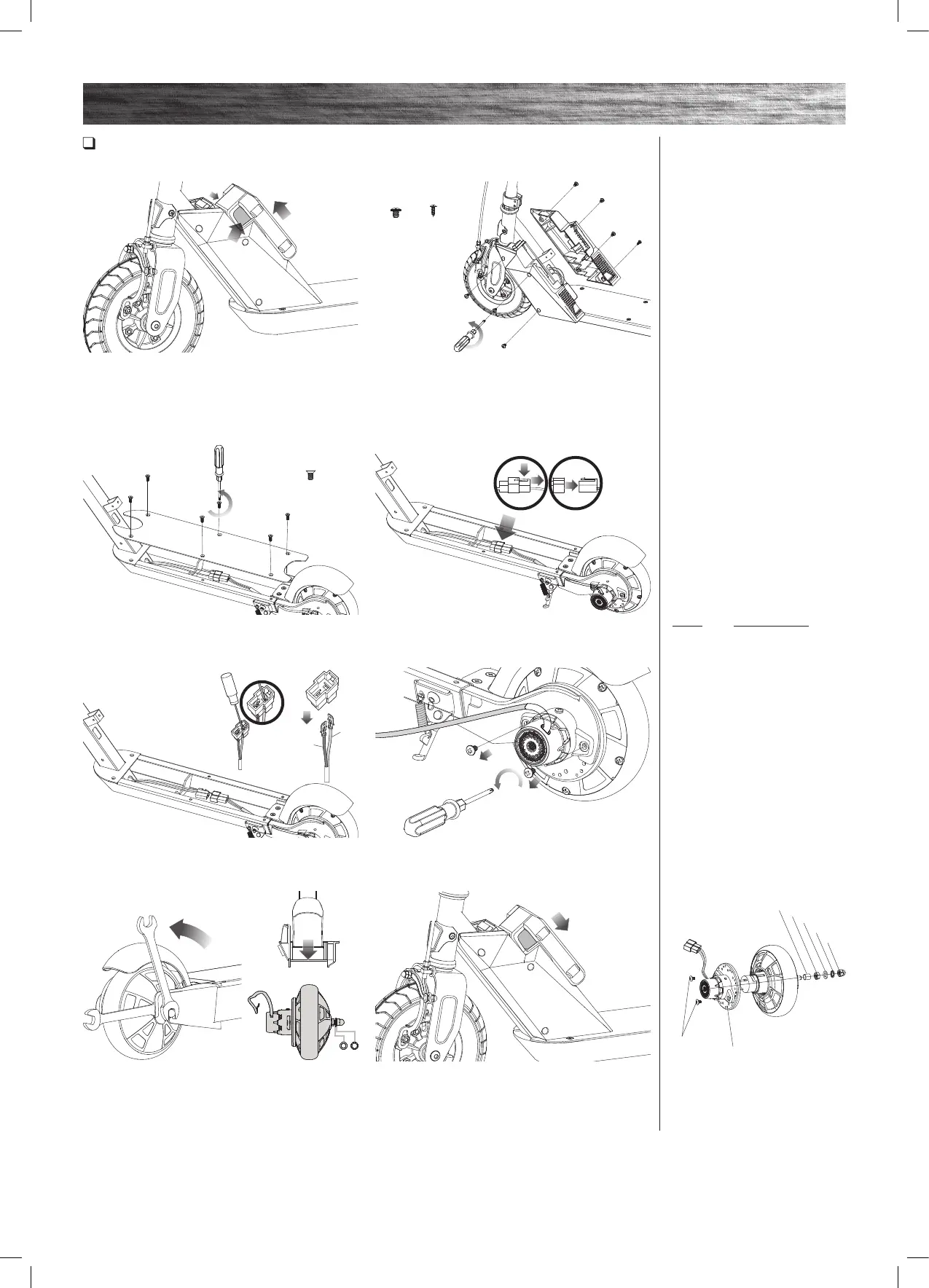

Rear Wheel/Hub Motor Replacement
Required Tools: Phillips Screwdriver and Two (2) 13 mm Wrenches (not included)
1 Release the two (2) side buttons and push out the
battery from the battery dock.
3 Using a Phillips screwdriver remove six (6) screws
and remove the deck plate.
5 Remove motor cable wires from connector using
an awl.
7 Using a 13 mm wrench, loosen the outside locknut
while using another 13 mm wrench to prevent the inside
nut from turning. Remove wheel/hub motor.
2 Using a Phillips screwdriver remove seven (7) screws
and remove the battery dock cover.
Note: There are two (2) sizes of screws,
A-Flat, B-Pointed
4 Disconnect motor cables.
6 Remove two (2) motor housing screws using a
Phillips screwdriver.
8 To install the replacement wheel/hub motor, reverse
steps 1-7.
A x 6
C x 6
A
A
A
A
A
A
B
B x 1
Black
Red
12-1
12-2
12-3
12-4
12-5
12-6
12-7
Left Side
12-1 Phillips Screws
12-2 Motor Housing
Right Side
12-3 Spacer
12-4 Nut
Frame
12-5 Flat Washer
12-6 Lock Washer
12-7 Locknut
Note: Rear wheel
hardware sequence.
Note:
Motor Control Module
Red
1
Blue
Black
1
Brown
Note: When re-inserting the motor
wires into the connector, make sure
the red wire connects to the blue
wire and the black wire connects to
the brown wire.
C
C
C
C
C
C
Kobalt_LowesSMU_US_MAN_200812.indd 10Kobalt_LowesSMU_US_MAN_200812.indd 10 8/12/20 1:10 PM8/12/20 1:10 PM
