UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc.
Page 16 of 25
RAM Memory
The static ram memory holds the database from the host (capable of handling 50k cards) that is
downloaded using Axiom software. The coin cell provides power to the memory as well as the real time
clock.
Power Input / Output
Located on the top right corner of the board is a jumper that selects if the power terminals are to be
used to supply power or provide power. Select “OUT” when using a POE supply and require 13.8V @
500ma for other equipment.
When not using POE, the jumper should be set to “IN”.
The UNC100 controller requires 13.8VDC to be supplied from an external source. (Note: Although the
unit can run on 12VDC, you will need 13.8VDC to be able to charge backup batteries.

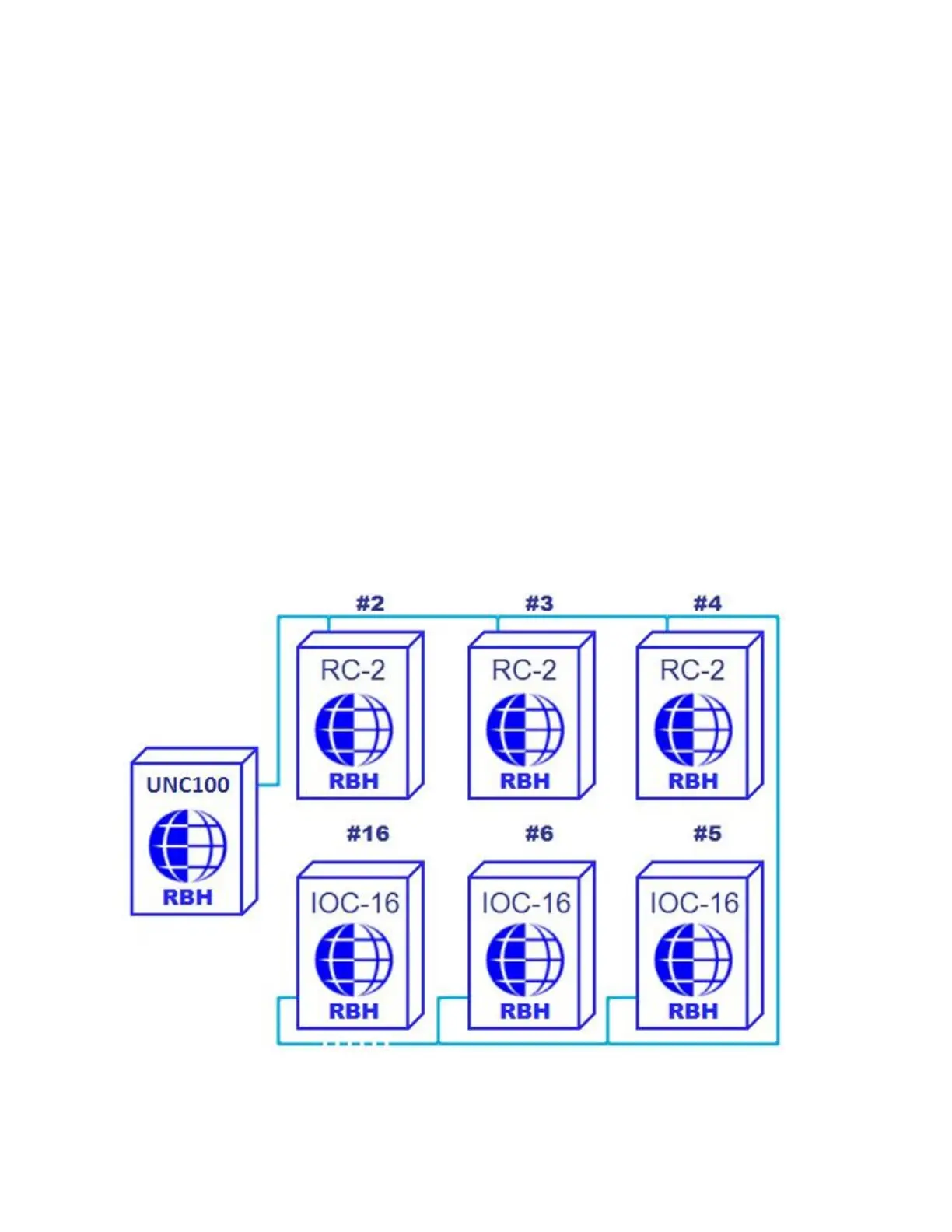

D-NET Device Network
Up to four RC-2 reader controllers (The UNC100 is configured for 1, then you can connect 3 physical
RC2s), and up to sixteen IOC-16 input/output controllers, may be connected to each network controller
in the UNC-NET using high speed RS485 communications.
D-NET (Device Network)
