CONTROL METHODS HeatNet Control V3
Page 47
DHW Method 4b: Space Heating with DHW Override of Setpoint on Master,
using a DHW 10K Tank Sensor

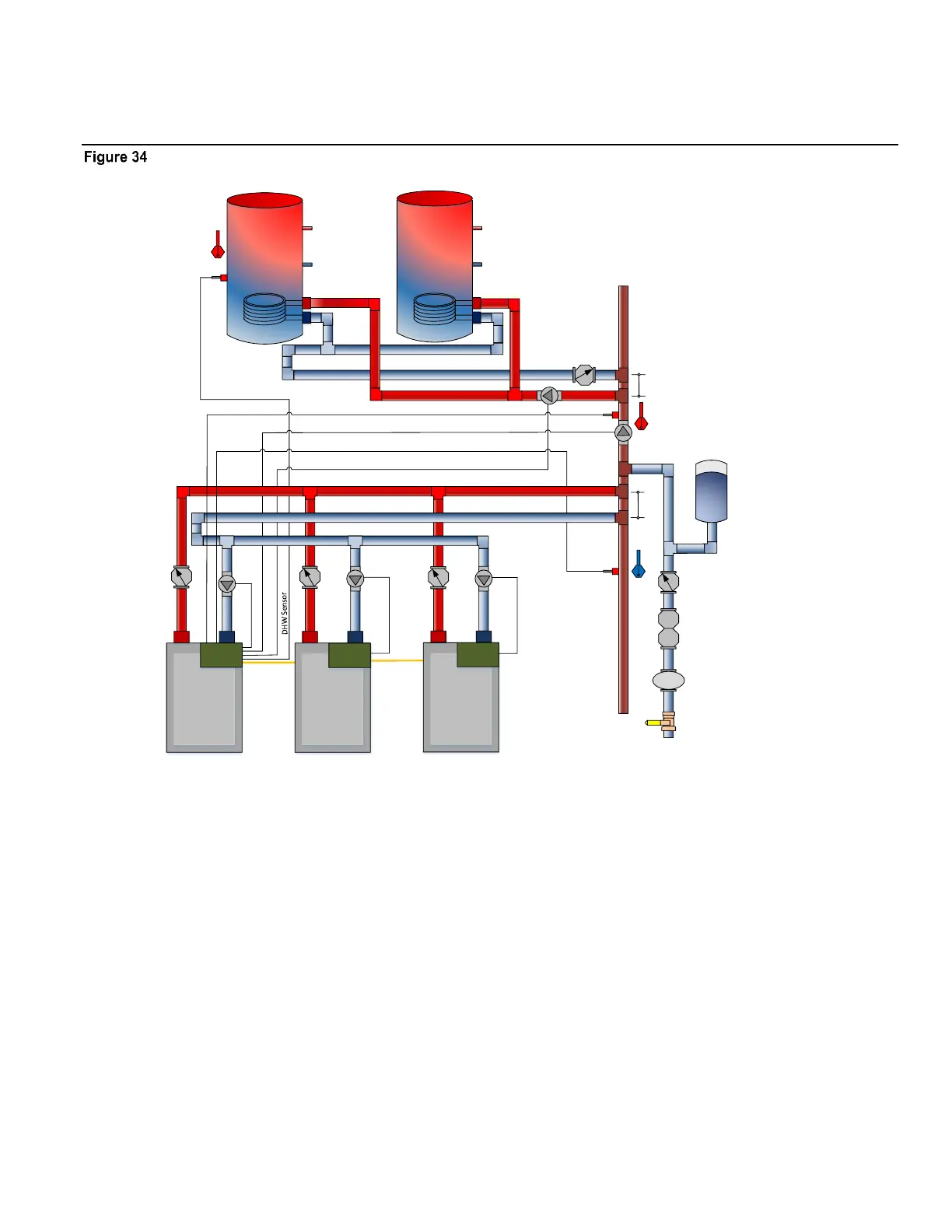

Example: DHW Method 4b: Space Heating with DHW Override of Setpoint on Master, using a DHW Sensor, Primary
Secondary, Reverse Return.
DHW METHOD 4b: Space Heating with DHW Override of Setpoint on Master, using a DHW Sensor, Primary
Secondary, Reverse Return
In DHW METHOD 4b, the Master’s Heat Demand input enables space heating by energizing the system pump and maintaining
the Heating Setpoint at the Master’s System Header Sensor. The Master’s OR OVR input is jumped to enable DHW heating using
the DHW tank sensor. When the DHW tank temperature drops, a DHW heat demand is generated, and the system loop
temperature is overridden with the DHW Setpoint. They system pump continues to run, and the DHW pump is enabled to supply
heat to the tanks until the DHW tank is satisfied.
Boilers are staged to meet the active setpoint based on their runtime, and each boiler will enable its local pump when it is running.
The Master modulates the boilers in order to maintain the active setpoint.
