SCREEN DESCRIPTIONS HeatNet Control V3

Page 85

Home Screen

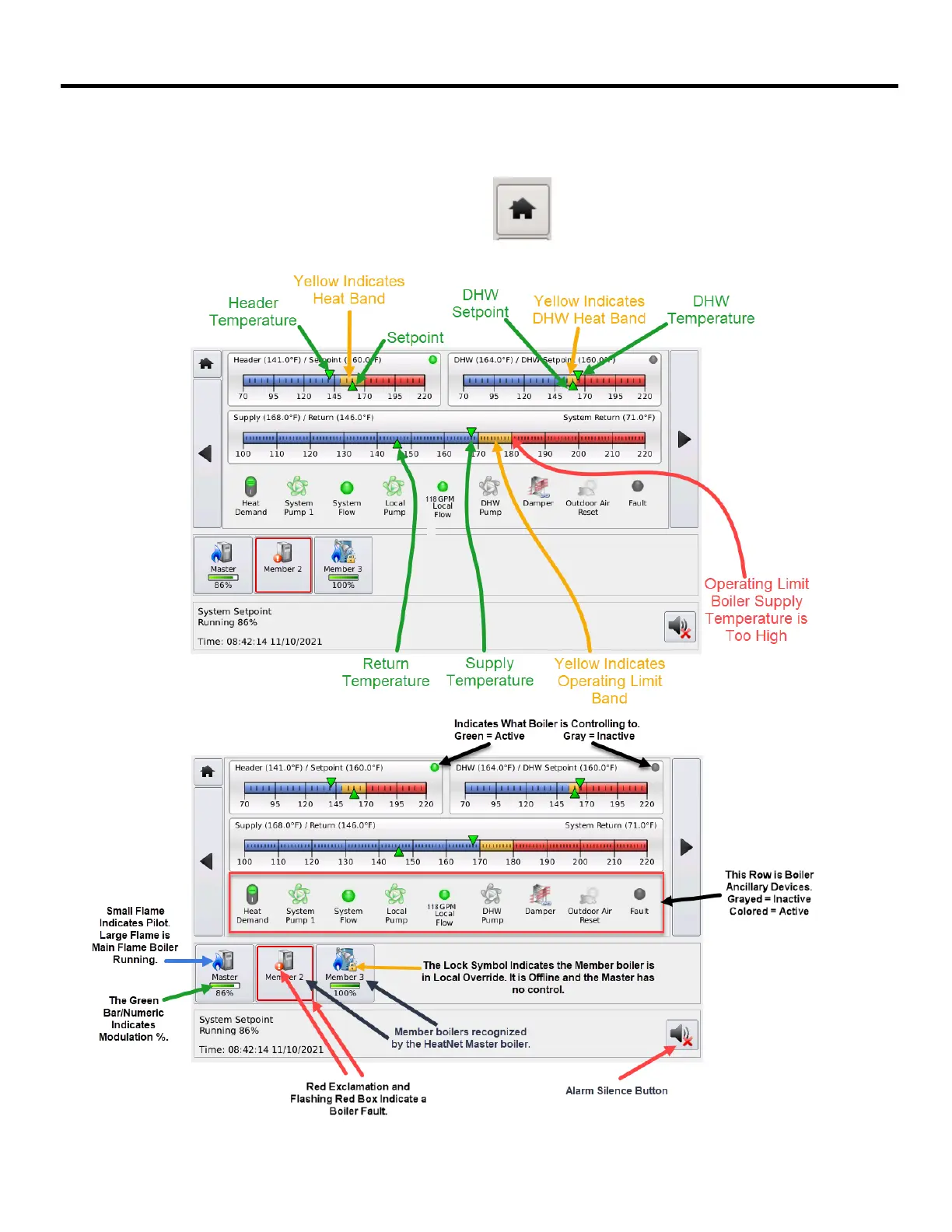

The Home screen is used to show the main temperatures in graphs along with some ancillary functions.

The Home Button in the upper left corner when pressed, will always enter the Home screen.
