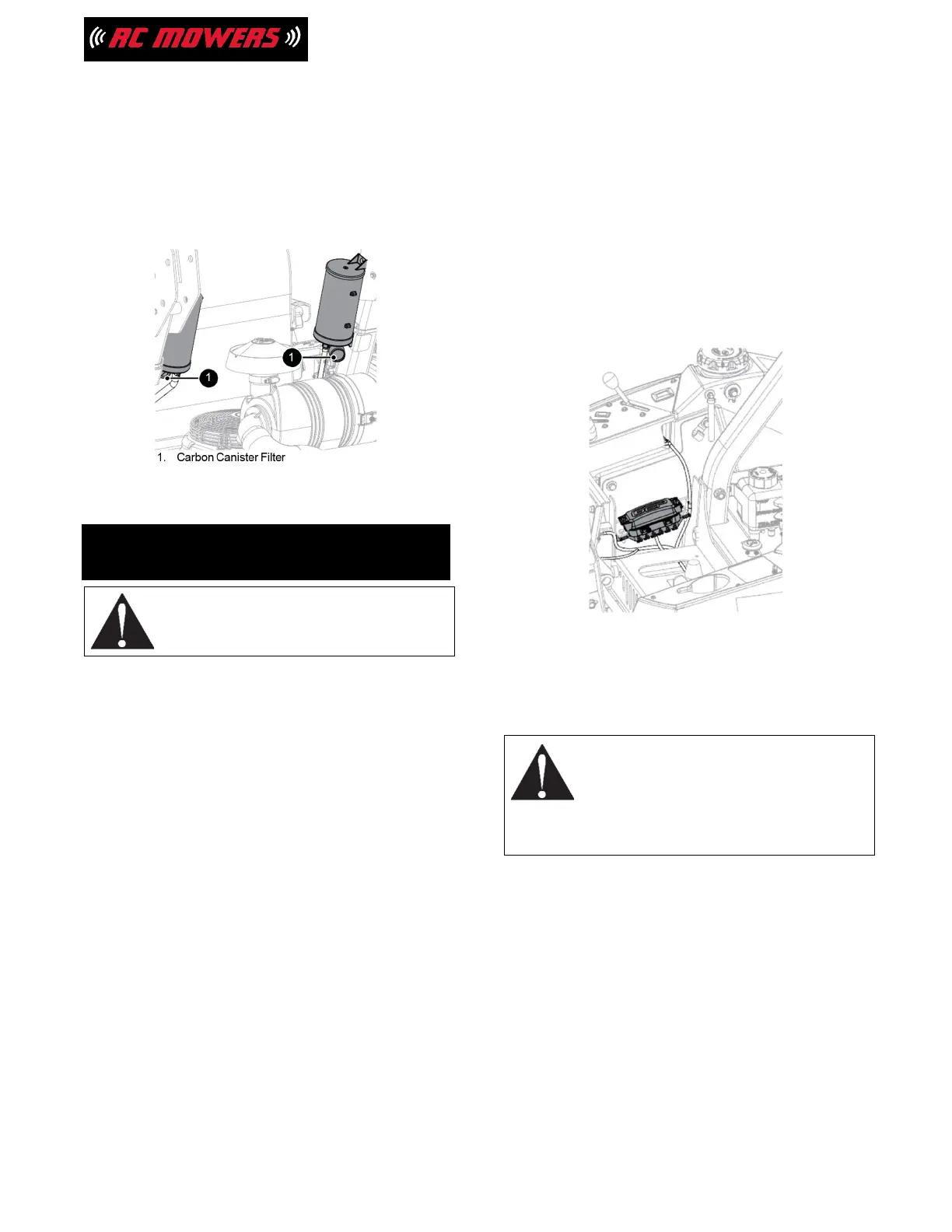

CHECK CARBON CANISTER
FILTERS
Carb Models
See Figure 22.
Clean or replace carbon canister filters
whenever the
engine air filter is cleaned or replaced.
Figure 22
SERVICE AND
ADJUSTMENTS
WARNING: Avoid Injury
Read and understand the
Safety
section before
proceeding.
ELECTRICAL SERVICE
See Figure 23.
Replace Fuse
IMPORTANT: To avoid damaging the circuit, replace
fuses with fuses of the same amperage rating.
Determine the cause of electrical failure and repair
before replacing failed electrical components.
1. Place unit in service position. See Service
Position on page 17.
2. Remove defective fuse.
3. Determine cause of fuse failure and
repair
condition.
4. Install new fuse.
Replace Relay
NOTICE: Relays are interchangeable. Use only
quality replacement parts. See Service
Parts on
page 18.
1. Place unit in service position. See Service
Position on page 17.
2. Remove defective relay.
3. Determine cause of relay failure and repair
condition.
4. Install new relay.
Figure 23
ADJUST TRANSAXLES
Check for Excessive Creep
WARNING: Avoid Injury
This adjustment requires operating the
engine. Use extreme care to avoid
contact with moving parts and hot
surfaces. Be sure unit is well supported
and secure before starting engine.
1. Operate unit for a minimum of 5 minutes to
warm hydraulic system.
2. Stop engine and engage parking brake.
3. Support unit so both tracks are off the
ground. Do not lift machine. See Service
Position on page 17. Use drive pin/sprocket
removal process.
4. Start engine, move throttle lever to fast
position and release parking brake.
5. Move steering joystick forward and
backward 5 or 6 times and then return to
neutral position.
23
