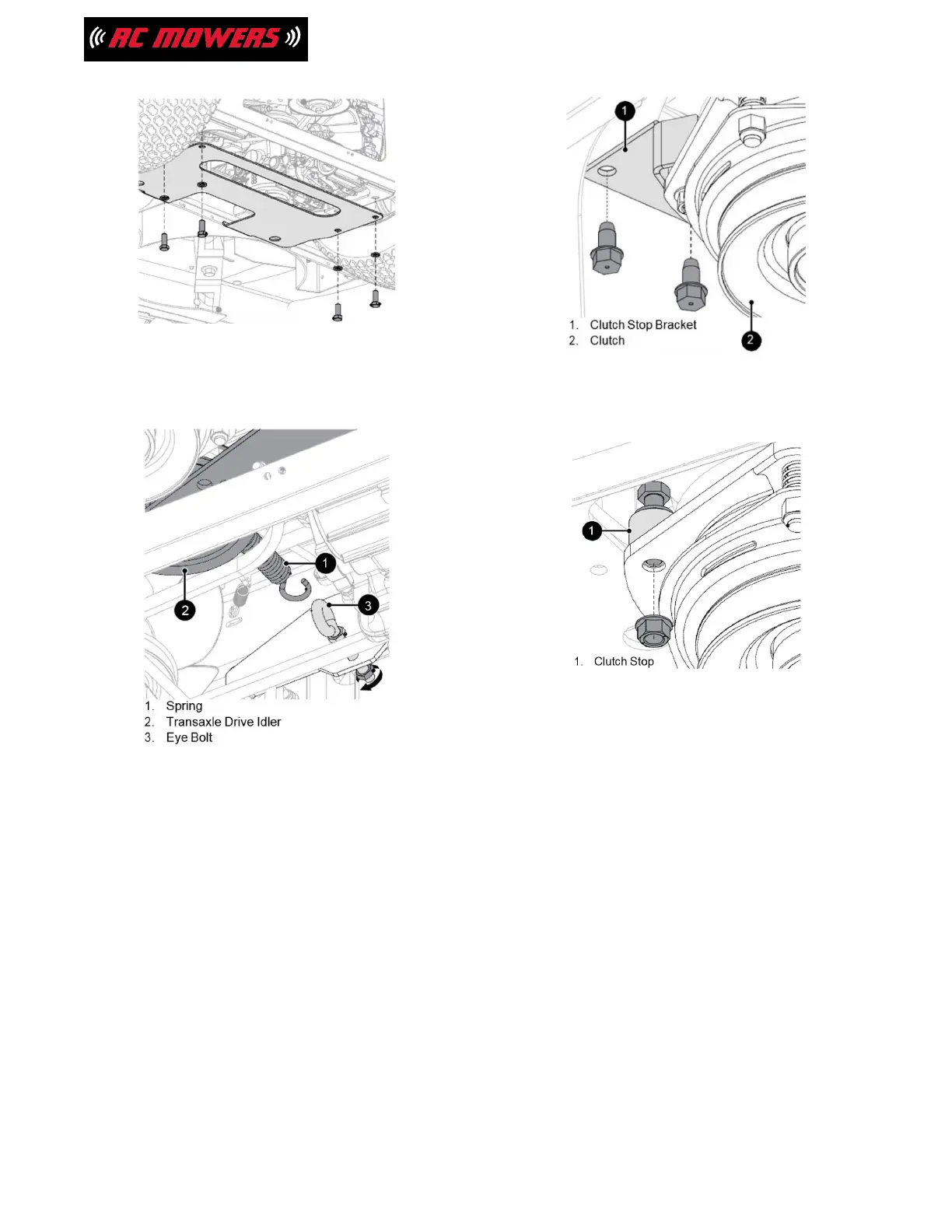

Figure 35
4. Loosen nut on each eye bolt and disconnect
idler arm spring. (See Figure 36.)
Figure 36
5. Remove hardware securing clutch stop
bracket to frame and remove bracket.
(See Figure 37.)
Figure 37
6. Remove clutch stop. (See Figure 38.)
Figure 38
7. Remove transaxle drive belt from drive
system in the following order:
a. From right transaxle sheave.
b. From left transaxle sheave.
c. From engine sheave.
Install Transaxle Drive Belt
See Figure 39.
1. Install transaxle drive belt to drive system
in
the following order:
a. Around left transaxle sheave.
b. Around engine sheave.
c. Around right transaxle sheave.
2. Align belt with idler pulley.
3. Reconnect idler arm spring to eye bolt
and
secure bolt to unit with nut.
NOTE: A short length of rope or cable folded to
make a loop may be helpful to pull the end of a
spring when reinstalling springs.
28
