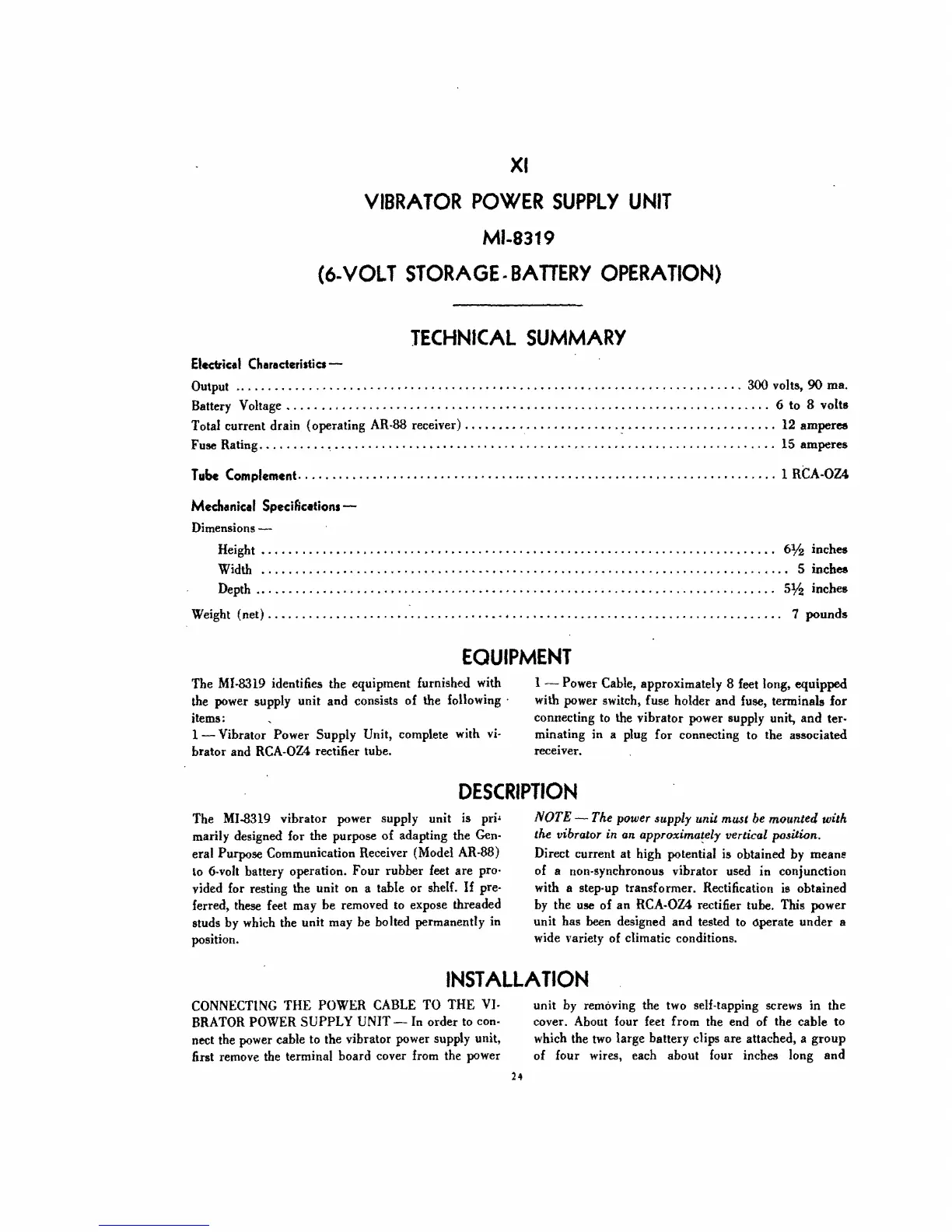

RCA AR-88

XI
VIBRATOR POWER SUPPLY UNIT
MI-8319
(6-VOLT STORAGE.BATIERY OPERATION)
TECHNICAL SUMMARY
Electrical Characteristics-
Output .......................................•................................... 300 volts, 90 ma.
Battery Voltage . . . . . . . . . . . . . . . . . . . . . .
• . . . . . . . . . • . . • . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 6 to 8 volts
Total current drain (operating AR·sg receiver) ....••.•............•.. : ........ , ..... , .. , .... 12 amperes
Fuse Rating ...... , ... , .................................. ' ., ....................... , ., .. 15 amperes
Tube Complement . ..................................................... , . '" ............ 1 RCA·OZ4
Mechanical Specifications-
Dimensions -
Height '" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 6% inches
Width
...............................•..••..................•....................... 5 inches
Depth ...........•...............•.......•...........•............................ , 5% inches
Weight (net)
...................................•...................................... " 7 pounds
EOUIPMENT
The MI·8319 identifies the equipment furnished with
the
power supply unit and consists of the following'
items:
1 - Vibrator Power Supply Unit, complete with vi·
brator and RCA·OZ4 rectifier tube.
I
- Power Cable, approximately 8 feet long. equipped
with power switch, fuse holder and fuse, terminals for
connecting
to the vibrator power supply unit, and ter·
minating in a plug for connecting to the associated
receiver.
DESCRIPTION
The MI-8319 vibrator power supply unit is pri'
marily designed for the purpose of adapting the Gen·
eral Purpose Communication Receiver (Model AR·88)
to 6-volt battery operation. Four rubber feet are pro·
vided for resting the unit on a table or shelf. If pre-
ferred, these feet may be removed to expose threaded
studs by which the unit may
be bolted permanently in
position.
NOTE - The power supply unit must be mounted with
the vibrator in an appToxima~ely vertical position.
Direct current at high potential is obtained by mean!!
of a non·synchronous vibrator used in conjunction
with a
step·up transformer. Rectification is obtained
by the use of an RCA·OZ4 rectifier tube. This power
unit has been designed and tested
to operate under a
wide variety of climatic conditions.
INST ALLA TION
CONNECTING THE POWER CABLE TO THE VI-
BRATOR POWER SUPPLY UNIT -In order to con-
nect the power cable to the vibrator power supply unit,
first remove the
terminal hoard cover from the power
24
unit by removing the two self-tapping screws in the
cover. About four feet from the end of the cable to
which the
two large battery clips are attached, a group
of four wires, each about four inches long and
