13
Be sure to complete all other
connections before connecting
this unit to the AC power source.
LR
LR
RL
L
B
R
SURROUND
SPEAKERS
FRONT
SPEAKERS
AC OUTLET
PCM / 2 / DTS
DIGITAL IN
TO
MONTOR
TV
VCR /
DVR
CONTROL
IN
AUX
CD
IN
IN IN OUT
OUT
CD - R
/ TAPE
/ MD
SURROUND
CENTER
SUB
WOOFER
SUB
WOOFER
PREOUT
IN
IN
IN
IN
IN
TV /
SAT
DVD
/ LD
CENTER
PREOUT
COAX OPT1 OPT2
O
U
T
R
E
C
P
L
A
Y
OUT
FM
UNBAL
75Ω
AM LOOP
ANTENNA
FM
ANTENNA
DVD 5.1 CH
INPUT
LR
CENTER
SPEAKER
FRONT
SPEAKERS
INPUT
Front Speakers (A)
Center Speaker
SURROUND
Speakers
Powered sub woofer
LR
C
SRSL
When using the speaker on your TV as the center speaker,
connect the CENTER PREOUT jack on this unit to the audio
input jack on your TV. In this case, the center speaker shown is
unnecessary.

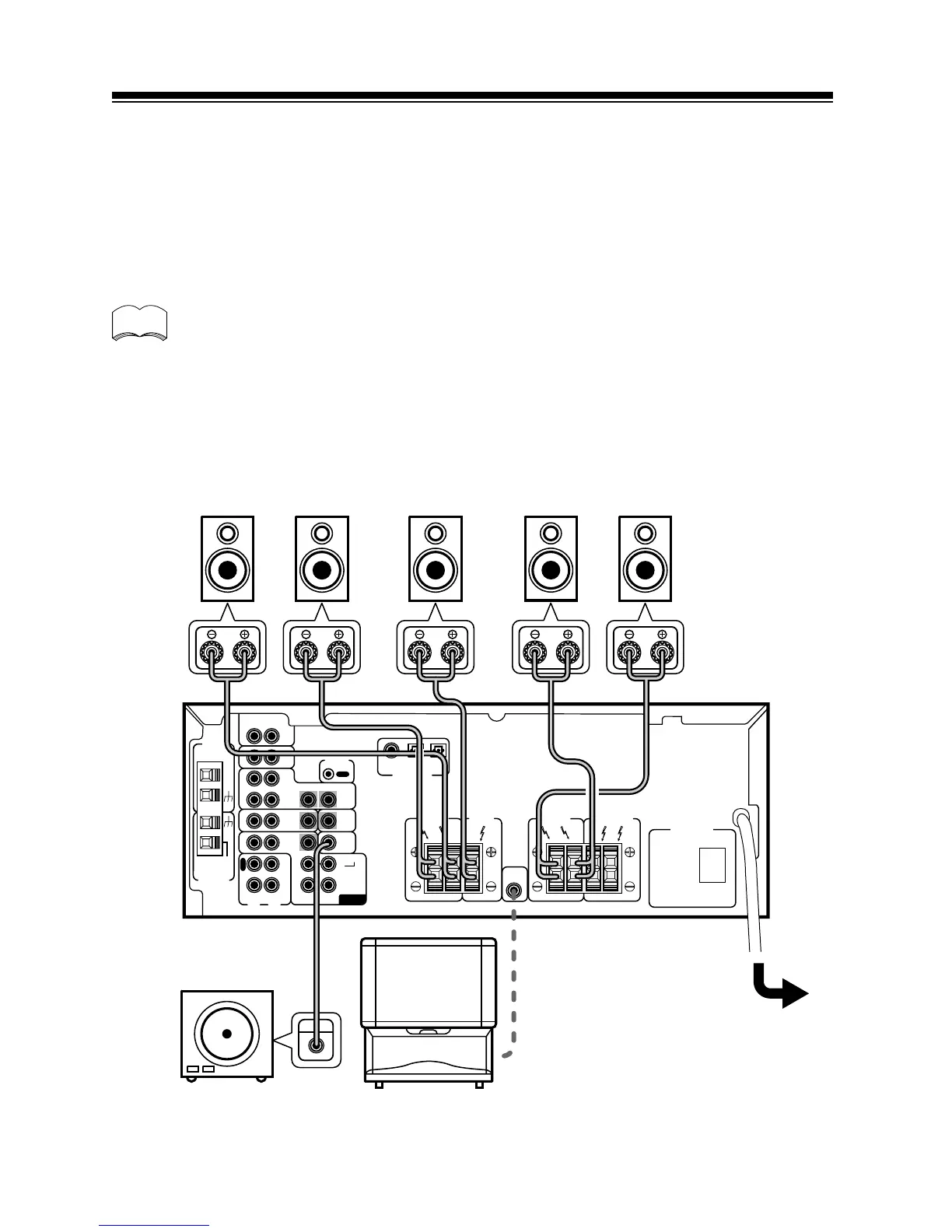

CONNECTING SPEAKERS
A full complement of six speakers is shown here but, naturally, everyone’s home setup will vary. Simply
connect the speakers you have in the manner described below. The receiver will work with just two stereo
speakers (called “front” speakers in the diagram) but it is recommended to be used with at least three
speakers.
Make sure you connect the speaker on the right to the right terminal and the speaker on the left to the left
terminal. Also make sure the positive and negative (+/–) terminals on the receiver match those on the
speakers.
memo
The receiver has two speaker systems, A & B. A is the main system supporting the full
complement of surround sound speakers. If you switch on both A & B speaker systems, only
front speakers and the sub-woofer will be audible. No sound will come from the center or
surround speakers but multi channel sources will be down-mixed to the active speakers so no
sound will be lost. Similarly, if you choose just the B system you‘ll only hear from the front
speakers connected to the B system and multi channel sources will be down-mixed to these
two speakers. Please use speakers rated between 6 W - 16 W.
