RCA RPJ104 User Manual

Connect HDMI Show The Image On Projector Screen

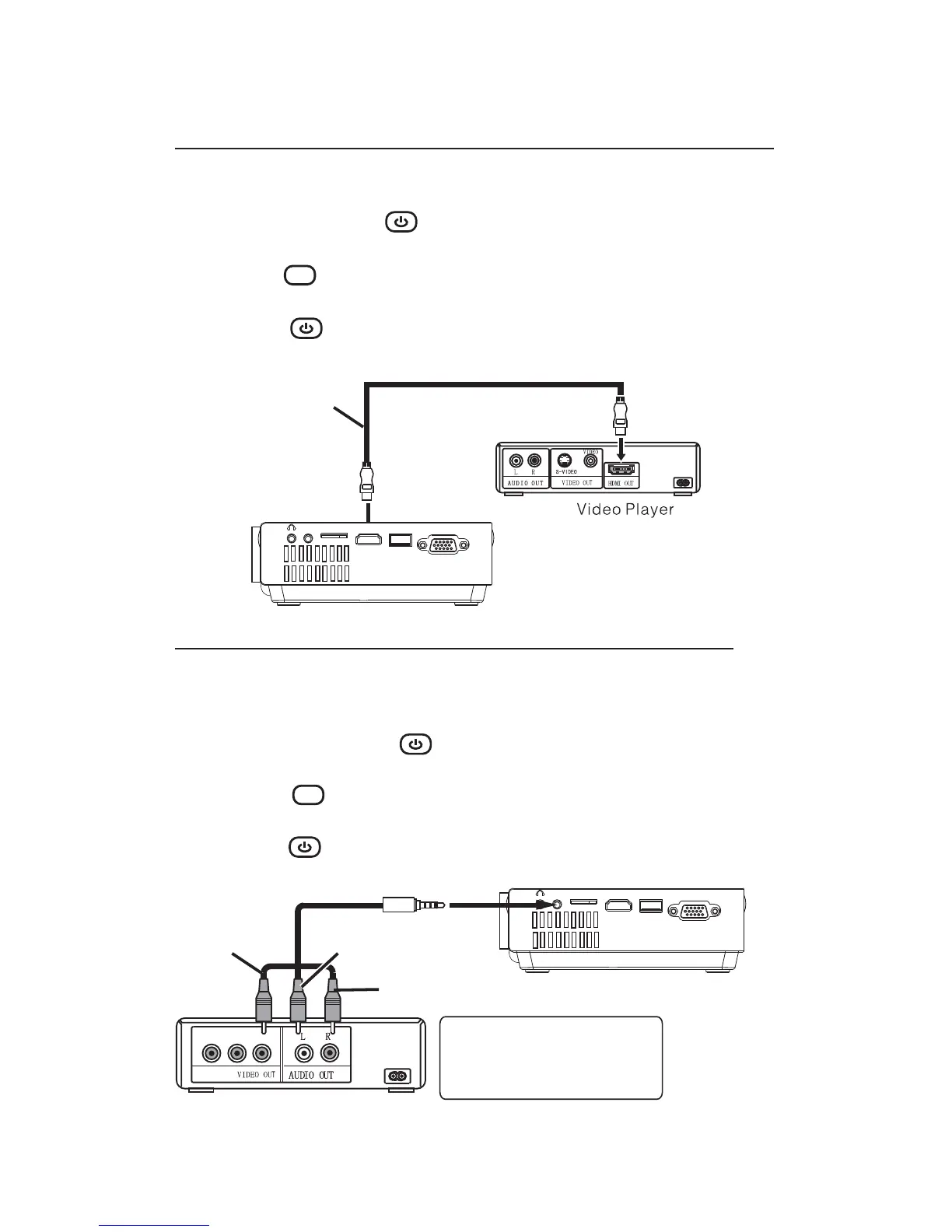

Follow below picture to connect HDMI cable and device.
1. Turn off the unit before connect HDMI cable.
2. Aer connect, press the buon to turn on unit and power indicator will
light GREEN
3. Press the / SOURCE buon to HDMI mode and the video of HDMI
device will show on projector screen.
4. Press the button to turn off unit power.
Connect AV
Show The Image On Projector Screen
Follow below picture to connect AV cable and device.
1. Turn off the unit before connect AV cable.
2. Use AV cable to connect follow below figure
3. After connect, press the button to turn on unit and power indicator will
light GREEN
4. Press the / SOURCE button to AV mode and the video of AV device
will show on projector screen
5. Press the button to turn off unit power.
11
HDMI CABLE
AV
HDMI
USB
VGA
TF
CABLE NOT INCLUDE
LEFT CHANNEL
RIGHT CHANNEL
VIDEO CABLE
VIDEO PLAYER
VIDEO CABLE : YELLOW
AUDIO LEFT CHANNEL : WHITE
AUDIO RIGHT CHANNEL : RED
AV
HDMI
USB
VGA
TF
CABLE NOT INCLUDE
S
S

RCA RPJ104 Specifications

General

Brand	RCA
Model	RPJ104
Category	Projector
Language	English
