RCA RPJ104

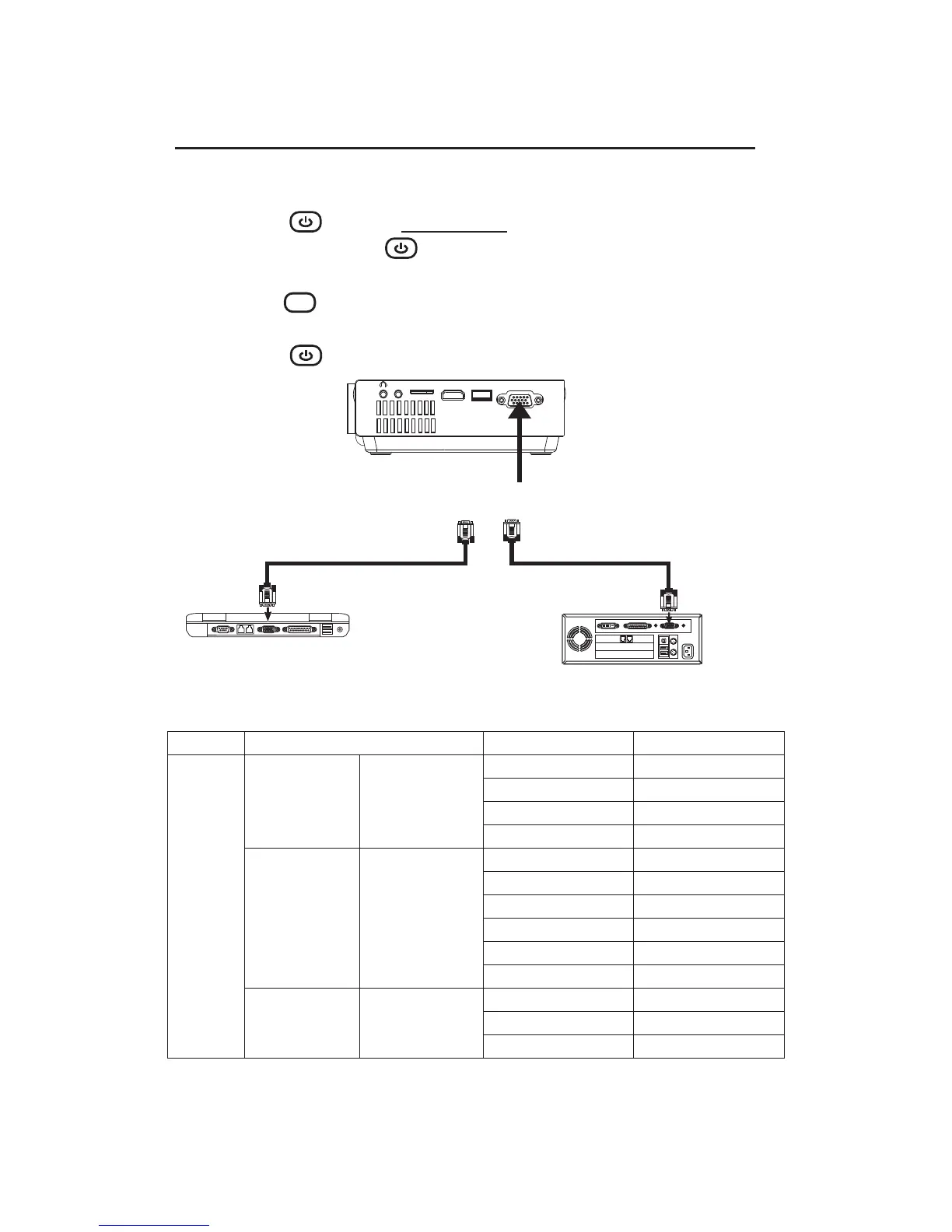

Connect VGA Show The Image On Projector Screen
Follow below picture to connect HDMI cable and device.
1. Turn off the unit before connect VGA cable.
2. Press the button to turn off power of your projector before connection.
3. Aer connect, press the buon to turn on unit and power indicator will
light GREEN
4. Press the / SOURCE buon to VGA mode and the video of VGA device
will show on projector screen.
5. Press the button to turn off unit power.
Please refer to the following table to adjust the output signal from computer
Type Resoluon Frequency Field Frequency
PC
VGA 640x480
31.5 60
34.7 70
37.9 72
37.5 75
SVGA 800x600
31.4 50
35.1 56
37.9 60
46.6 70
48.1 72
46.9 75
XGA 1024x768
40.3 50
48.4 60
56.5 70
12
To VGA PORT
NOTE BOOK
DECK TOP
OR
COMPUTER CABLECOMPUTER CABLE
AV
HDMI
USB
VGA
TF
CABLE NOT INCLUDE
S
