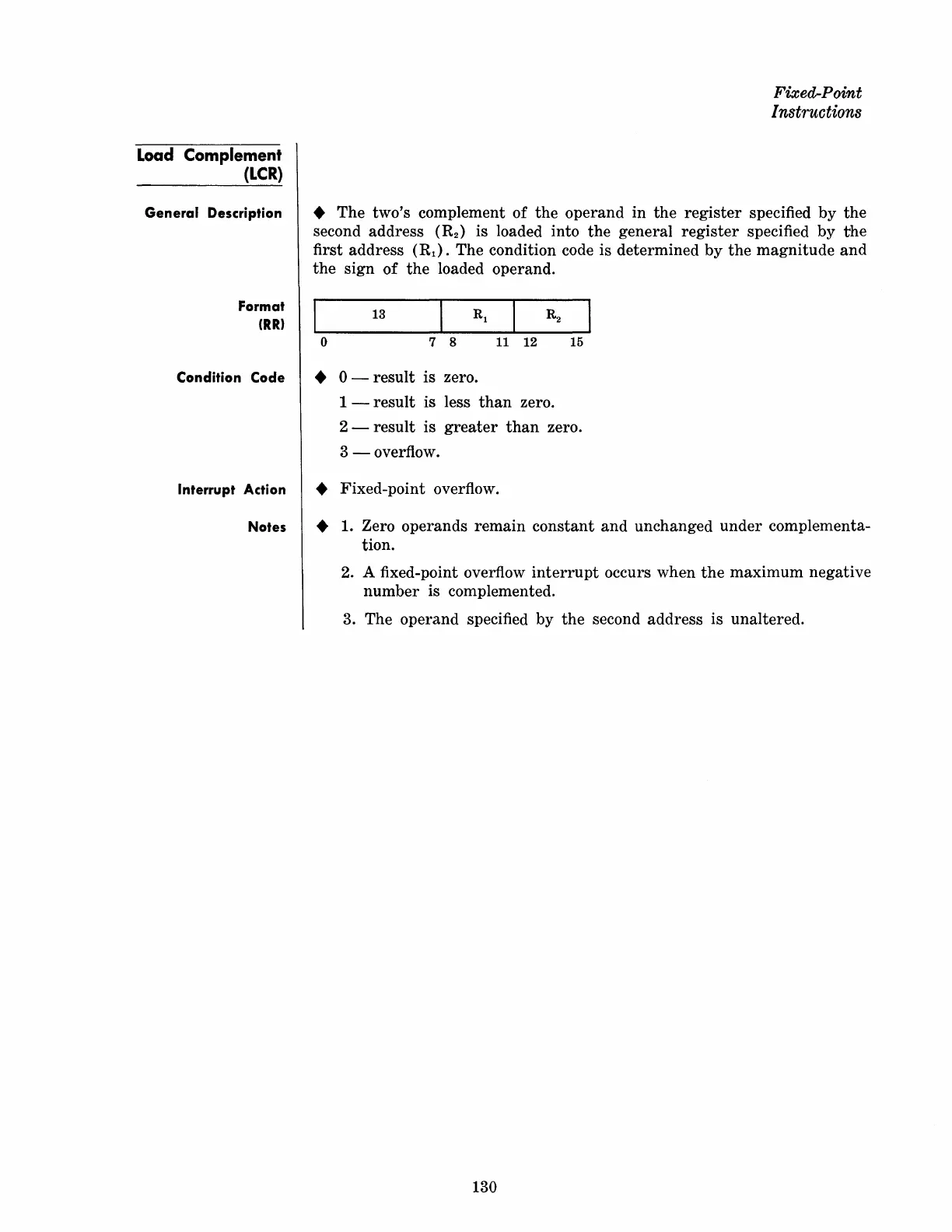

Load Complement
(LCR)
General Description
Format
(RR)
Condition Code
Interrupt Action
Notes
Fixed-Point
Instructions
• The two's complement of the operand in the register specified by the
second address (R
2
)
is loaded into the general register specified by the
first address (R
1
). The condition code is determined by the magnitude and
the sign of the loaded operand.
o
7 8 11 12 15
• 0 - result is zero.
1 -
result is less than zero.
2 -
result is greater than zero.
3 - overflow.
• Fixed-point overflow.
• 1. Zero operands remain constant and unchanged under complementa-
tion.
2. A fixed-point overflow
interrupt occurs when the maximum negative
number is complemented.
3. The operand specified by
the second address is unaltered.
130
