RCA Spectra 70 - Dual Processor Complex

DUAL·PROCESSOR
COMPLEX
PROCESSOR # 1
STATIC
IN
STATIC OUT
EXT S IGNAL
IN
SI GNA
LOUT
PFIR
PFNo
HOLD IN
WRITE OUT
CABLE
CONNECTS
TO oCT2
Multi-Processor Installation

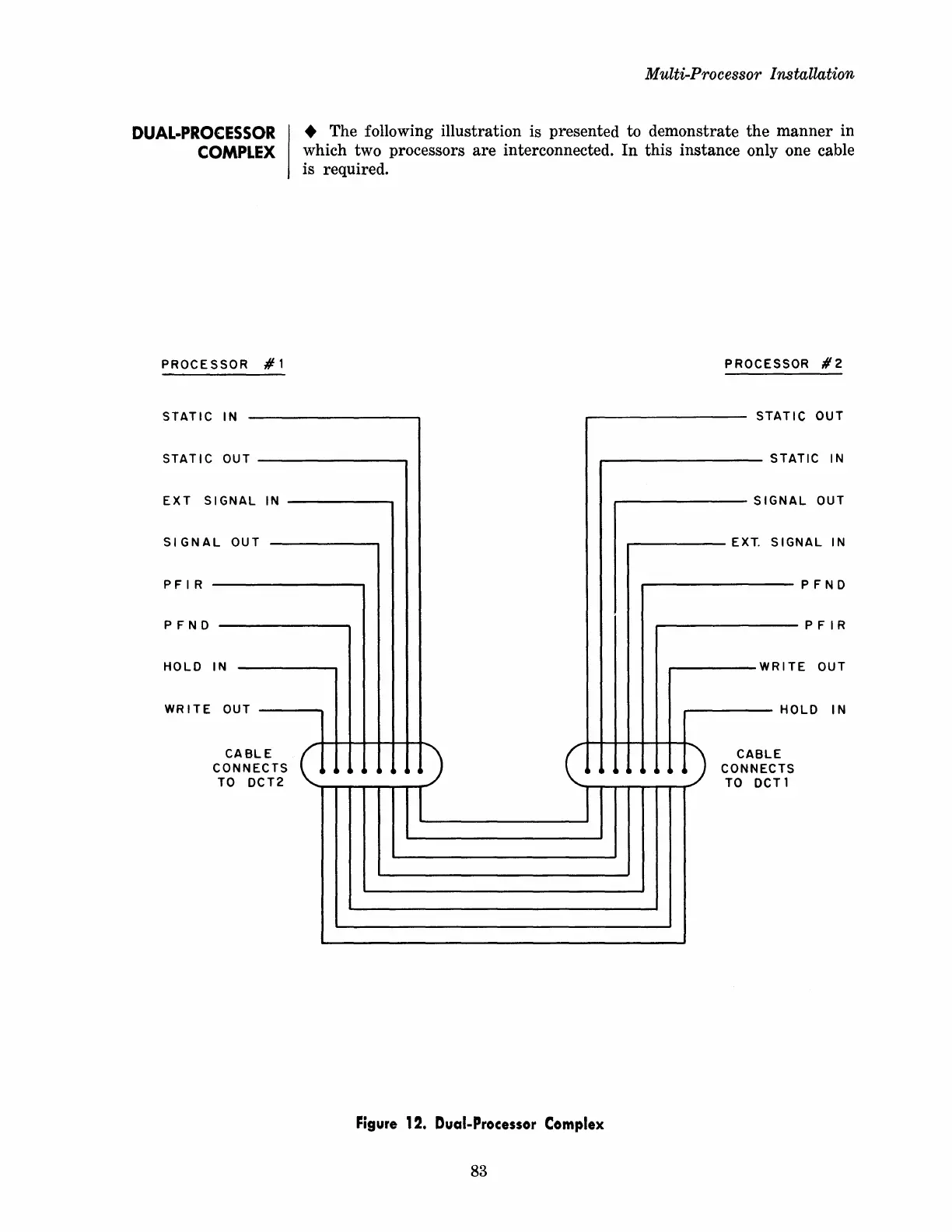

• The following illustration is presented to demonstrate the manner in
which two processors
are interconnected. In this instance only one cable
is required.
PROCESSOR #2
TI STA C OUT
STA TIC IN
SIGNA LOUT
EXT. SIG NAL IN
PFNo
P FIR
WRIT
E OUT
HO Lo IN
CABLE
CONNECTS
TO OCT 1
Figure 12. Dual-Processor Complex
83
